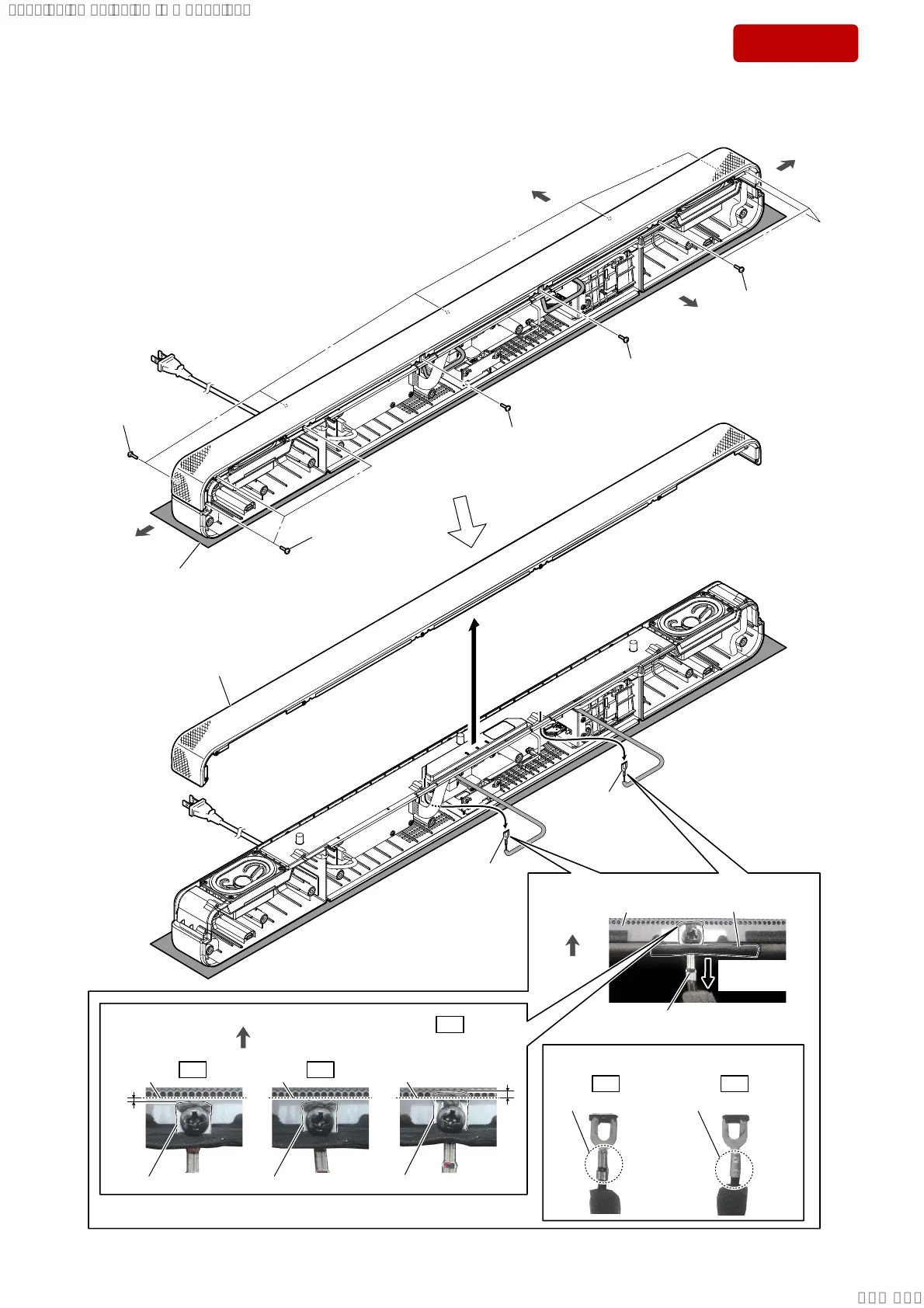

2-8. GRILLE ASSY
top side
bottom side
left side
right side
1 five screws
(BTP3 u 10)
1 three screws
(BTP3 u 10)
1 screw
(BTP3 u 10)
1 three screws
(BTP3 u 10)
1 screw
(BTP3 u 10)
soft cloth, etc.
Note:
When working with the side other than
the bottom side facing downward, lay
a soft cloth, etc. so as not to damage.
2
wire with
lug terminal
3
4
grille assy
2
wire with
lug terminal
OK NG
,QVWDOODWLRQGLUHFWLRQIRUWKHOXJWHUPLQDO
–7RSYLHZ–
Caulking is upward. Caulking is downward.
:LUHZLWKOXJWHUPLQDOVHWWLQJ
wire with
lug terminal
–7RSYLHZ–
grille assy
front side
lug terminal
direction
cushion
OK OK
NG
–7RSYLHZ–
front side
lug terminal
lug terminal
lug terminal
guide lineguide line guide line
The lug terminal
is protruding.
SYSSET
