43
HT-S350/SD35
Sony CONFIDENTIAL
For Authorized Servicer

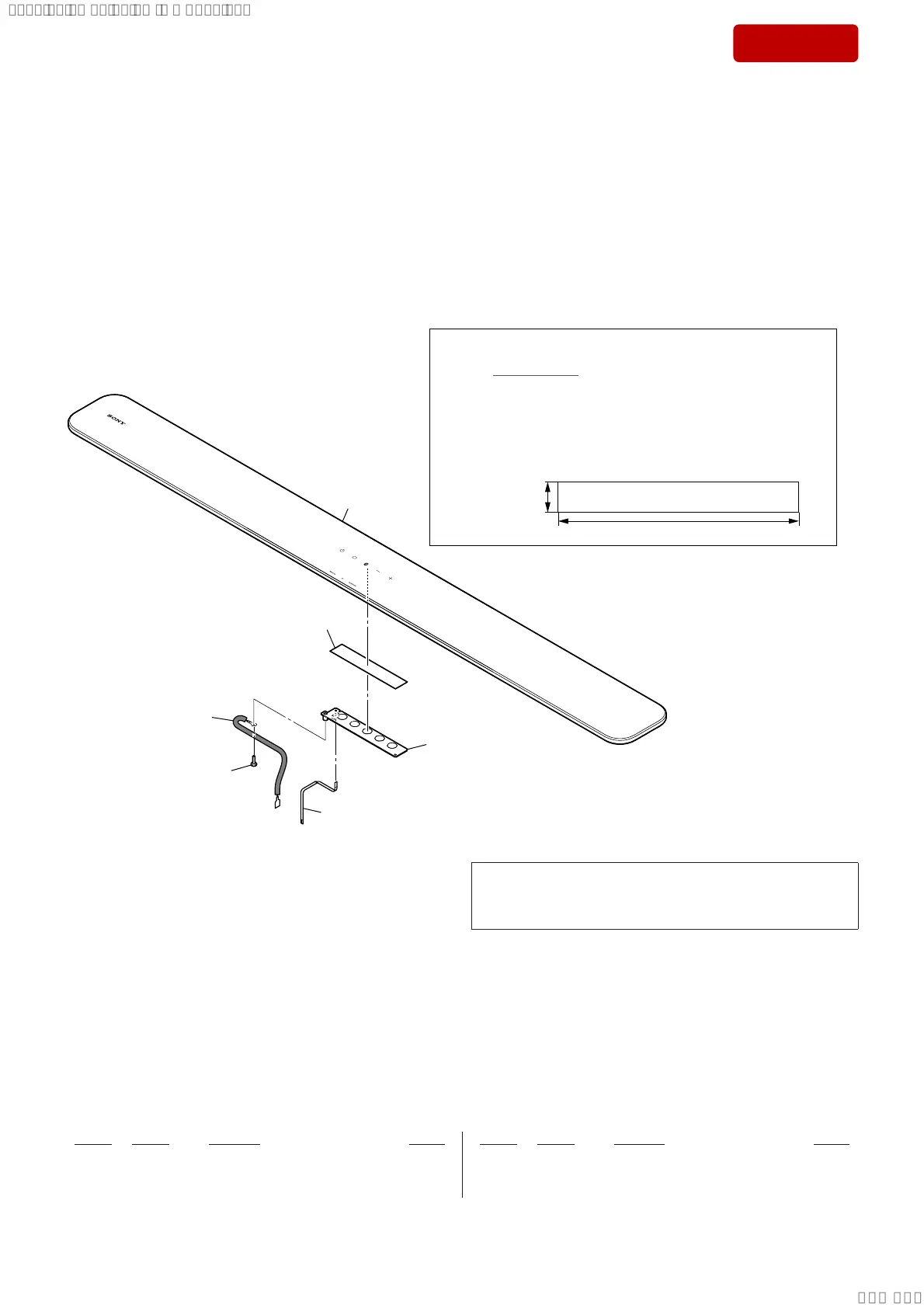

5-2. TOP PANEL SECTION
52
not supplied
105.0 mm
19.0 mm
Note 1:
When installing the TOUCH KEY board to the top panel, cut out
the double-sided tape (thickness: 0.2 mm) of commercial products
to 19.0
u
105.0 mm size and paste it on the TOUCH KEY board,
then install the TOUCH KEY board to the top panel.
Also, when installing the TOUCH KEY board, firmly press the
TOUCH KEY board to the top panel, and paste it so that there no
gap between the TOUCH KEY board and the top panel.
(Refer to “DOUBLE-SIDED TAPE OF THE TOUCH KEY BOARD”
on page 8)
51
(See Note 1)
FFC3
(See Note 2)
not supplied
(See Note 1)
53
Note 2: As for FFC KIT (CA1_BAR), all fl exible fl at cables (Ref. No.
FFC1, FFC2, FFC3, FFC4) will be 1 set. If FFC KIT (CA1_BAR)
is replaced, install it after bending it in the same form as that be-
fore replacement.
51 930100037 TOUCH KEY BOARD, COMPLETE
(without Adhesive tape) (See Note 1)
52 930100004 TOP PANEL CA1 BAR
53 930100142 SCREW +BM 2.5X6
FFC3 930100063 FFC KIT (CA1_BAR) (6 core, L = 138 mm)
(See Note 2)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
SYSSET
2019/02/1301:27:25(GMT+09:00)
To Next Page
