HT
-S350/SD35
25
Sony CONFIDENTIAL
For Authorized Servicer
SECTION 4
DIAGRAMS
4-1.

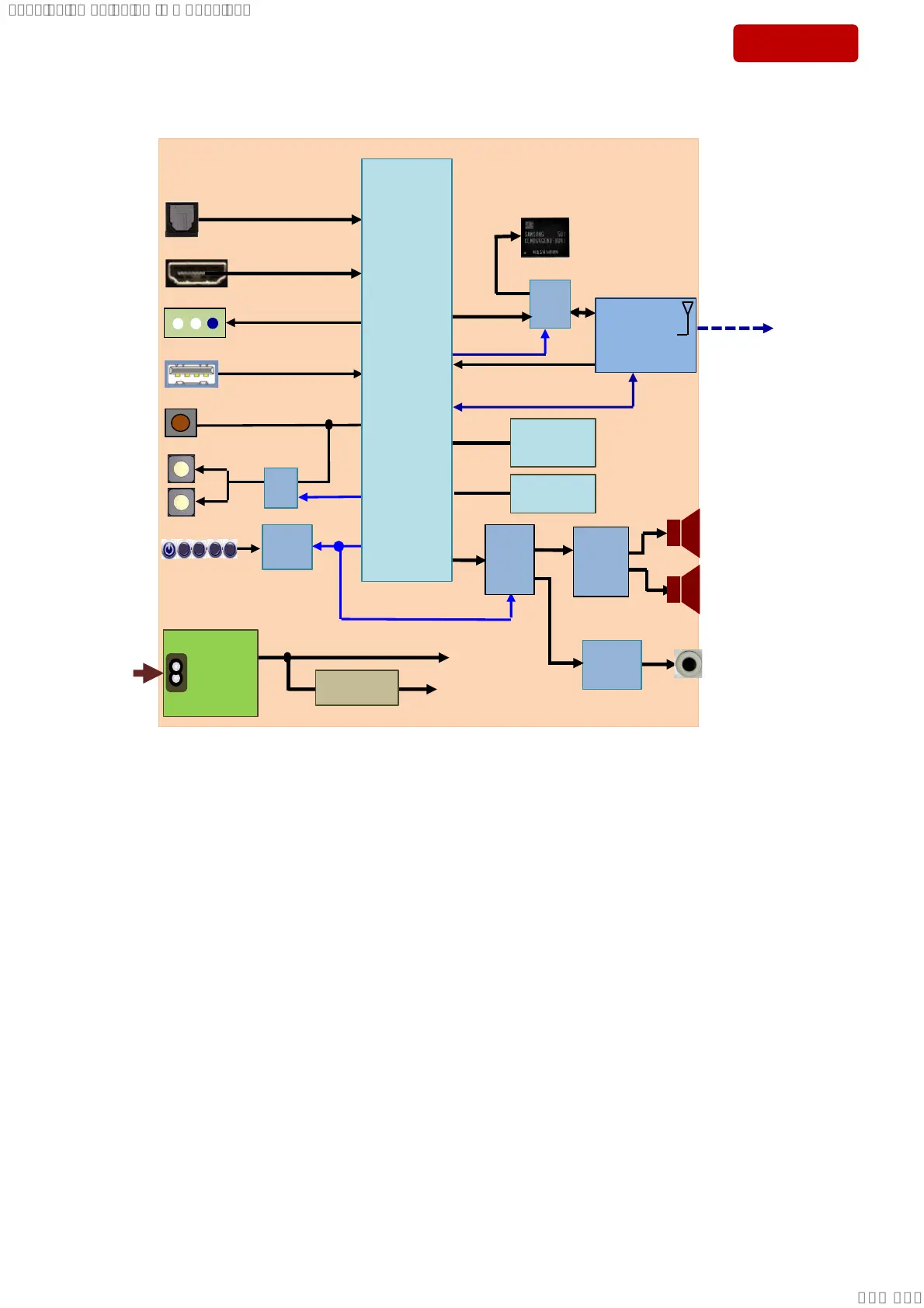

BLOCK DIAGRAM
5 Key
s
SPDIF
Subwoofer
HDMI Tx
(ARC)
Vcc
(5V, 3.3V, …)
Vdc
(+24V)
SMPS
# 1
LED x 3
Soundbar
SPDIF
(Optical)
Regulators
I2S
Touch
IC
USB
(Program
& Demo)
IR In
IR Out
Mono Audio Out
3.5
݊
3 pins
(Audio Out & W
IRE_ON)
LPF
(OP)
IR_Tx
IR_Rx
UART
I2C
SPDIF
ARC
Serial Flash
SDRAM
AC
Input
Mod
GPO
Mux
Demo Flash
(16 Mbits)
I2S
SPI
GPO
Audio
DSP
AMP
# 1
(BTL)
Audio
Proc
PW
M
BT Module
# 1
SYSSET
2019/02/1301:27:25(GMT+09:00)
24
26
Table of Contents
Sys Set
4
Table of Contents
4
Servicing Notes
5
Disassembly
9
Disassembly Flow
9
Top Panel Block
10
Wire with Lug Terminal, FFC (6 Core) (L=138 MM)
11
TOUCH KEY Board
12
BT Module
13
IR RP Board
13
AC Cord
14
Grille Assy
15
Speaker Unit
16
LED Board
17
Chassis Block-1
18
Chassis Block-2
19
Chassis Block-3
20
MAIN Board-1
21
MAIN Board-2, FFC (6 Core) (L=161 MM)
22
POWER Board
23
Test Mode
24
Diagrams
25
Block Diagram
25
Printed Wiring Board - MAIN Board
27
Schematic Diagram - MAIN Board (1/9)
28
Schematic Diagram - MAIN Board (2/9)
29
Schematic Diagram - MAIN Board (3/9)
30
Schematic Diagram - MAIN Board (4/9)
31
Schematic Diagram - MAIN Board (5/9)
32
Schematic Diagram - MAIN Board (7/9)
33
Schematic Diagram - MAIN Board (6/9)
33
Schematic Diagram - MAIN Board (8/9)
34
Schematic Diagram - MAIN Board (9/9)
35
Printed Wiring Board - IR RP Board
37
Schematic Diagram - IR RP Board
37
Printed Wiring Board - LED Board
38
Schematic Diagram - LED Board
38
Printed Wiring Board - TOUCH KEY Board
39
Schematic Diagram - TOUCH KEY Board
39
Printed Wiring Board - POWER Board
40
Schematic Diagram - POWER Board
41
Exploded Views
42
Grille, Foot, AC Cord Section
42
Top Panel Section
43
Bottom Case Section
44
Chassis Section
45
Accessories
46
Sa-Ws350/Wsd35
50
Disassembly
55
Disassembly Flow
55
AMP Block
56
AC Cord
57
MAIN Board
58
POWER Board
59
KEY Board, Button
60
MINI JACK Board
61
BT Module (SW)
62
FFC Cable (6 Core), FFC Cable (12 Core)
63
LED Board, Front Panel Assy (CA1_SW)
64
Speaker Unit (CA1_SW)
65
Block Diagram
66
Diagrams
66
Printed Wiring Board - MAIN Board
68
Schematic Diagram - MAIN Board (1/4)
69
Schematic Diagram - MAIN Board (2/4)
70
Schematic Diagram - MAIN Board (3/4)
71
Schematic Diagram - MAIN Board (4/4)
71
Printed Wiring Board - MINI JACK Board
73
Schematic Diagram - MINI JACK Board
73
Printed Wiring Board - LED Board
74
Schematic Diagram - LED Board
74
Printed Wiring Board - KEY Board
75
Schematic Diagram - KEY Board
75
Printed Wiring Board - POWER Board
76
Schematic Diagram - POWER Board
77
Exploded Views
78
Speaker Section
78
AMP Section
79
