31
SA-WS350/WSD35
Sony CONFIDENTIAL
For Authorized Servicer

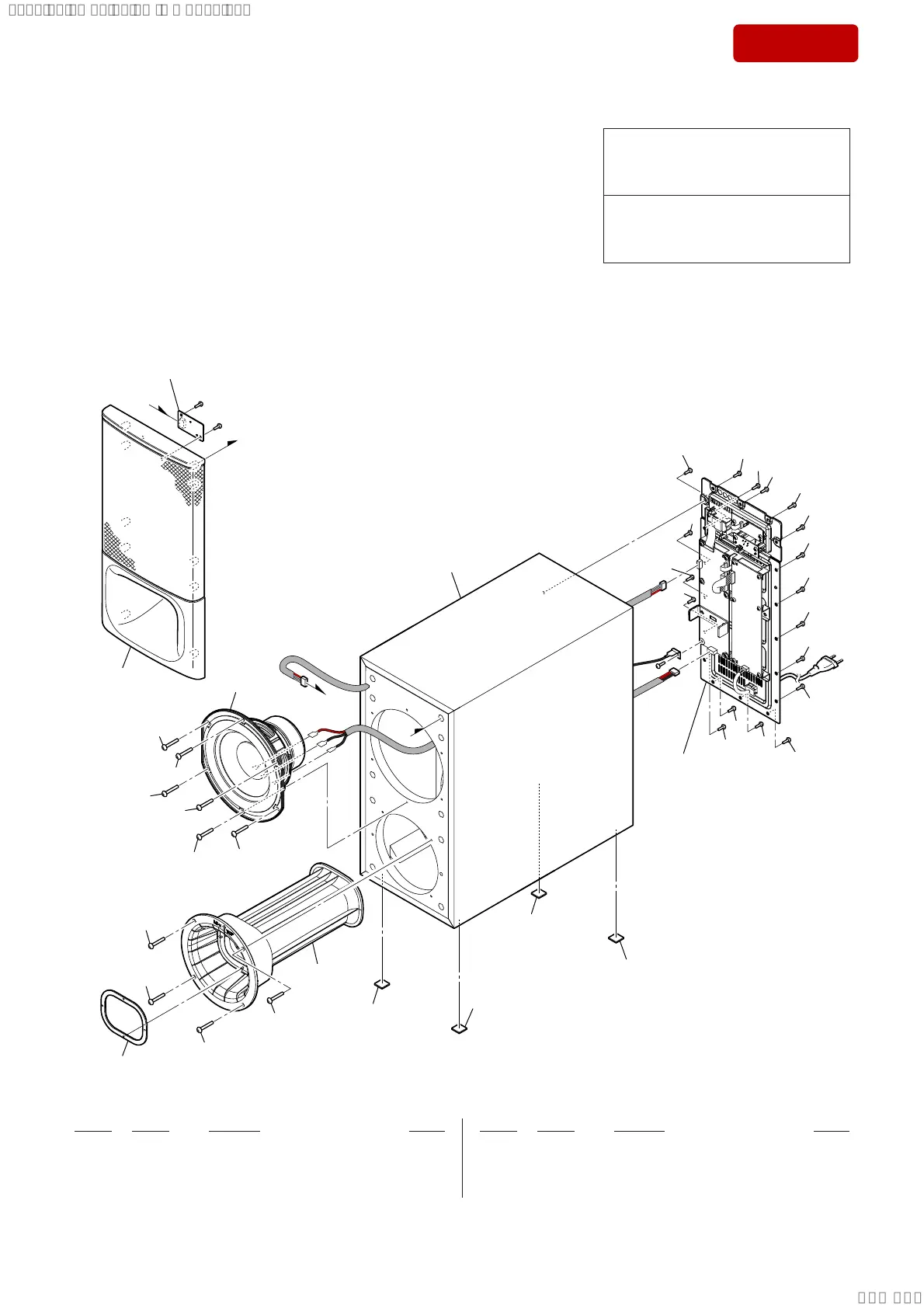

SECTION 4
EXPLODED VIEWS
1 423840812 SCREW (1) (4X25), +BV TAPPING
2 930100064 FRONT PANEL ASSY (CA1_SW)
3 930100068 LED BOARD, COMPLETE
4 422996602 SCREW (4X16), +BV TAPPING
SP1 930100065 SPEAKER UNIT (CA1_SW)
#1 768564679 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when or-
dering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Exam-
ple:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color
4-1. SPEAKER SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
1
2
3
1
1
1
1
1
1
1
1
1
4
4
4
4
4
4
4
4
4
4
4
4
4
4
not supplied
not supplied
not supplied
#1
#1
not supplied
not supplied
not supplied
A
A
B
B
AMP section
4
4
4
not supplied
SP1
#1
4
SYSSET
