SA-WS350/WSD35
SA-WS350/WSD35
29
Sony CONFIDENTIAL
For Authorized Servicer
3-13.

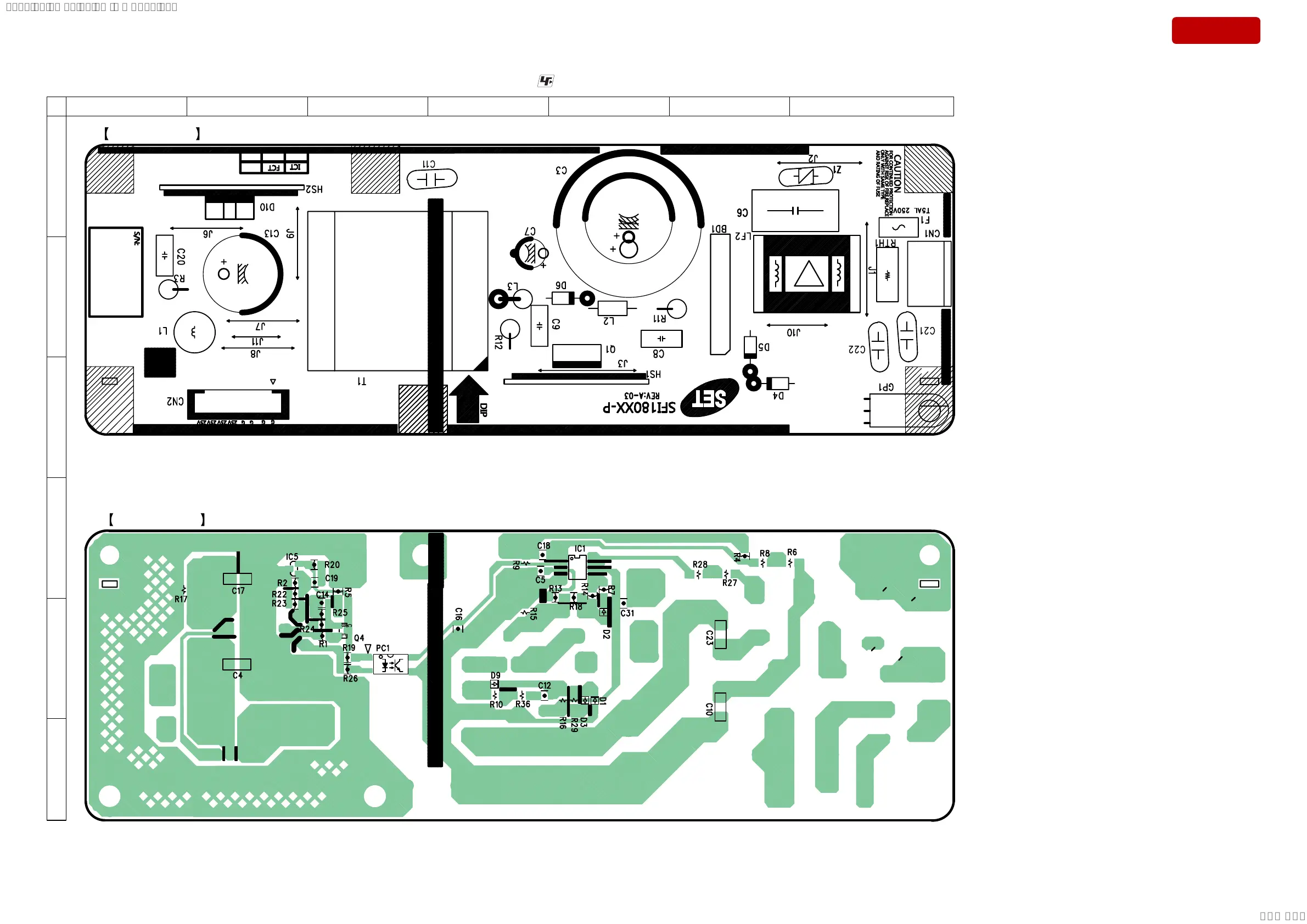

PRINTED WIRING BOARD - POWER Board -
•
: Uses unleaded solder
.
• See page 20 for Circuit Boards Location.
A
B
C
D
E
F
1
2
3
4
5
6
7
POWER BOARD
(COMPONENT SIDE)
POWER BOARD
(CONDUCTOR SIDE)
SYSSET
2019/02/1301:37:00(GMT+09:00)
75
77
Table of Contents
Sys Set
4
Table of Contents
4
Servicing Notes
5
Disassembly
9
Disassembly Flow
9
Top Panel Block
10
Wire with Lug Terminal, FFC (6 Core) (L=138 MM)
11
TOUCH KEY Board
12
BT Module
13
IR RP Board
13
AC Cord
14
Grille Assy
15
Speaker Unit
16
LED Board
17
Chassis Block-1
18
Chassis Block-2
19
Chassis Block-3
20
MAIN Board-1
21
MAIN Board-2, FFC (6 Core) (L=161 MM)
22
POWER Board
23
Test Mode
24
Diagrams
25
Block Diagram
25
Printed Wiring Board - MAIN Board
27
Schematic Diagram - MAIN Board (1/9)
28
Schematic Diagram - MAIN Board (2/9)
29
Schematic Diagram - MAIN Board (3/9)
30
Schematic Diagram - MAIN Board (4/9)
31
Schematic Diagram - MAIN Board (5/9)
32
Schematic Diagram - MAIN Board (7/9)
33
Schematic Diagram - MAIN Board (6/9)
33
Schematic Diagram - MAIN Board (8/9)
34
Schematic Diagram - MAIN Board (9/9)
35
Printed Wiring Board - IR RP Board
37
Schematic Diagram - IR RP Board
37
Printed Wiring Board - LED Board
38
Schematic Diagram - LED Board
38
Printed Wiring Board - TOUCH KEY Board
39
Schematic Diagram - TOUCH KEY Board
39
Printed Wiring Board - POWER Board
40
Schematic Diagram - POWER Board
41
Exploded Views
42
Grille, Foot, AC Cord Section
42
Top Panel Section
43
Bottom Case Section
44
Chassis Section
45
Accessories
46
Sa-Ws350/Wsd35
50
Disassembly
55
Disassembly Flow
55
AMP Block
56
AC Cord
57
MAIN Board
58
POWER Board
59
KEY Board, Button
60
MINI JACK Board
61
BT Module (SW)
62
FFC Cable (6 Core), FFC Cable (12 Core)
63
LED Board, Front Panel Assy (CA1_SW)
64
Speaker Unit (CA1_SW)
65
Block Diagram
66
Diagrams
66
Printed Wiring Board - MAIN Board
68
Schematic Diagram - MAIN Board (1/4)
69
Schematic Diagram - MAIN Board (2/4)
70
Schematic Diagram - MAIN Board (3/4)
71
Schematic Diagram - MAIN Board (4/4)
71
Printed Wiring Board - MINI JACK Board
73
Schematic Diagram - MINI JACK Board
73
Printed Wiring Board - LED Board
74
Schematic Diagram - LED Board
74
Printed Wiring Board - KEY Board
75
Schematic Diagram - KEY Board
75
Printed Wiring Board - POWER Board
76
Schematic Diagram - POWER Board
77
Exploded Views
78
Speaker Section
78
AMP Section
79
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Sony SA-S350 and is the answer not in the manual?
Ask a question
Sony SA-S350 Specifications
General
Brand
Sony
Model
SA-S350
Category
Speaker System
Language
English
Related product manuals
Sony SA-SC8
16 pages
Sony SA-D20
2 pages
Sony SA-ST9
94 pages
Sony SA-VA15
21 pages
Sony SA-VA55
15 pages
Sony SA-CT780
78 pages
Sony SA-VE215
10 pages
Sony SA-CT381
72 pages
Sony SA-CT770
74 pages
Sony SA-CT800
68 pages
Sony SA-TS22W
28 pages
Sony SA-32SE1
20 pages
