Sony SA-S350 - FFC Cable (6 Core), FFC Cable (12 Core)

SA-WS350/WSD35
16
Sony CONFIDENTIAL
For Authorized Servicer

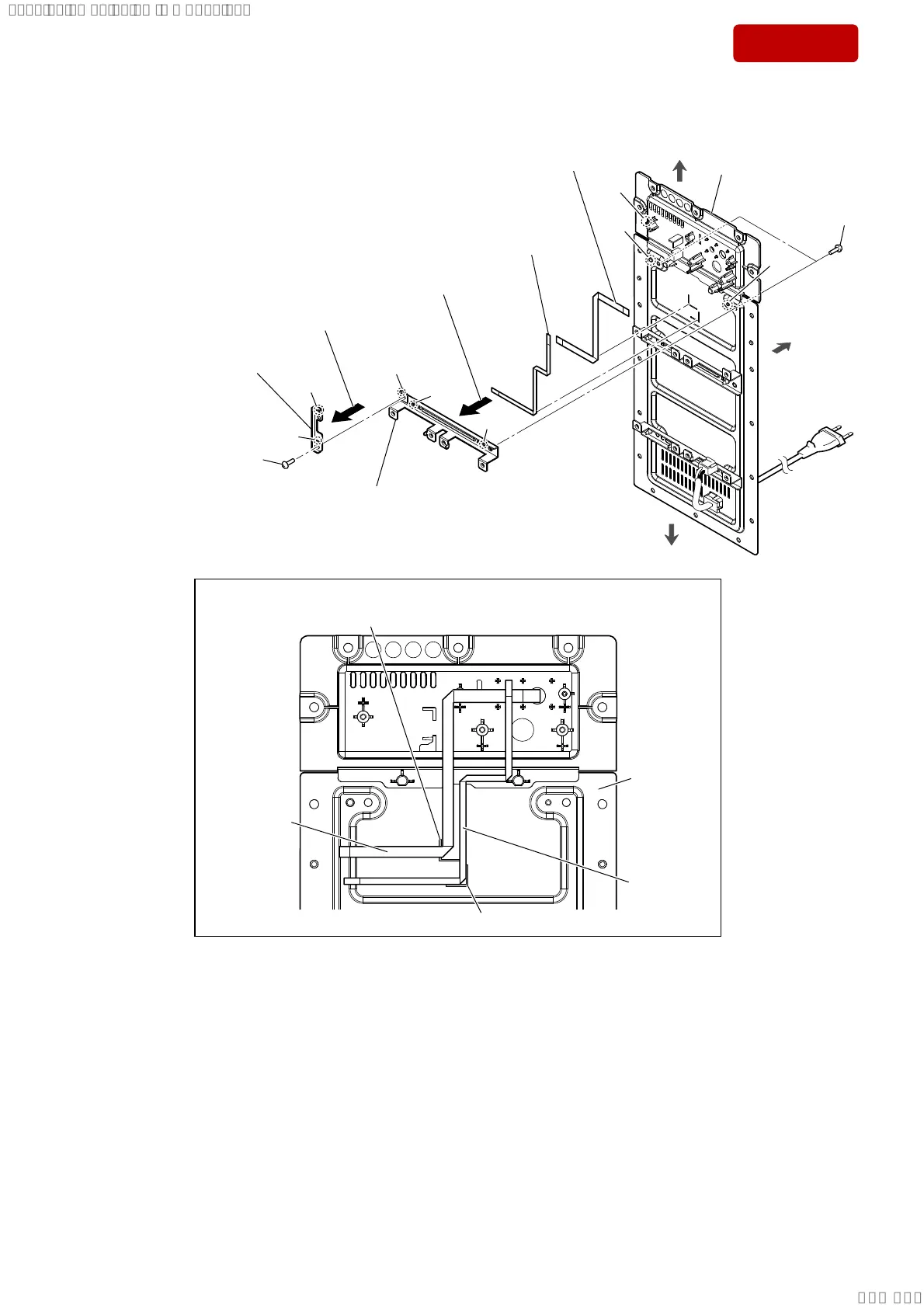

2-9. FFC CABLE (6 CORE), FFC CABLE (12 CORE)
1 screw
(BVTP3 u 8)
4 two screws
(BVTP3 u 8)
2 Remove the metal holder BT
in the direction of the arrow.
5 Remove the metal bracket A
in the direction of the arrow.
3 metal holder BT
Note 1:
When installing the metal holder BT,
align the boss and rib with two holes.
6 metal bracket A
Note 2:
When installing the metal bracketA,
align the two bosses and two holes.
3DVWLQJSRVLWLRQRIWKH))&FDEOHFRUHDQG))&FDEOHFRUH
top side
bottom side
hole
hole
boss
rib
7 FFC cable (6 core)
(L = 182.5 mm)
(See Fig. B)
8 FFC cable (12 core)
(L = 204.5 mm)
(See Fig. B)
guide line
guide line
boss
boss
rear plate block
rear side
hole
hole
)LJ%!
FFC cable
(6 core)
(L = 182.5 mm)
FFC cable
(12 core)
(L = 204.5 mm)
rear plate
block
–,QQHUYLHZ–
