Sony XAV-AX150 Service Manual

XAV-AX150
19
Sony CONFIDENTIAL
For Authorized Servicer
Note: Follow the disassembly procedure in the numerical order given.

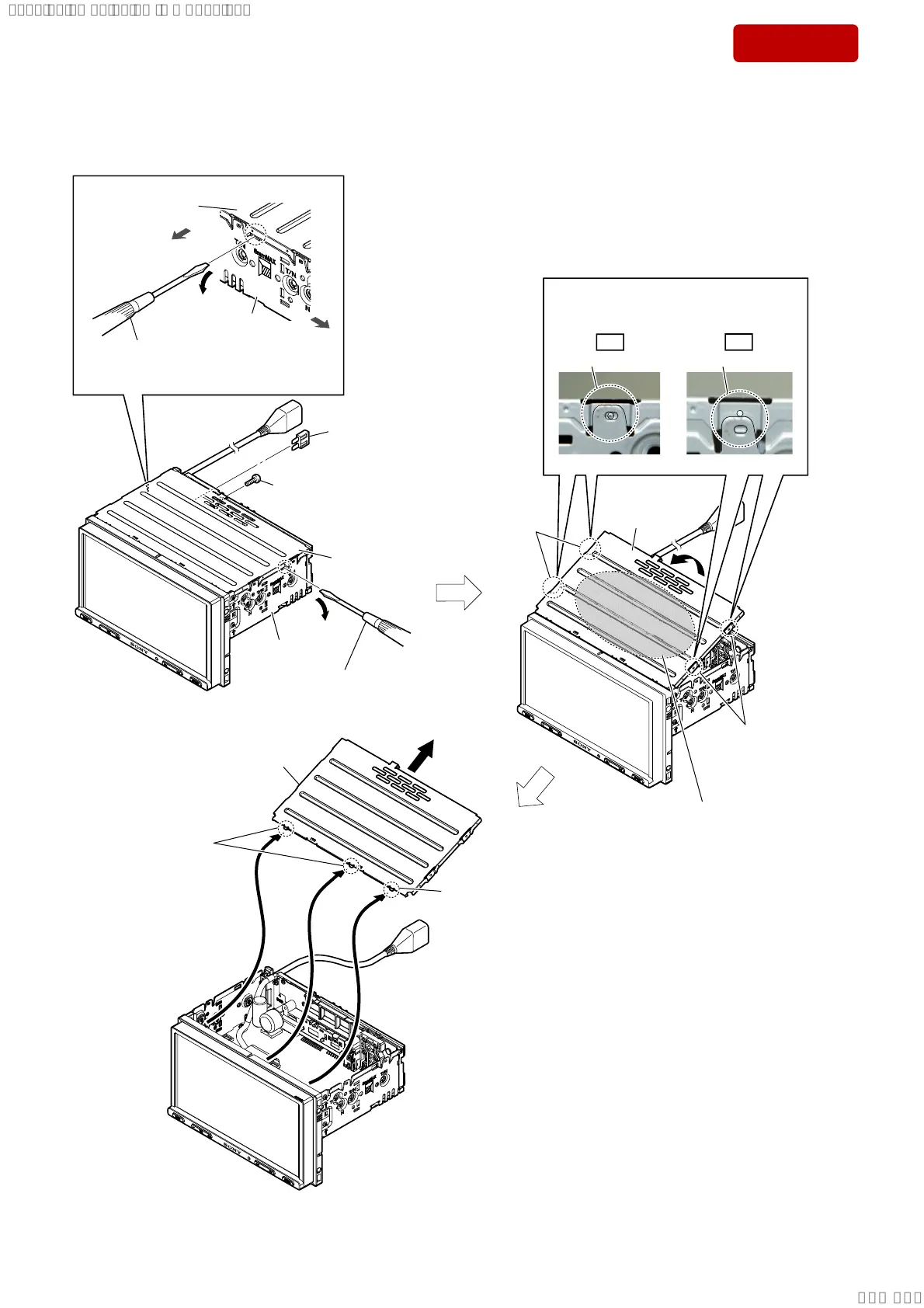

3-2. MINI FUSE (BLADE TYPE), COVER
3 Insert a flathead screwdriver
between the cover and chassis,
raise the cover.
3 Insert a flathead screwdriver
between the cover and chassis,
raise the cover.
chassis
1 mini fuse (blade type)
Note 1:
When installing the mini
fuse (blade type), insert
straight into the interior.
cover
cover
chassis
front side
left side
4 two bosses
Boss is unlocked.Boss is locked.
OK
NG
+RZWRLQVWDOOWKHFRYHU
When installing the cover, check
that four bosses are all locked.
–6LGHYLHZ–
Note 2:
When installing the cover,
do not press on the center
of the cover.
2 screw
(PTT2.6 u 6)
4 two bosses
5
6 two claws
6 claw
7
8 cover
(See Note 2)
cover
–6LGHYLHZ–
SYSSET
2020/02/0723:51:10(GMT+09:00)
