Sony XAV-AX150 Service Manual

XAV-AX150
21
Sony CONFIDENTIAL
For Authorized Servicer

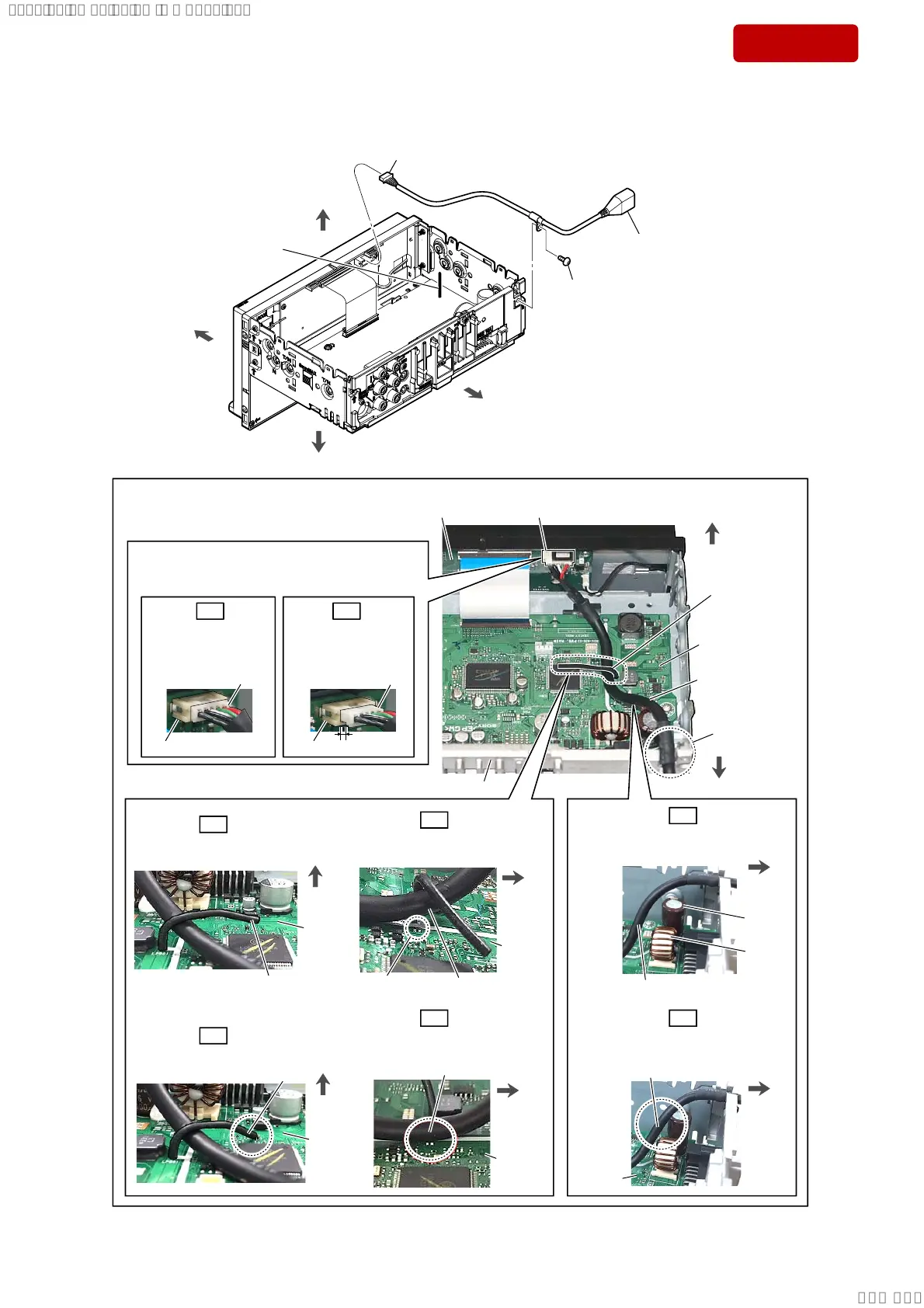

3-4. CABLE FOR AUTOMOBILE (USB)
3 screw
(PTT2.6 u 6)
4 cable for automobile (USB)
2 cable for automobile (USB)
connector (CN1701)
(See Note)
&DEOHIRUDXWRPRELOH86%VHWWLQJ
rear side
1 Remove the cable for
automobile (USB)
from the lead pin.
front side
top side
bottom side
lead pin
MAIN board
DISPLAY board CN1701
cable for
automobile (USB)
front side
rear side
groove
–7RSYLHZ–
heat sink
OK
NG
OK
NG
OK
NG
C112
L100
Lead pin don’t touch electrical
parts on the MAIN board.
Cable for automobile (USB) don’t touch
R868 and R869 on the MAIN board.
Cable for automobile (USB) don’t touch
C112 and L100 on the MAIN board.
Cable for automobile (USB) touch
C112 and L100 on the MAIN board.
Cable for automobile (USB) touch
R868 and R869 on the MAIN board.
Lead pin touch electrical parts
on the MAIN board.
MAIN
board
MAIN
board
rear
side
MAIN
board
rear
side
MAIN
board
rear
side
rear
side
R868, R869
rear
side
rear
side
MAIN
board
Insert only part way.
Insert straight into the
interior.
OK NG
Note:
When installing the cable for automobile (USB)
to the connector (CN1701) on the DISPLAY
board, insert straight to the connector.
cable for
automobile (USB)
connector
connector
cable for
automobile (USB)
lead pin
lead pin
cable for
automobile (USB)
cable for automobile (USB)
cable for automobile (USB)
cable for automobile (USB)
SYSSET
2020/02/0723:51:10(GMT+09:00)

Sony XAV-AX150 Specifications

General

Display Size	6.2 inches
Resolution	800 x 480 pixels
Bluetooth	Yes
Apple CarPlay	Yes
Android Auto	Yes
Touchscreen	Yes
Rear View Camera Input	Yes
Compatible Audio Formats	MP3, WMA, AAC, FLAC
Inputs	USB, AUX
Outputs	Preamp Outputs
EQ	10-band equalizer
USB Input	Yes
Preamp Outputs	3 Pairs (Front, Rear, Sub)
Power Output	20W RMS x 4 channels
USB Port	1
