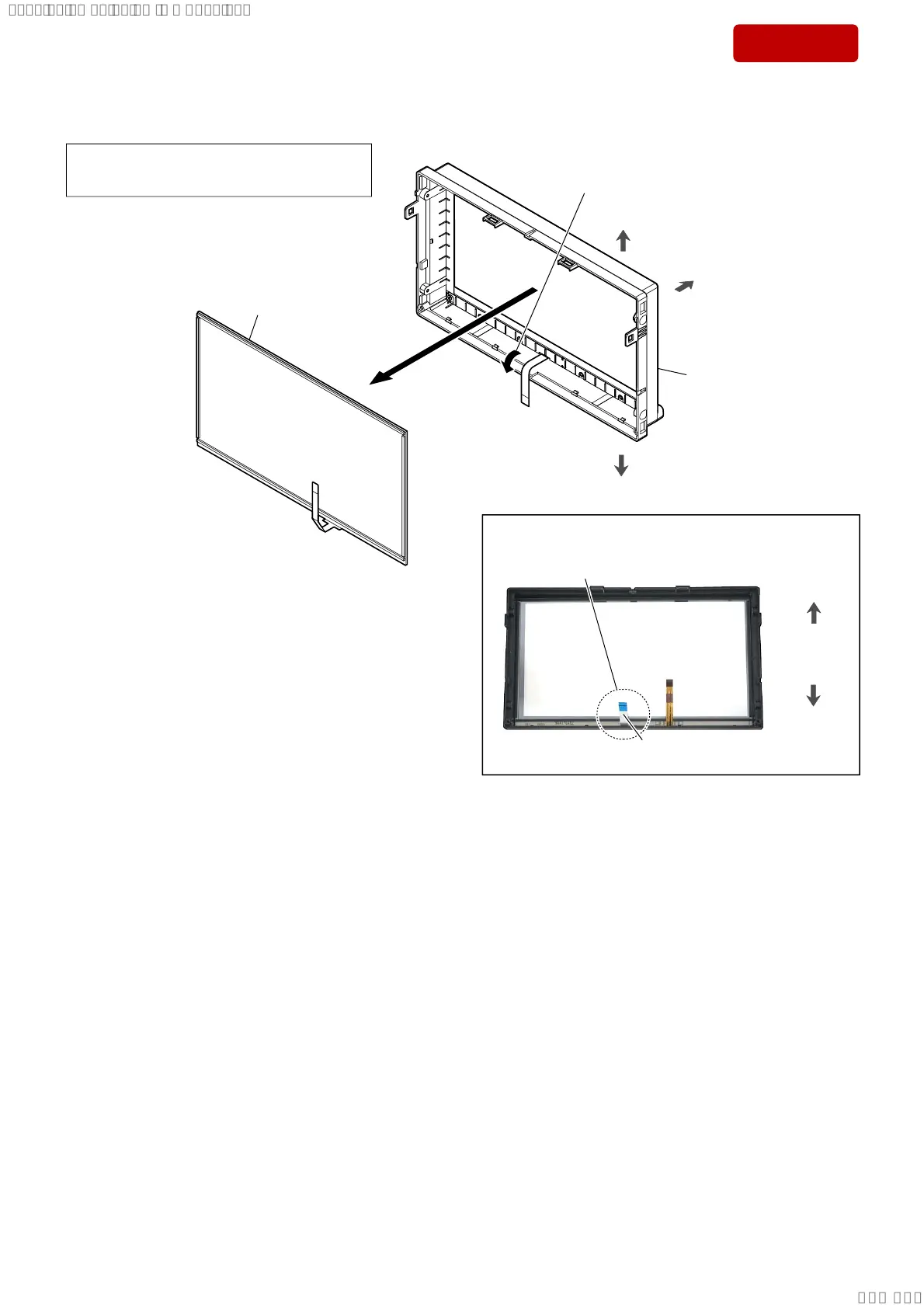

3-11. TOUCH PANEL, FRONT PANEL ASSY

1 Move the flexible flat cable

(10 core) to the outer side.

3 touch panel

(See Note)

(See Fig. E)

4 front panel assy

1RWHDERXWLQVWDOOLQJWKHWRXFKSDQHO

Flexible flat cable (10 core) are visible.

)LJ(!

front side

top side

bottom side

top side

bottom side

flexible flat cable

(10 core)

Note:

When the touch panel is replaced, be sure to refer

the “TOUCH PANEL ADJUSTMENT” on page 10,

and perform it.
