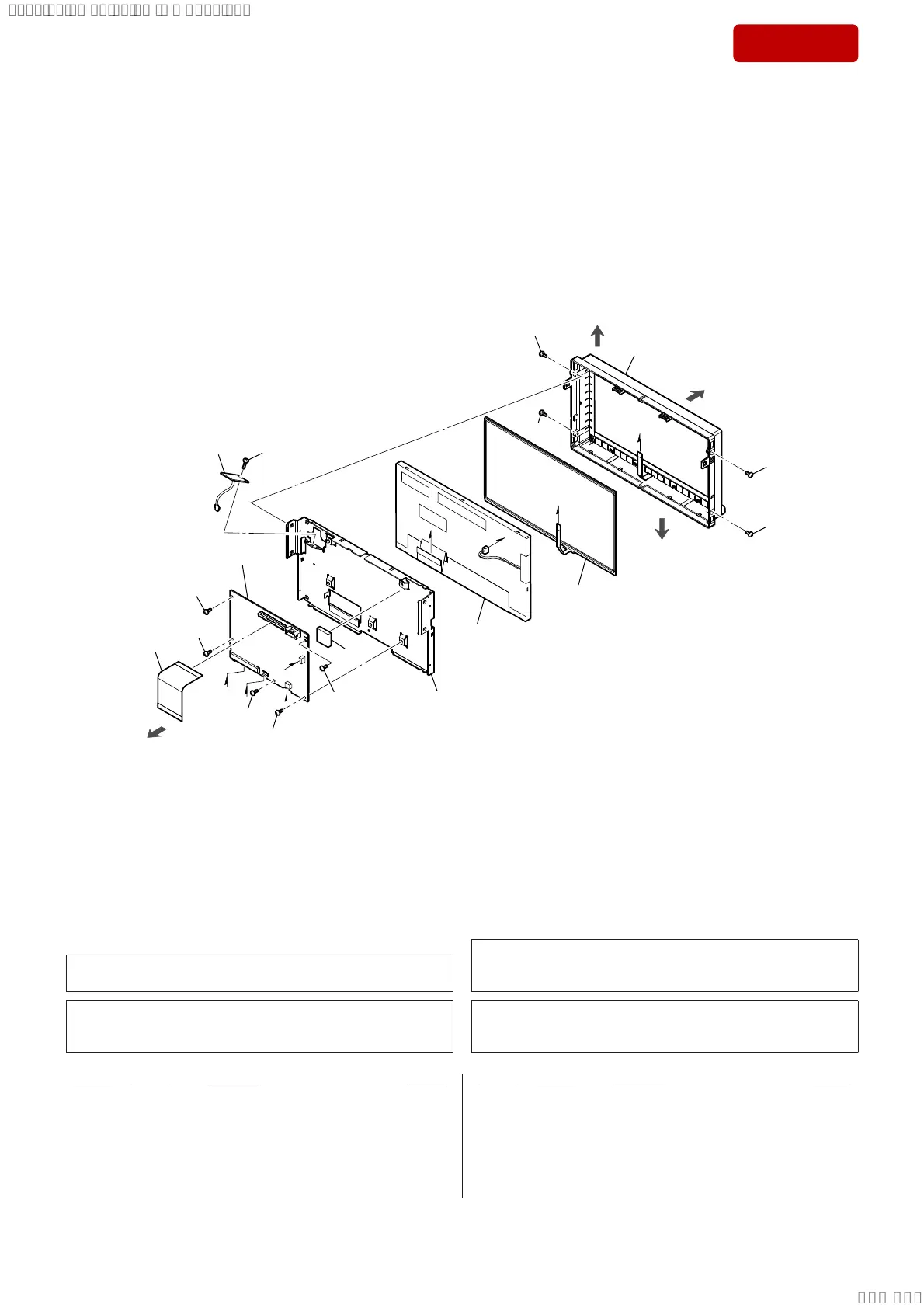

6-2. FRONT PANEL SECTION
rear side
I
H
F
G
G
H
front side
BT1
51
FFC1
not supplied
51
51
51
51
52
(See Note 1, 2)
53
LCD1
(See Note 3)
top side
bottom side
F
55
55
I
FP1
55
55
TPN1
(See Note 4)
54
Note 1: Replaced old complete DISPLAY board (Ref. No. 52) is de-
stroyed with the hammer, and dispose it.
Note 2: When the complete DISPLAY board (Ref. No. 52) is replaced, be
sure to refer the “IMPORTANT NOTE FOR REPLACING THE
DISPLAY BOARD” on page 4, and perform it.
Note 3: When the liquid crystal display (Ref. No. LCD1) is replaced, be
sure to refer the “FLICKER ADJUSTMENT” on page 28, and
perform it.
Note 4: When the touch panel (Ref. No. TPN1) is replaced, be sure to
refer the “TOUCH PANEL ADJUSTMENT” on page 10, and
perform it.
51 304224451 SCREW (T) (2.0 X 4.0 mm) (Silver)
52 A2224778B DISPLAY BOARD, COMPLETE (See Note 1, 2)
53 304224411 SCREW (T) (2.0 X 4.0 mm) (Black)
54 474597901 SHEET HEAT TRANSFER
55 415704901 SCREW +Z S1.7X4
BT1 175489421 BT, ANTENNA
FFC1 191247011 CABLE, FLEXIBLE FLAT (60 CORE)
FP1 A5018898A PANEL (SV) ASSY, FRONT
(Including KEY board, Flexible fl at cable (10 core),
Screw, Button L, Button R, Filter IR, Bracket key)
LCD1 100367311 LIQUID CRYSTAL DISPLAY (See Note 3)
TPN1 181244411 PANEL, TOUCH (See Note 4)
