Sony XAV-AX150 Service Manual

XAV-AX150
26
Sony CONFIDENTIAL
For Authorized Servicer

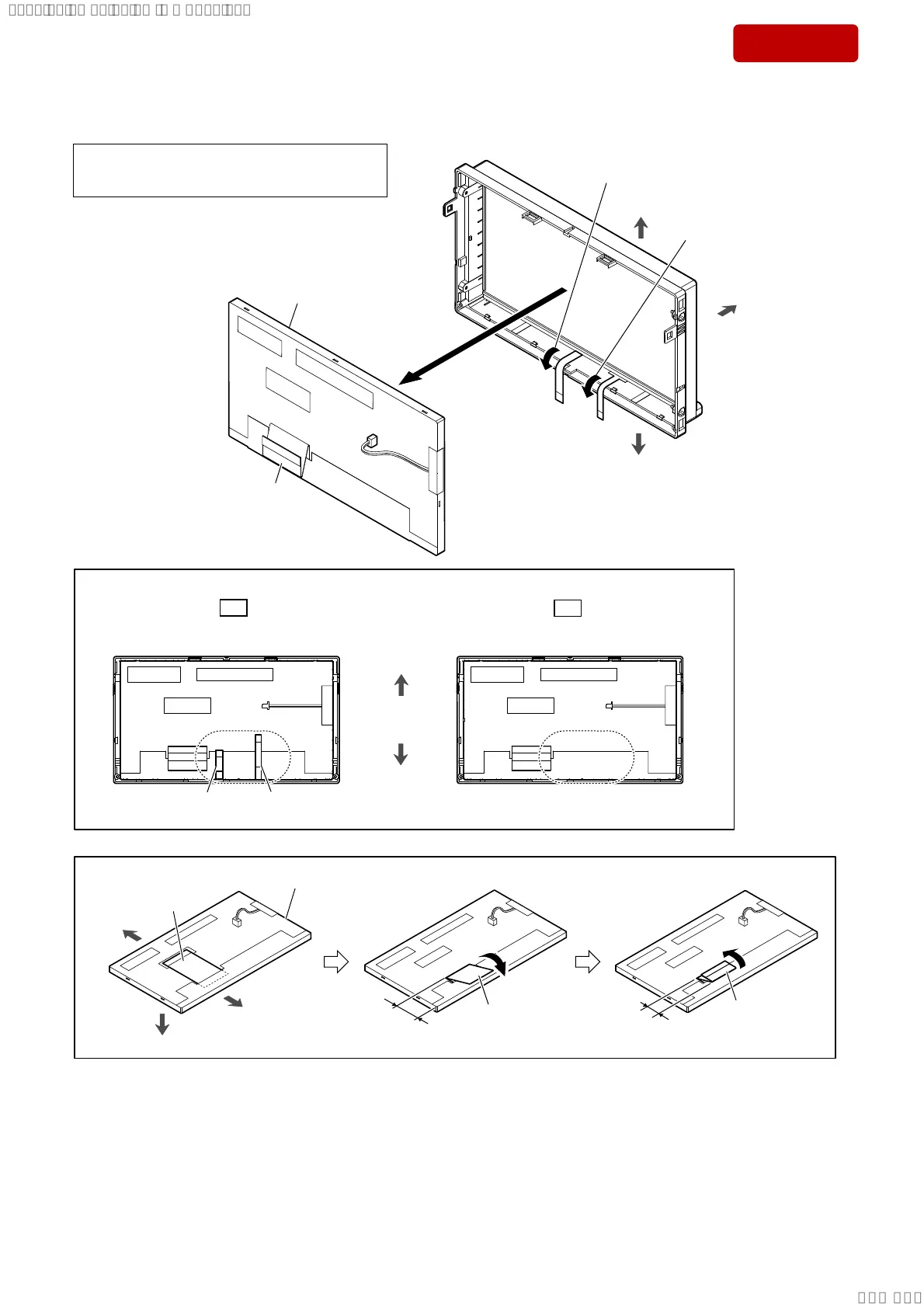

3-10. LIQUID CRYSTAL DISPLAY
OK
NG
2 Move the touch panel FPC
to the outer side.
1 Move the flexible flat cable
(10 core) to the outer side.
3
4 liquid crystal display
(See Note)
(See Fig. C)
1RWHDERXWLQVWDOOLQJWKHOLTXLGFU\VWDOGLVSOD\
Touch panel FPC and flexible flat cable (10 core)
are visible.
Touch panel FPC and flexible flat cable (10 core)
are not visible.
)LJ&!
front side
top side
bottom side
top side
bottom side
Bend.
Bend.
1.5 cm
2.6 cm (+ 0, - 0.1 cm)
LCD FPC
LCD FPC
LCD FPC
+RZWREHQGRIWKH/&')3&
liquid crystal display
front side
top side
bottom side
)LJ'!
LCD FPC
(See Fig. D)
Note:
When the liquid crystal display is replaced, be sure to
refer the “FLICKER ADJUSTMENT” on page 28,
and perform it.
touch panel FPC
flexible flat cable
(10 core)
SYSSET
2020/02/0723:51:10(GMT+09:00)

Sony XAV-AX150 Specifications

General

Display Size	6.2 inches
Resolution	800 x 480 pixels
Bluetooth	Yes
Apple CarPlay	Yes
Android Auto	Yes
Touchscreen	Yes
Rear View Camera Input	Yes
Compatible Audio Formats	MP3, WMA, AAC, FLAC
Inputs	USB, AUX
Outputs	Preamp Outputs
EQ	10-band equalizer
USB Input	Yes
Preamp Outputs	3 Pairs (Front, Rear, Sub)
Power Output	20W RMS x 4 channels
USB Port	1
