to connect with standard connectors MIPI10/ARM10, STDC14, and ARM20 (refer to
Section 9: Flat ribbons on page 29).
See Figure 3 for connections:

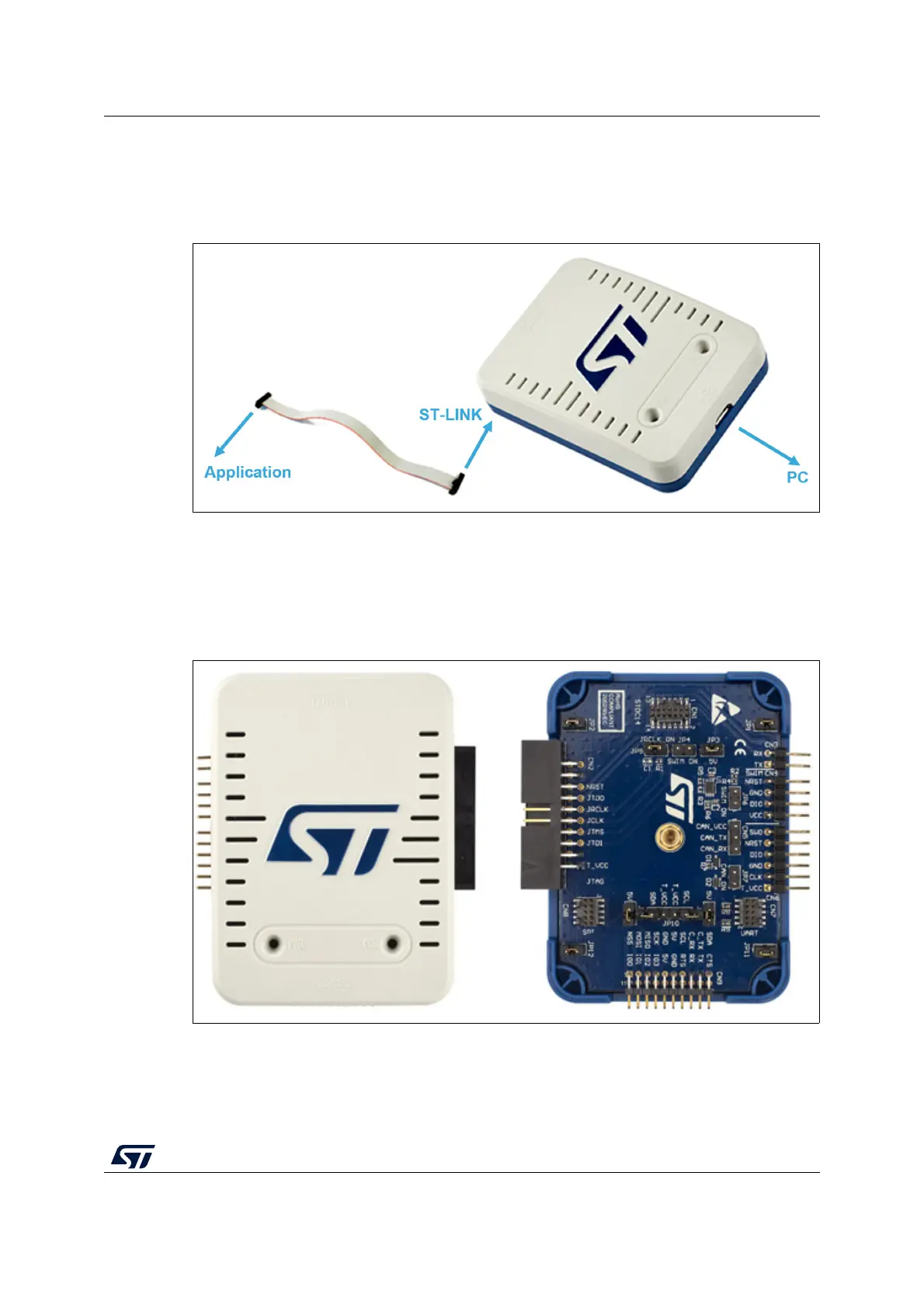

Figure 3. Connections
7.1.2 Adapter configuration for added functions
This configuration favors the connection to targets using wires or flat cables. It is composed
of MB1441 and MB1440. It supports debugging, programming, and communicating with
STM32 and STM8 microcontrollers.
Figure 4. Probe with adapter
