UM2448 Rev 6 15/49
UM2448 STLINK-V3SET functional description
48
7.2 Hardware layout
The STLINK-V3SET product is designed around the STM32F723 microcontroller (176-pin in
UFBGA package). The hardware board pictures (
Figure 6 and Figure 7) show the two
boards included in the package in their standard configurations (components and jumpers).
Figure 8, Figure 9, and Figure 10 help users locate the features on the boards. The
mechanical dimensions of the STLINK-V3SET product are shown in Figure 11 and
Figure 12.

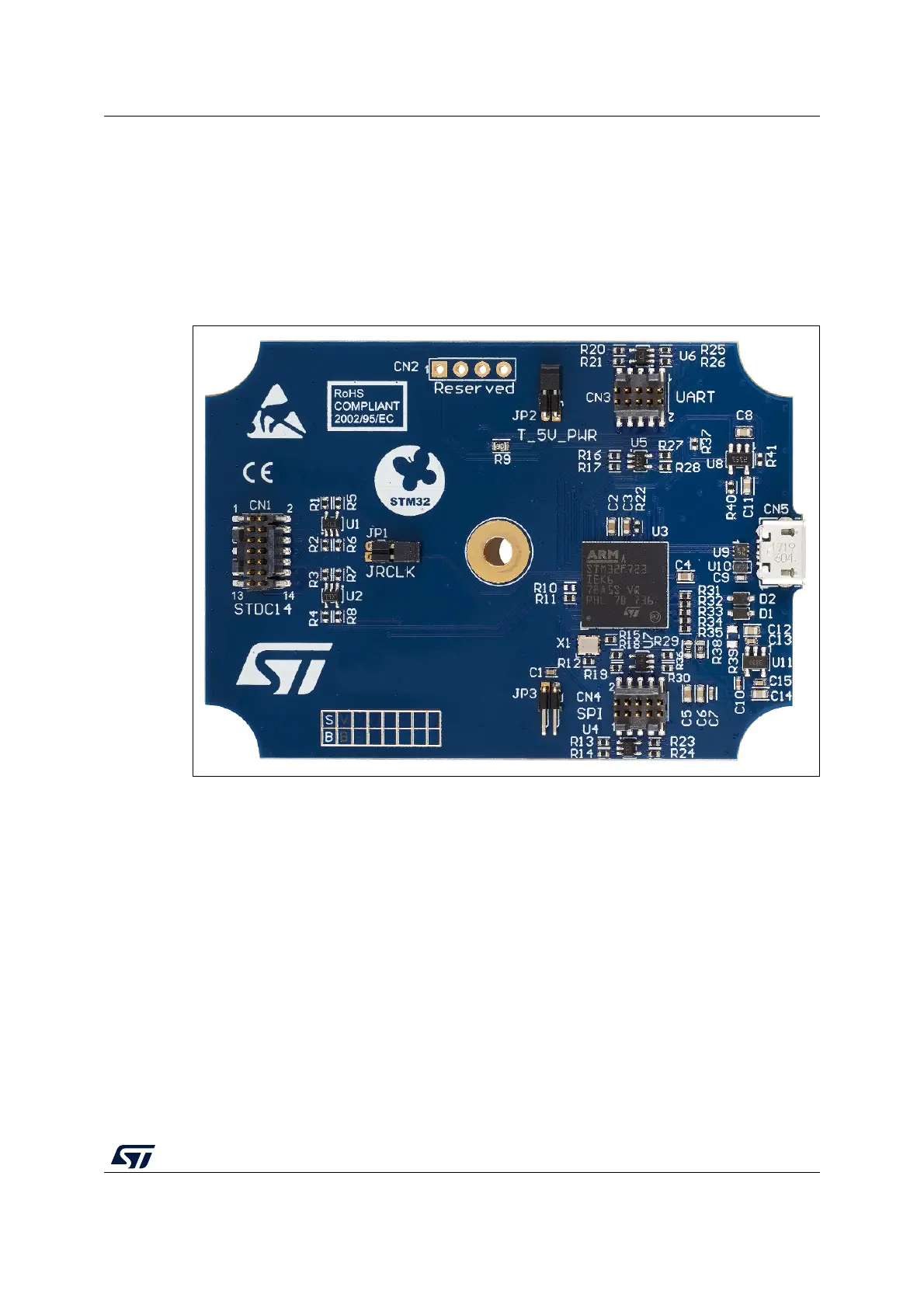

Figure 6. Hardware board MB1441
