B-STLINK-VOLT board extension description UM2448
34/49 UM2448 Rev 6

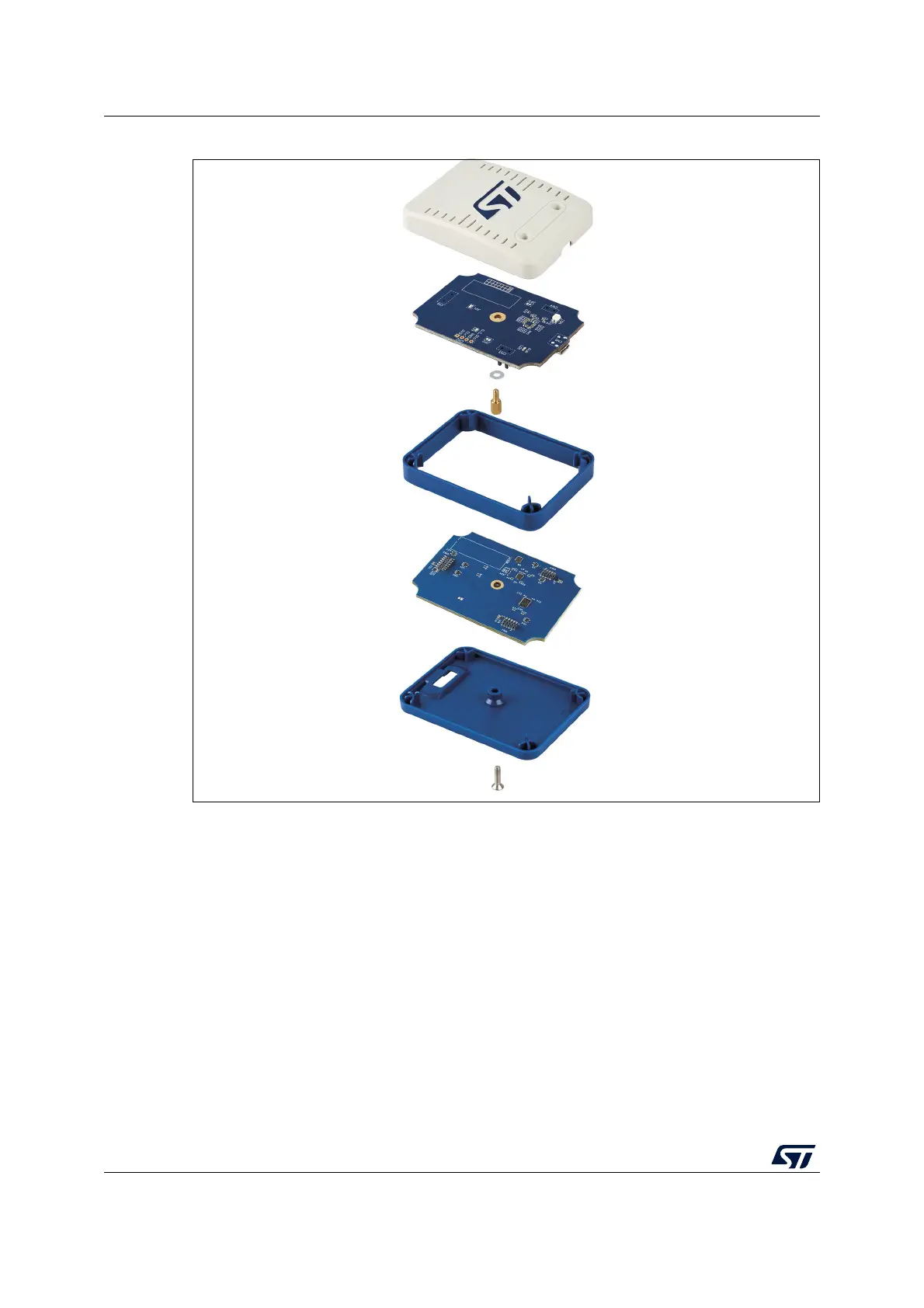

Figure 16. Closed casing for STM32 debug with B-STLINK-VOLT
The STDC14 CN1 connector on the B-STLINK-VOLT board replicates the STDC14 CN1
connector from the MB1441 main module. Refer to
Section 8.1.2 for details.
