2008-03-18 Workshop Manual, Stiga Primo 2 Chassis and Body 3

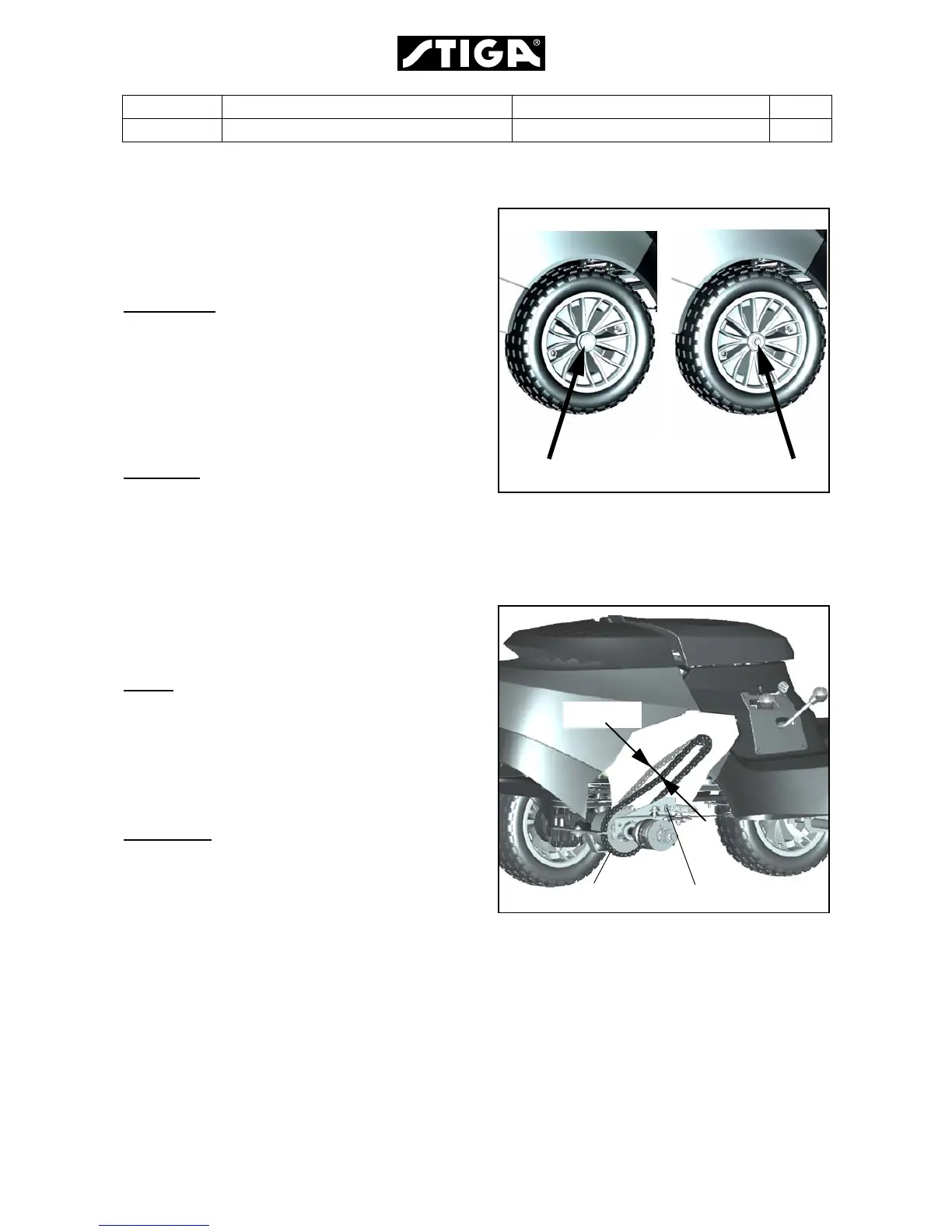

2.2 Wheel
For certain maintenance work, it is necessary
to remove a rear wheel.
Dismantling:
1. Raise the machine according to chapter 1.
2. Remove the cover disc (A).
3. Use a 17 mm wrench and remove the screw
(B) with disc.
4. Pull the wheel from the axle.
Assembly:
1. Slide the wheel onto the axle.
2. Install the screw (B) with disc.
3. Tighten the screw to 40-45 Nm.
2.2.1 Adjusting the drive chain (U)
Check/adjust the belt tension each season as
follows:
Check:
1. Raise the machine and remove the right-
hand rear wheel. See 6.4.
2. The chain (15:U) must have 5-10 mm of
play.
Any required adjustment, see blow.
Adjustment
:
Adjust the play by moving the tensioner wheel
as follows:
1. Slacken off the nut (15:T) and set the
tensioner wheel to the desired position.
2. Tighten the nut and check the play. Adjust
again if required.
3. Tighten the nut to 40-45 Nm when
adjustment has been completed.
AB
5-10 mm
T
U
