Stiga Primo 2008 User Manual

Edition Manual Chapter Page

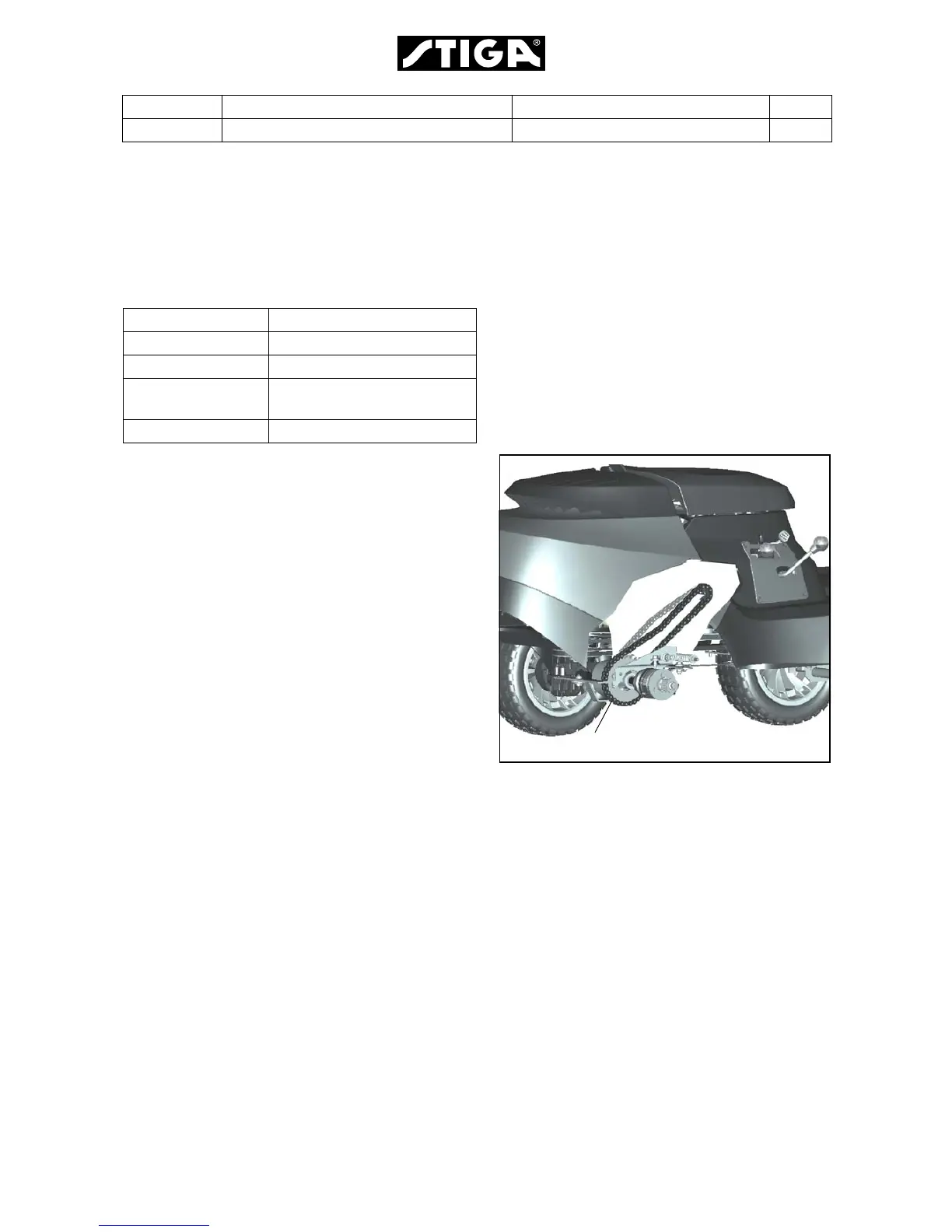

2008-03-18 Workshop Manual, Stiga Primo 2 Chassis and Body 6
2.5 Lubrication chassis
All lubrication points according to the table
below must be lubricated after every 25
operating hours as well as after each clean.
2.5.1 Drive chain
Lubricate the drive chain (U) using chain spray
as follows. Use universal type chain spray.
1. Trestle up the machine’s right-hand rear
wheel so that it can rotate freely.
2. Brush the chain clean using a wire brush.
3. Rotate the rear wheel by hand and at the
same time spray the chain so that it is fully
lubricated.
4. Lower the machine.
2.5.2 Steering cable
Lubricate the steering cable using chain spray
as below. Use universal type chain spray.
1. Brush the chain clean using a wire brush.
2. Turn the steering wheel and at the same
time spray the cable so that it is fully
lubricated.
Item Chapter / Section
Drive chain 2.3.1
Steering cable 2.3.2
Tensioning arms
and moving joints
2.3.3
Throttle cable 2.3.4
U
