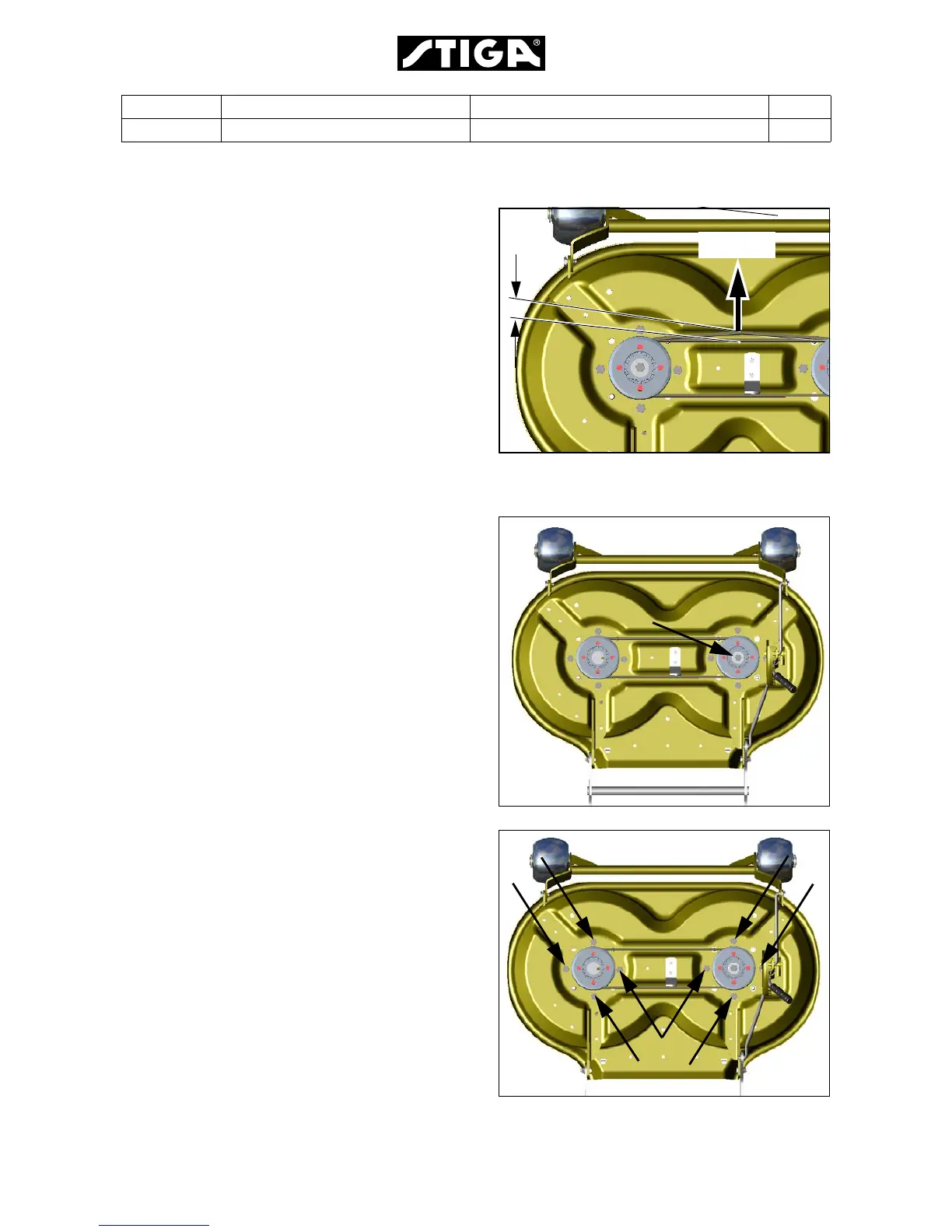

2008-03-18 Workshop Manual, Stiga Primo 6 Mower Decks 11
8. Check the belt tension.
When pulling out the belt 10 mm, the force
required shall be 30-40 N. See the figure.
9. Loosen the four screws and adjust again if
necessary.
10.Assemble all parts in the reverse order.
6.3.8 Replacements of pulleys and
bearing boxes
Disassembly
1. Disassembly the drive belt and timing belt as
described above.
2. Disassembly the blades as described above.
3. Unscrew the pulley screw at the left shaft and
remove the spacer.
4. Pull up the plastic timing belt pulleys.
Use an extractor if necessary.
5. Disassemble the eight screws and take out
the bearing boxes.
10 mm 30-40 N
