Edition Manual Chapter Page
2008-03-18 Workshop Manual, Stiga Primo 4 Belts 6

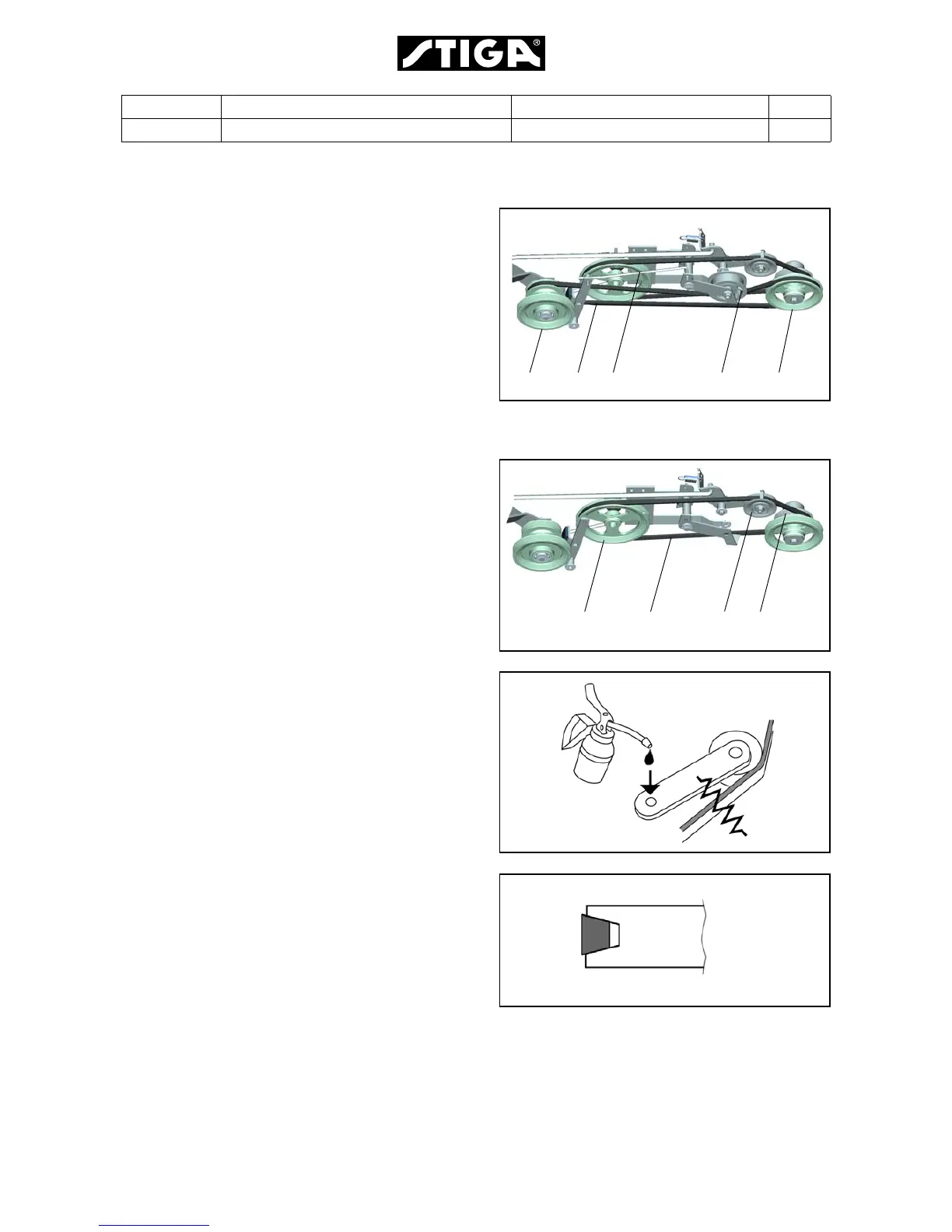

5. Unhook all springs and note where the
respective spring is attached.
6. Remove the split pin and unhook the rod (R)
at the front.
7. Remove the pulley (5). Use a 15 mm and a
17 mm wrench.
8. Take off the belt (B) first from pulley (8), then
thread it around the pulley 3 and finally,
remove it.
9. Remove the pulley (6). Use a 15 mm and a
17 mm wrench.
10.Remove the belt (C) from the pulleys (4) and
(7).
4.3.2 Inspection and measures
1. Check and lubricate all links.
• The links shall move easily and not have
any major play.
• Lubricate all pivot linkages with machine
oil.
2. Check the belts.
• The belt shall rest with its angled sides
against the pulleys. There must be a
space between belt and pulley bottom.
• The belt shall be intact. No loose parts or
cracks.
3. Check all ball bearings with respect to the
following:
• No radial play.
• The sealing shall be intact.
• No abnormal noise when rotating. Shall
rotate evenly without stop tendency.
Replace all defective parts with genuine
spare parts.
3B 5 8R
67C4
