Stiga Primo 2008 User Manual

Edition Manual Chapter Page
2008-03-18 Workshop Manual, Stiga Primo 1 General 7
1.4.3 Assembly

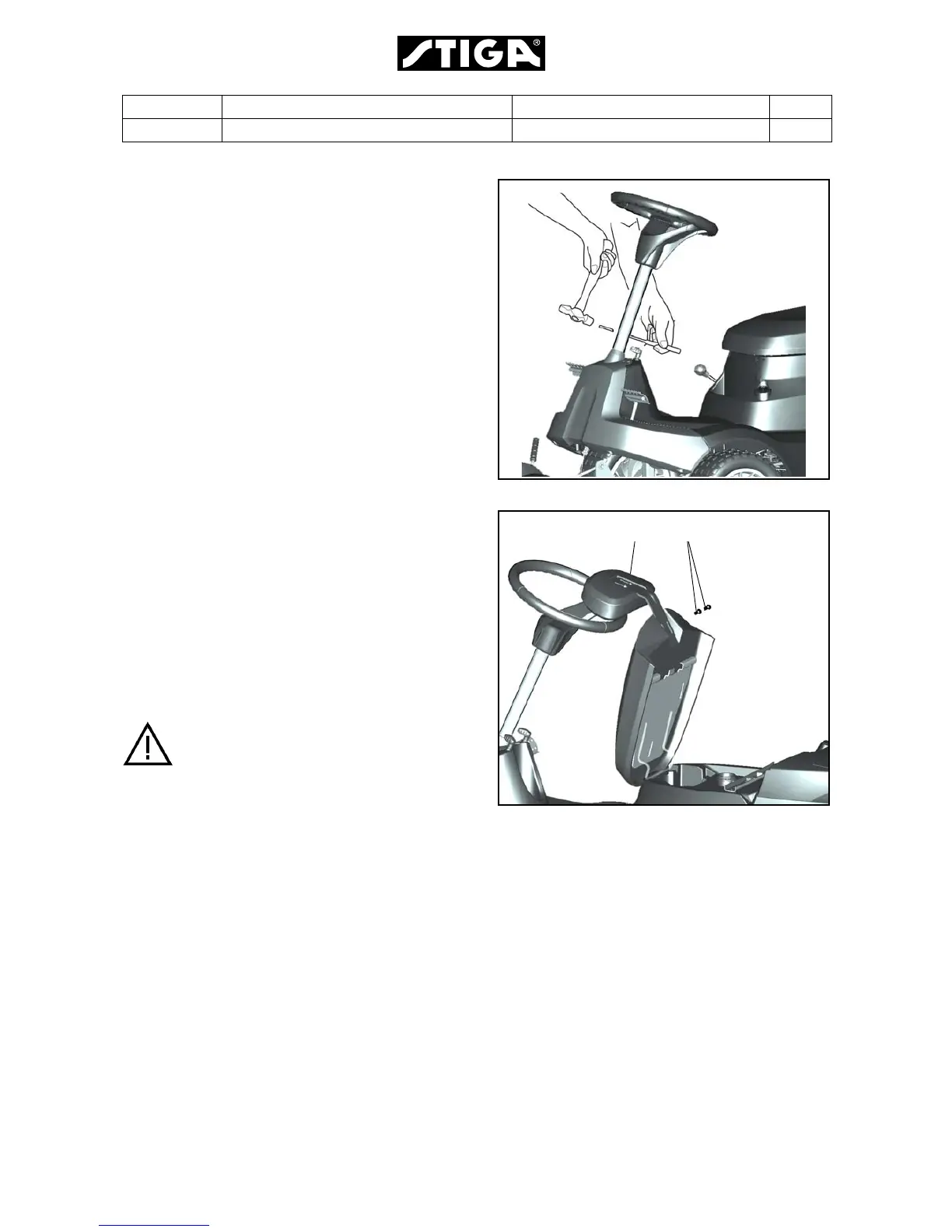

The assembly procedure shall take place in a
clean, well illuminated and dry place.
Assemble the machine as follows:
Steering wheel
Install the steering wheel as follows:
1. Install the steering column jacket on the
steering column using a drift or similar so
that the holes in the steering column jacket
and steering column align with each other.
2. Tap in the supplied tension pin from the
other side using a hammer.
Backrest
Install the backrest as follows:
1. Fold the seat up towards the steering wheel.
2. Install the backrest with the screws (O)
without tightening.
3. Set the backrest to the desired position.
4. Tighten the screws. Tightening torque: 20-
24 Nm.
If the screws are tightened more than
24 Nm, the seat will be damaged.
N O
