Stiga Primo 2008 User Manual

Edition Manual Chapter Page
2008-03-18 Workshop Manual, Stiga Primo 4 Belts 5
4.3 Replacement of belts
This section describes the belt changing of belt
C. For changing other belts, see actual parts of
the belt C description.

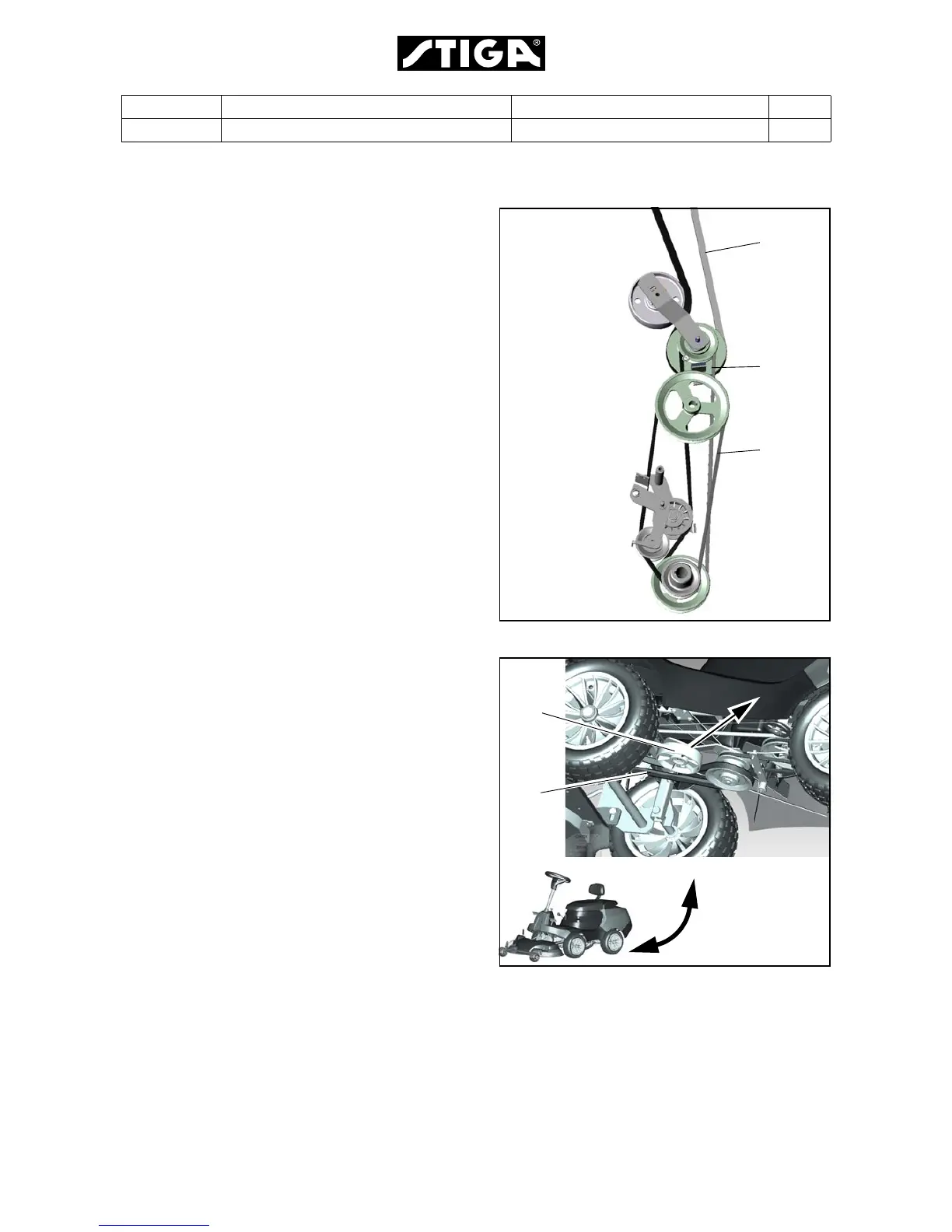

4.3.1 Disassembly of belt C
The belt C is the uppermost belt and is intended
to conduct the engine power to the gearbox.
The belt is controled by a lever for the clutch
function.
Dismantle the belt as follows:
1. Raise the machine by one of the alternatives
below:
• With a highjack and yokes. See section 1.
• With a lifting table.
2. Set the cutting deck (if mounted) to max
cutting heighth.
3. If the cutting deck is mounted; Pull out the
pulley (H) and take down the belt to unload
the belt tension.
4. If the cutting deck is mounted; Remove the
belt A.
A
C
B
H
A
