Edition Manual Chapter Page
2008-03-17 Workshop Manual, Stiga Primo 5 Electrical System 8
5.3 Repair and replace-
ments
Warning
Do not wear rings, metallic bracelet,
chain round the neck or similar met-
al objects when working with the
electrical system. It can cause
short-circuit, burns and fire.
5.3.1 Connections
The machine is equipped with three kinds of
connectors:
• Fixed connectors in plastic holders.
• Tab connectors
• Screw connectors
All connectors shall be kept free from
contamination, corrosion and damp.

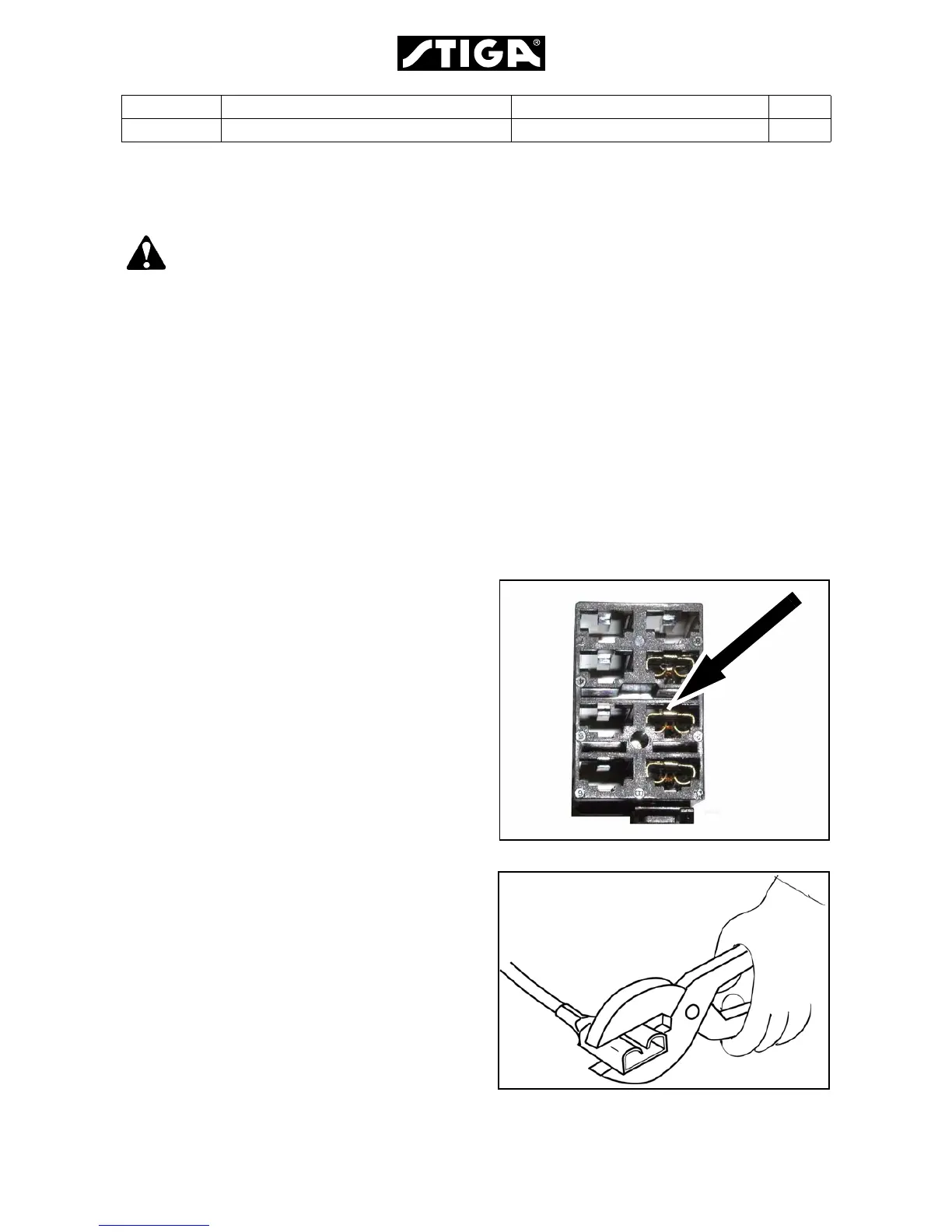

Fixed connectors in plastic holders
To remove the connectors from the plastic
holder, put a small screwdriver behind the
connector, hold the cable and pull out the
connector.
See the figure.
Tab connectors
To restore tab connectors if bad crimp
forces occur, e.g. after a long time of use,
the connector can be pinched by a pliers.
See the figure.
