Edition
Manual
Chapter
Page
2008-03-17
Workshop Manual, S
tiga
Primo
5 Electrical System
9
Screw connectors
When cables shall be connected into screw
connectors, the cable shall be stripped off 5
mm only
. No
metallic conductor is allowed to
be exposed outside the terminal.
Wa
r
n
i
n
g
!
Exposed conductors can cause
short-circuit and fire.

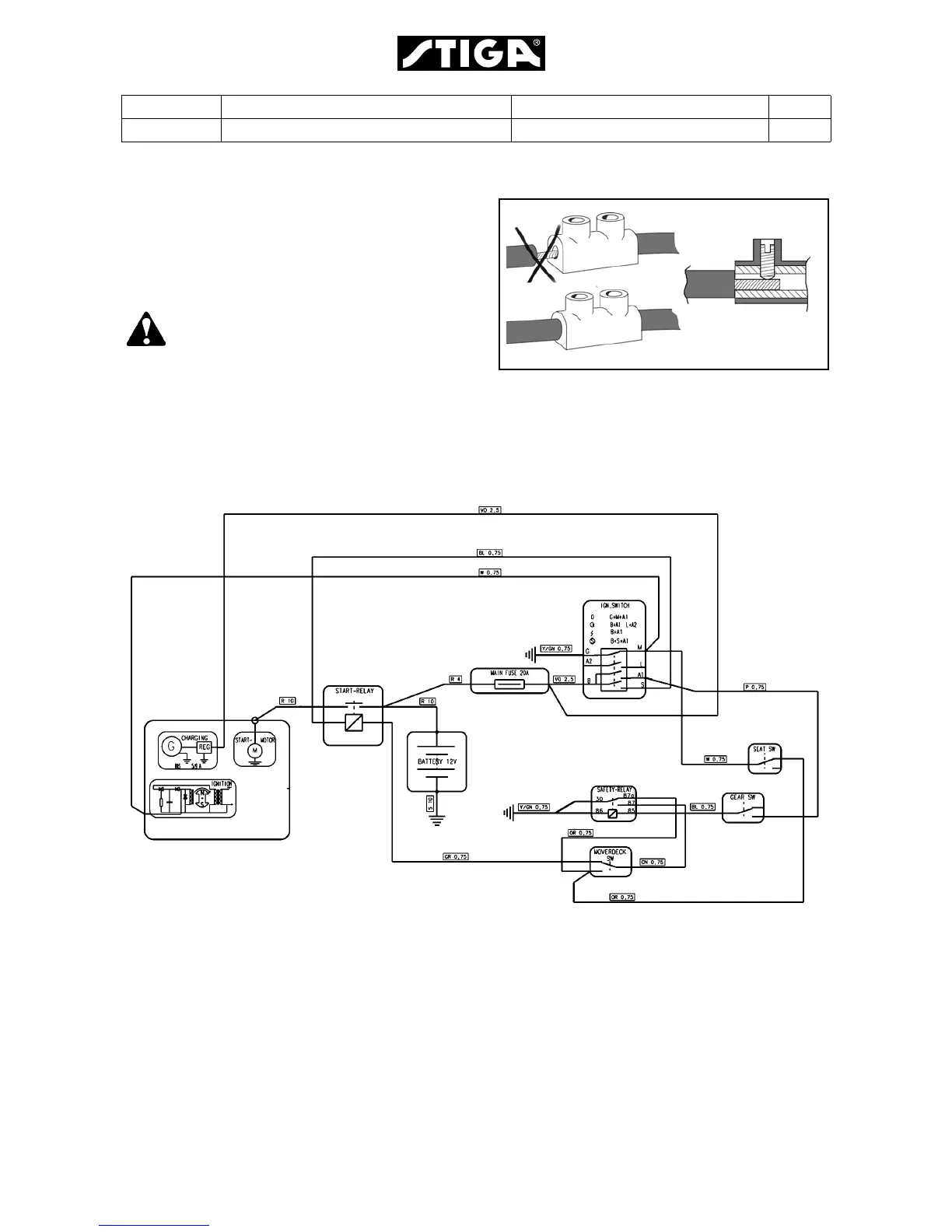

5.3.2 Circuit diagram
42
44
Table of Contents
1 General Instructions Contents in this Chapter
2
Table of Contents
2
Introduction
3
Responsibility Declaration
3
How this Manual Is Used
3
Safety Precautions
3
Before Service or Maintenance2
3
Symbols and General Warnings
4
Warm Parts
4
Moving Parts
4
Lifting and Blocking up
4
Cleanliness
4
Tightening Torque
4
Sharp Edges
4
Replacement Parts
4
Inspection
4
General
5
Guarantee
5
Guarantee Period
5
Exeptions
5
Conditions for Validity of the Warranties
5
Unpacking and Assembly
6
Unpacking
6
Battery
7
Assembly
8
Final Checks
10
General Tightening Torque
11
Instructions for Use
11
Raising
12
Raising Back
12
Raising Front
12
Turning Upsidedown
13
Preparing
13
Draining the Petrol
13
Seat with Its Plate
13
Motor Hood
14
Motor Oil
14
Petrol Tank
14
Turning
14
Restoring the Machine on Its Wheels
14
2 Chassis and Body Contents in this Chapter
15
Repair of the Chassis
16
Repair of Cracks
16
Repair of Threads
16
Wheel
17
Adjusting the Drive Chain (U)
17
General
18
Lubrication Chassis
20
Drive Chain
20
Steering Cable
20
Tensioning Arms, Movable Joints
21
Throttle Cable
21
Bearings
21
4 Belts Contents in this Chapter
27
Description
28
Belt Theory
29
Why It Is so Important to Use Original Belts from the Retail Dealer
29
Replacement of Belts
31
Disassembly of Belt C
31
Inspection and Measures
32
Assembly of Belt C
33
Adjustmen of PTO Brake
33
5 Electrical System Contents in this Chapter
35
Electrical System
35
Description
36
Trouble Shooting
37
The Starter Does Not Rotate
38
The Starter Rotate, but the Motor Does Not Start
39
The Battery Runs Repeatedly Empty
39
The Motor Does Not Stop
40
The Motor Can be Started with the Mover Deck Activated
40
The Motor Can be Started with a Gear Activated
40
The Motor Does Not Stop When the Operator Leaves the Seat and the Mover Deck Is Activated
41
Connections
42
Repair and Replacements
42
Circuit Diagram
43
6 Mower Deck Contents in this Chapter
44
Mower Deck
44
General
45
General Tightening Torque
45
Cutting Theory
46
Cutting Height
46
Original Blades
47
Why It Is so Important to Use Original Blades and Blade Tips from the Retail Dealer
47
Disassembly
48
Disassembly and Assembly
48
Assembly
49
Replacing Blades
50
Safety
51
Synchronising Blades
51
Replacing Driving Belt
52
Replacing Timing Belt
52
Replacements of Pulleys and Bear- Ing Boxes
54
