32 BT 130

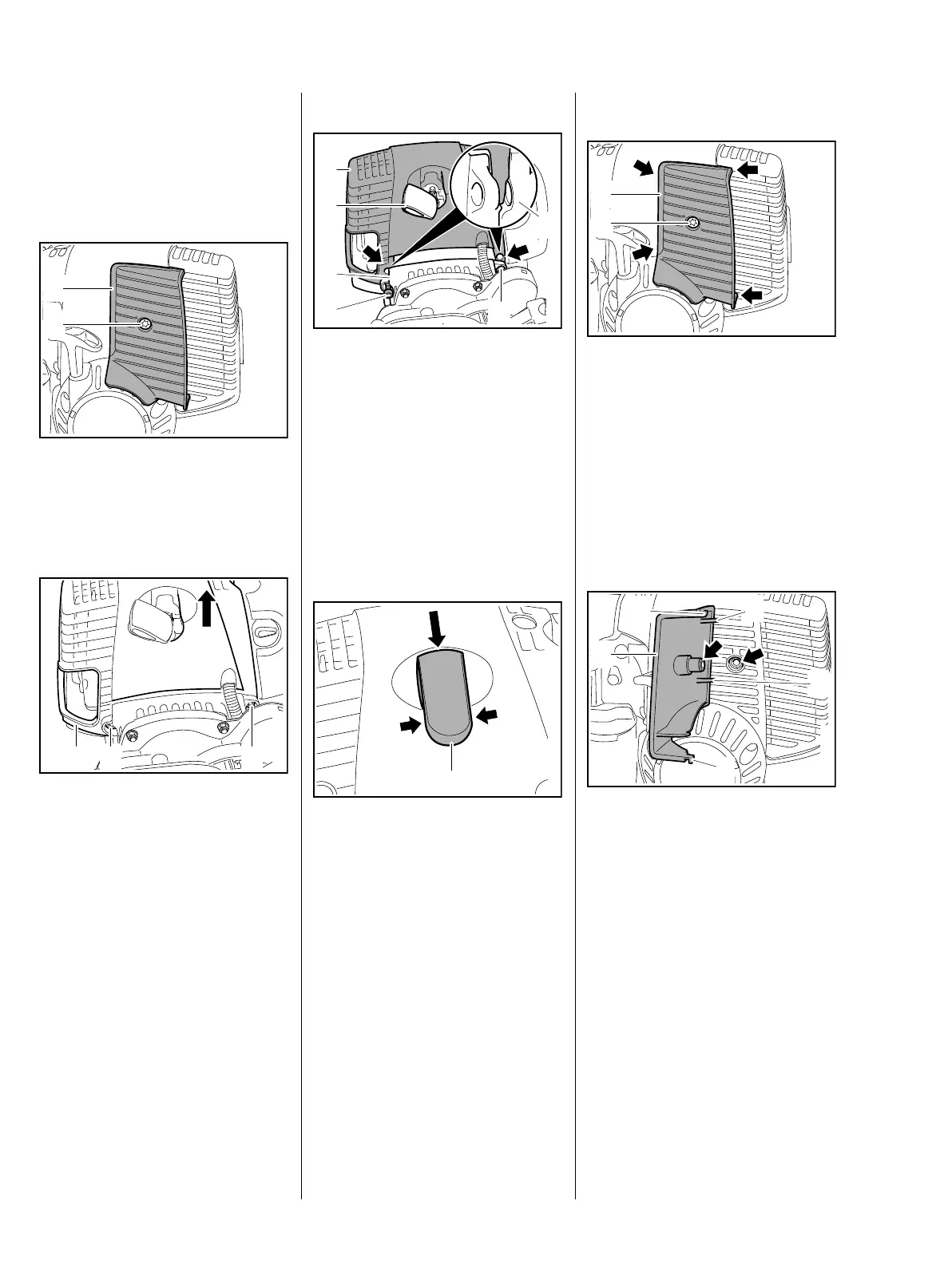

7.2 Shroud
– Remove the engine, b 7.1
– Pull boot off the spark plug.
: Take out the screw (1)
: Inspect the air guide shroud (2),
replace it if necessary, b 7.2.1
: Use T27x15x75 screwdriver
0812 370 1004 to take out the
screws (1) and remove the
shroud (2), pushing the spark
plug boot through the opening at
the same time.
9912RA261 TG
1
2
9912RA262 TG
112
Installing
: Place the shroud (1) in position
and push the spark plug boot (2)
through the opening.
: Push the shroud (1) into place so
that the tabs (arrows) engage
between the crankcase (3) and
fan housing (4).
: Insert and tighten down the
screws (5) firmly.
: Fit the boot (1) on the spark plug
and position it so that the rubber
lip covers the opening (arrows)
and locates against the shroud.
9912RA263 TG
1
2
4
5
5
3
9912RA147 TG
1
7.2.1 Air Guide Shroud
: Take out the screw (1)
: Disconnect the air guide
shroud (2) from the slots (arrows)
and lift it away.
– Inspect the air guide shroud and
replace if necessary.
Installing
: Engage lugs (2) of air guide
shroud (1) in the slots so that the
holes (arrows) are in alignment.
: Fit air guide shroud (1) by
hooking the lugs (3) to the air
slots.
– Insert screw and tighten it down
firmly.
9912RA264 TG
1
2
9912RA265 TG
1
2
2
3
3
