Stihl FS 80 Service Manual

18 FC 75, FC 85, FH 75, FS 75, FS 80, FS 85, HL 75, KM 85, KW 85

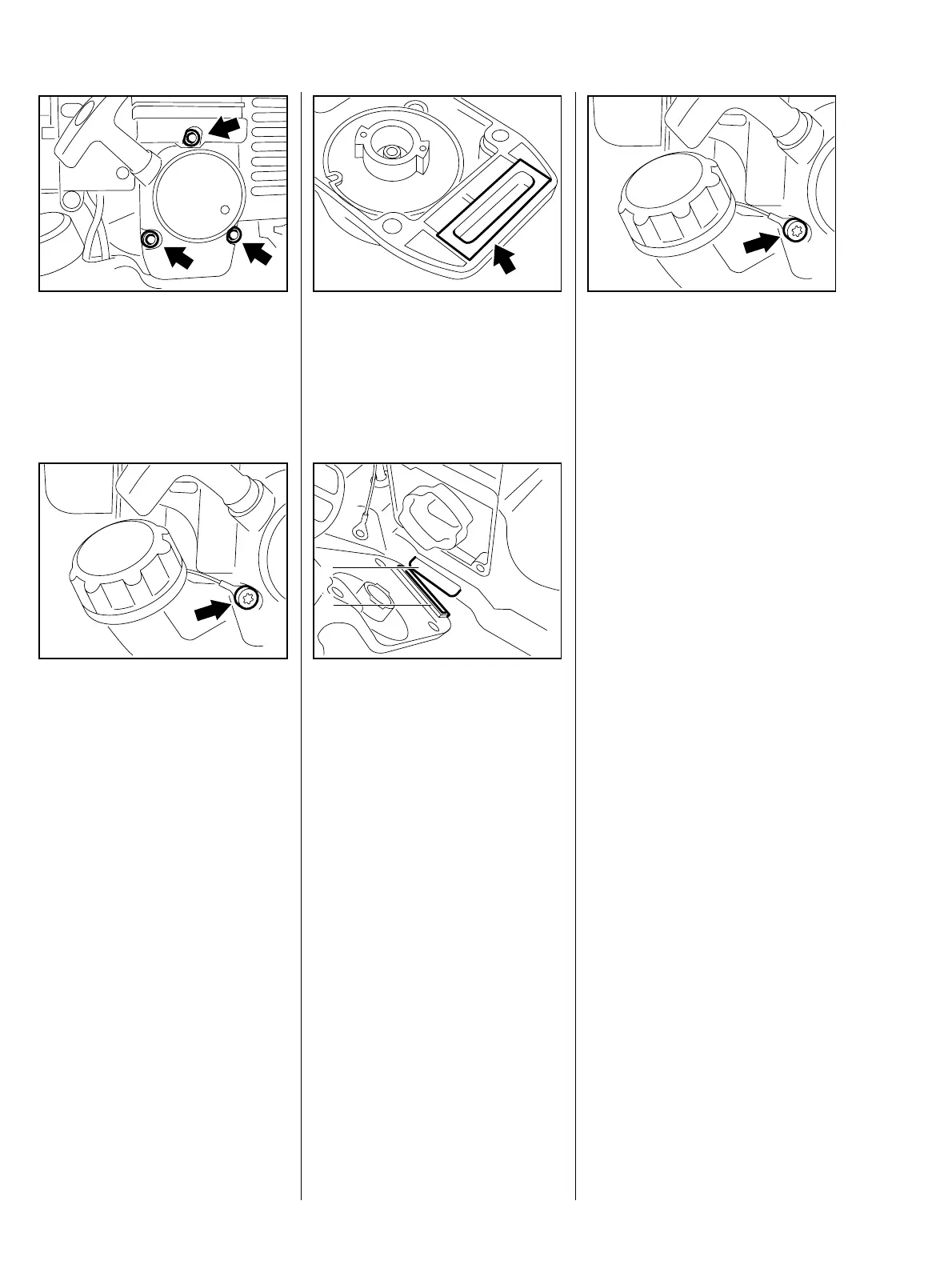

– Remove the shroud, b 5.1
: Take out the screws (arrows).
VA
366RA116
: On machines with one short
circuit wire, remove throttle cable
lug from lower screw (arrow).
– Remove the rewind starter.
Install in the reverse sequence.
936RA430
VA
: Check that the plug (arrow) in the
rewind starter is correctly seated.
Replace if damaged.
VA
936RA037
: Fit the rewind starter so that the
lug (1) engages the plug (2).
VA
936RA038
1
2
: On machines with one short
circuit wire, secure the throttle
cable lug with the lower screw
(arrow).
– Tighten down the screws firmly,
b 3.2
936RA430
VA
Assemble all other parts in the
reverse sequence.
6.2 Removing and Installing
