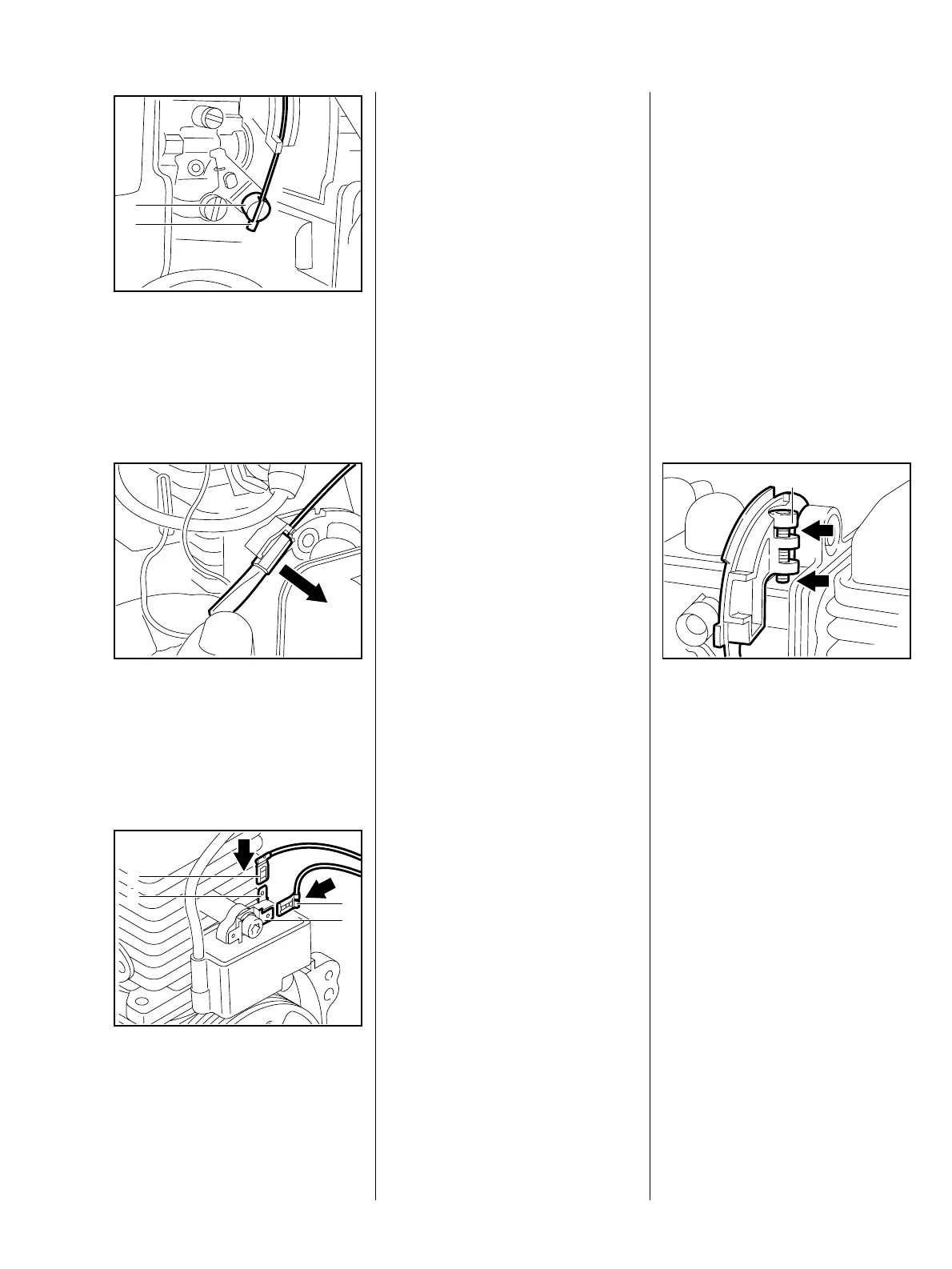

– Remove the shroud, b 5.1
: Disconnect throttle cable nipple
(1) from slotted pin (2) on
carburetor’s throttle lever.
VA
936RA150
2
1
: Pull the throttle cable out of the
tensioner.
– Take the throttle cable out of the
throttle trigger, b 8.3.1
VA
936RA117
: Pull the short circuit wire’s
connector (1) off the tag (2).
: Pull the connector (3) off the
tag (4).
VA
936RA376
3
2
4
1
Install in the reverse sequence. The carburetor’s throttle lever must
butt against the stop on the
carburetor cover when the throttle
trigger is fully depressed (full
throttle) and against the idle speed
screw (LA) when the throttle trigger
is released (idle position).
Adjustments are carried out on the
tensioner.
– Remove the shroud, b 5.1
: Before starting the adjustment,
center the adjusting screw (1) as
shown.
VA
936RA377
1
8.3.3 Throttle Cable 8.4 Adjusting the Throttle
Cable
