Stihl FS 80 Service Manual

64 FC 75, FC 85, FH 75, FS 75, FS 80, FS 85, HL 75, KM 85, KW 85

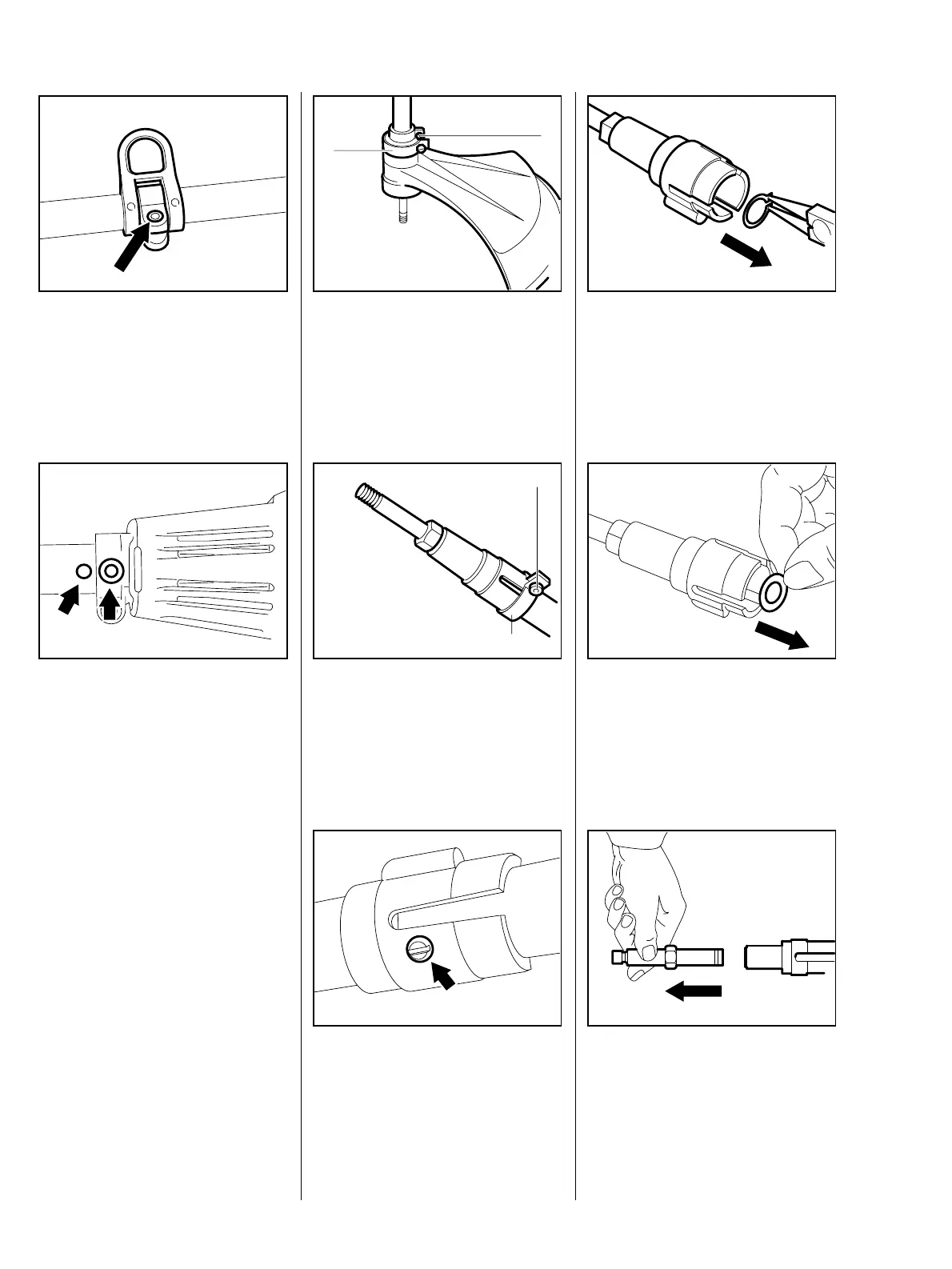

: Loosen the screw (arrow) on the
carrying ring.
– Pull off the carrying ring.
Install in the reverse sequence.
VA
936RA067
: Push home the drive tube until
the holes (arrows) line up.
– Tighten down the fixing screw
and clamp screw firmly, b 3.2
VA
936RA243
: Loosen the screw (1) on the
clamp (2).
– Pull the deflector off the bearing
housing.
936RA348
VA
2
1
: Loosen the screw (1) on the
clamp (2) on the bearing
housing.
– Remove the clamp.
VA
936RA349
1
2
: Take out the fixing screw (arrow).
– Pull the bearing housing off the
drive tube.
VA
936RA351
: Remove the circlip from the
output shaft.
VA
936RA352
: Remove the washer from the
output shaft.
VA
936RA353
: Pull out the output shaft.
VA
936RA354
10.5 Bearing Housing
(FS 75 only)
