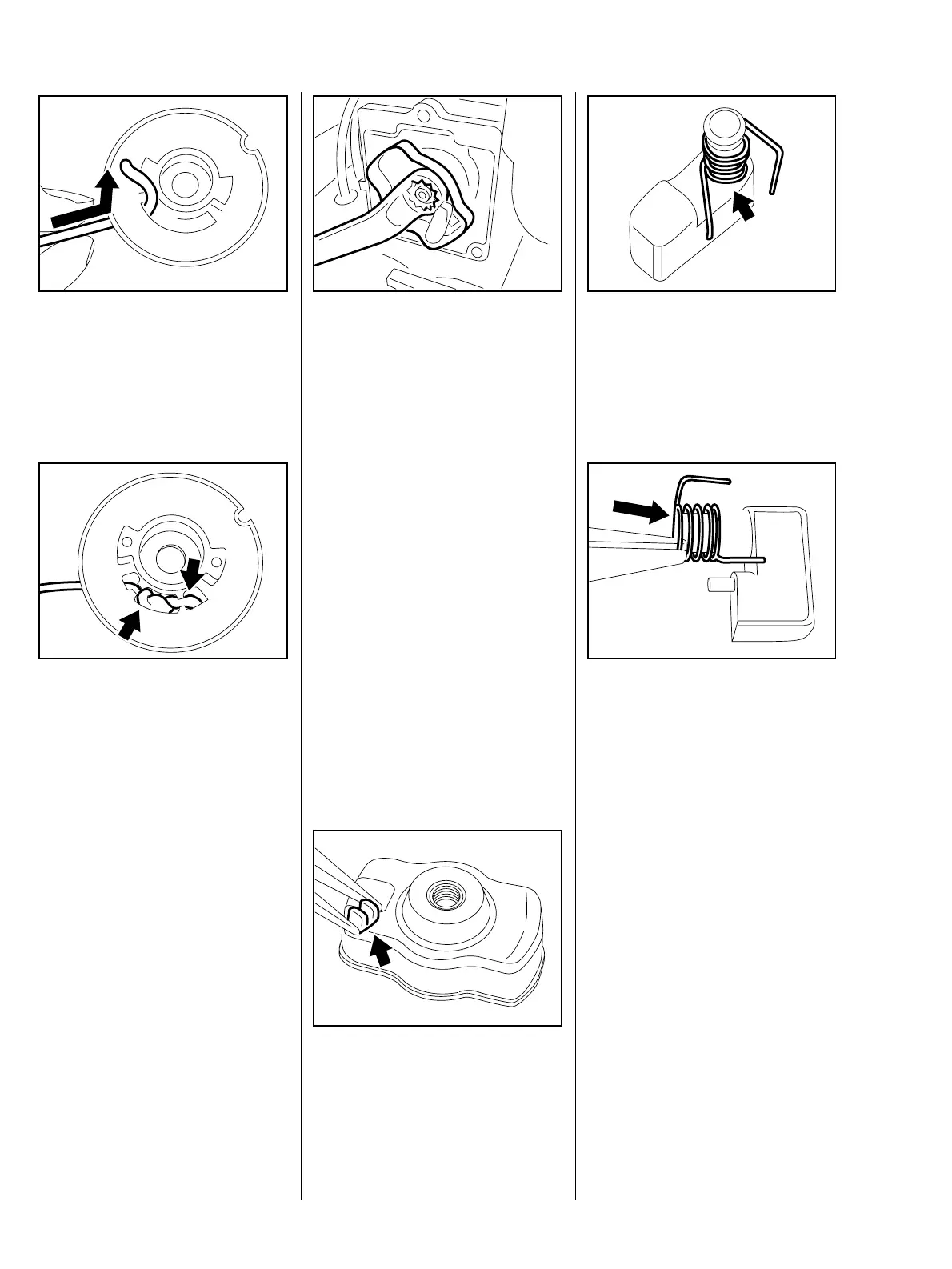

: Thread the starter rope through
the hole in the side of the rotor.
– Secure the rope with a simple
overhand knot.
VA
936RA050
: Pull the rope back into the rotor
until the knot locates in the
recess.
: Press the end of the rope into the
slot.
– Install the rope rotor, b 6.3
VA
936RA051
– Tension the rewind spring,
b 6.3.1
Assemble all other parts in the
reverse sequence.
– Unscrew the spark plug and
block the piston with the locking
strip 0000 893 5903, b 5.2
– Remove the rewind starter,
b 6.2
: Unscrew the carrier from the
VA
936RA053
crankshaft.
: Squeeze the ends of the pawl’s
peg together.
– Take the pawl out of the carrier.
VA
936RA054
: Take the torsion spring (arrow) off
the pawl.
VA
936RA055
: Push the torsion spring over the
new pawl.
VA
936RA056
6.6 Carrier/Pawl
