Stihl FS 80 Service Manual

63FC 75, FC 85, FH 75, FS 75, FS 80, FS 85, HL 75, KM 85, KW 85

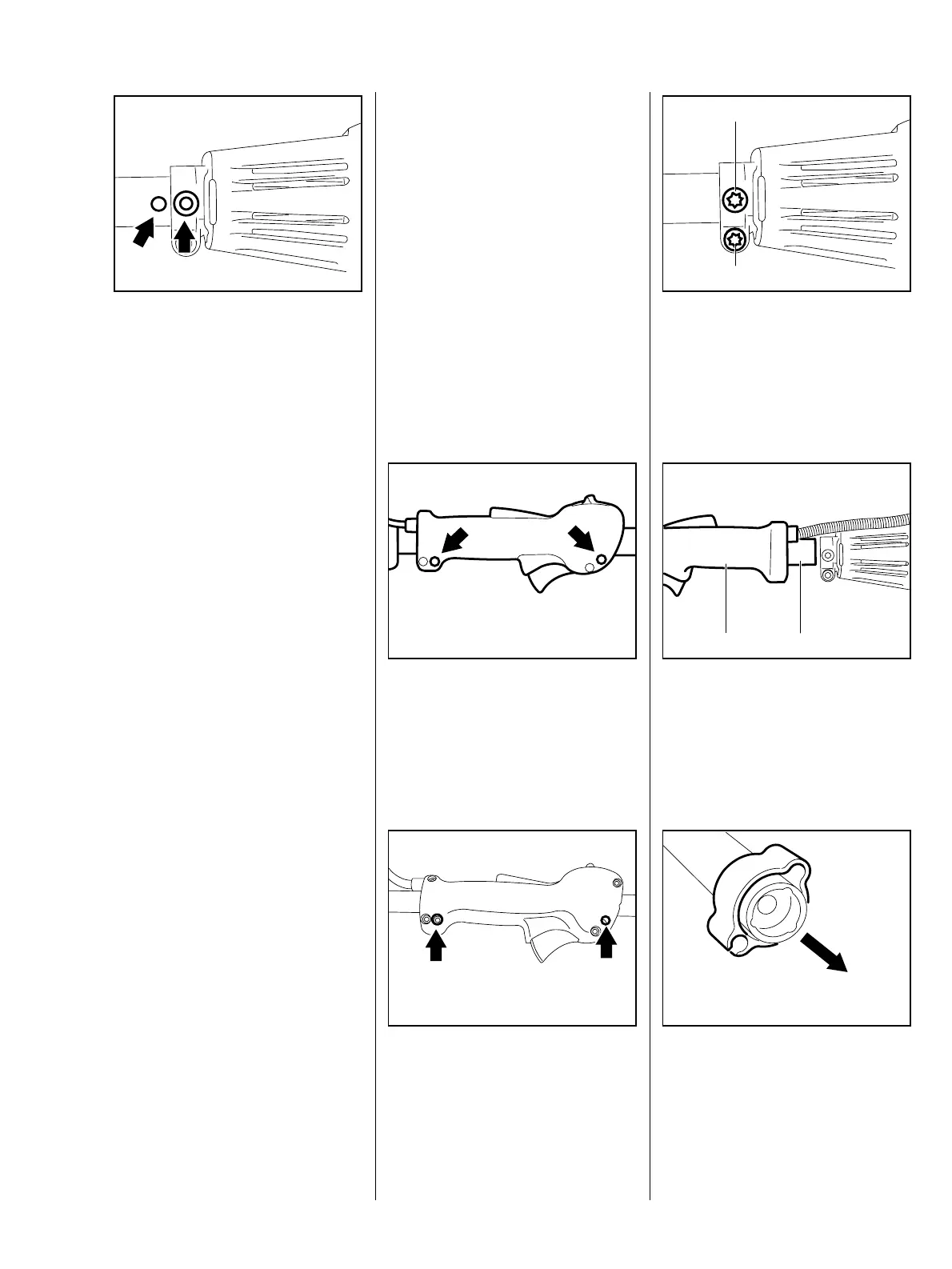

: Push home the drive tube until
the holes (arrows) line up.
– Tighten down the fixing screw
and clamp screw firmly, b 3.2
VA
936RA243
– Remove the drive shaft,
b 10.3.1
– Remove the bike handle, b 10.1
– Remove the loop handle, b 10.2
Version with loop handle
up to 2002
: Loosen the clamp screws
(arrows) in the control handle.
VA
936RA066
Version with loop handle
from 2002
: Loosen the clamp screws
(arrows) in the control handle.
VA
936RA313
: Take the fixing screw (1) out of
the AV sleeve.
: Loosen the clamp screw (2).
VA
936RA233
1
2
– Pull out the drive tube.
: On loop-handled machines, pull
the drive tube (1) out of the
control handle (2) at the same
time.
VA
936RA210
2 1
: Pull off the throttle cable retainer
(if fitted).
VA
936RA211
10.4.2 Split Drive Tube
(KM 85 only)
