41FC 75, FC 85, FH 75, FS 75, FS 80, FS 85, HL 75, KM 85, KW 85
– Make sure the throttle cable and
protective tube are correctly
positioned.
– Tighten down the screws firmly,
b 3.2
– Open the throttle wide several
times so that the slide
automatically takes up any slack
in the throttle cable.
– Remove the throttle trigger with
interlock lever, b 8.7.1

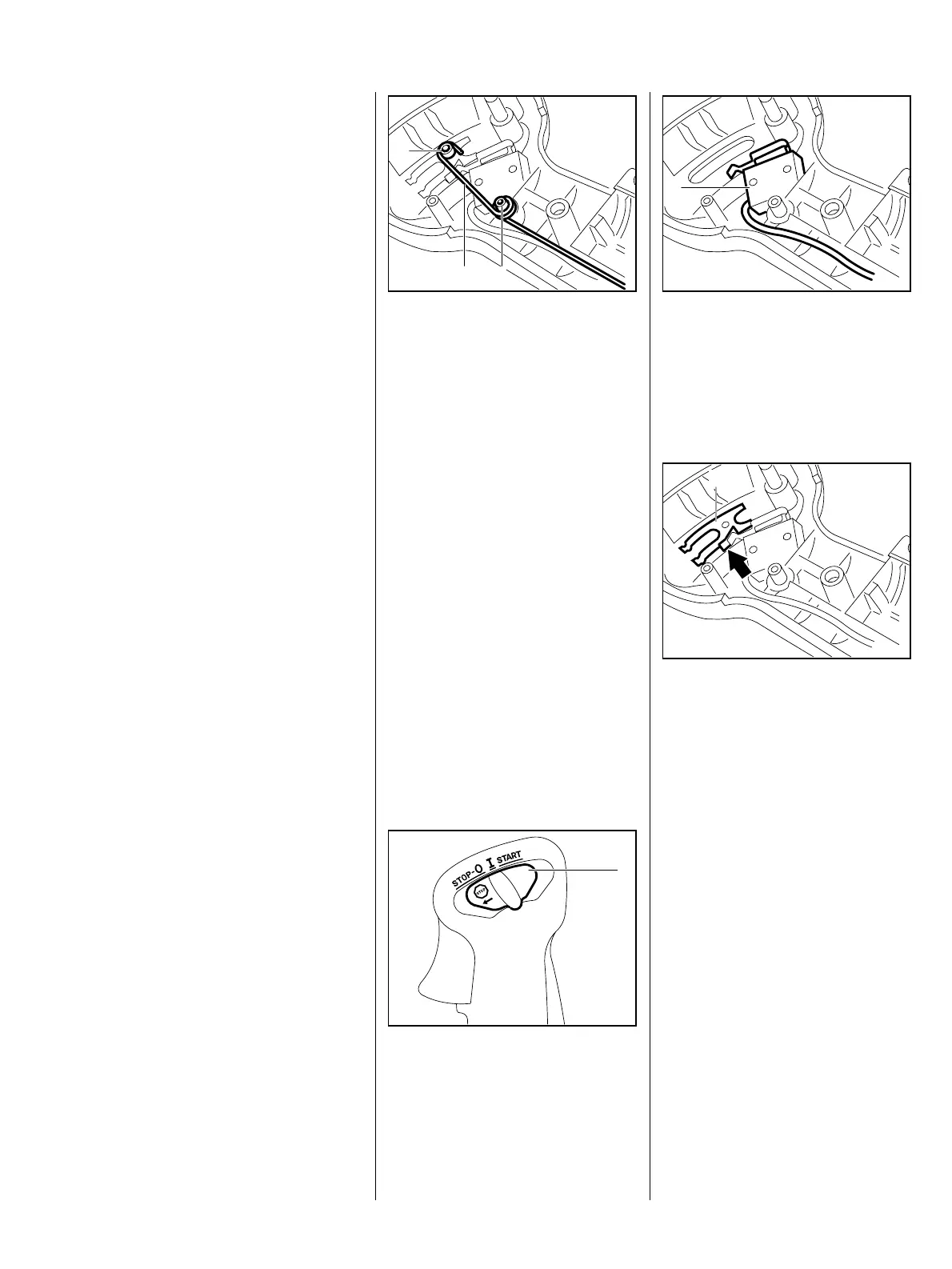

: Unscrew the collar screw (1) from
the slide control.
: Remove the contact spring (2)
from the pivot (3).
VA
932RA218
2
1
3
: Pull the slide control (1) out of the
handle molding.
VA
932RA221
: Pry the stop switch (1) with wires
out of the handle molding.
Install in the reverse sequence.
VA
932RA220
1
Make sure the short circuit wires are
correctly positioned.
: When fitting the detent spring (1),
make sure that the connector tag
(arrow) points up in the direction
of the stop switch.
VA
932RA219
1
Assemble all other parts in the
reverse sequence.
8.7.2 Contact/Detent Spring
