Stihl FS 80 Service Manual

37FC 75, FC 85, FH 75, FS 75, FS 80, FS 85, HL 75, KM 85, KW 85
To avoid the risk of electrocution, do
not start the engine while the control
handle is exposed.
FS 75, 80, 85 only

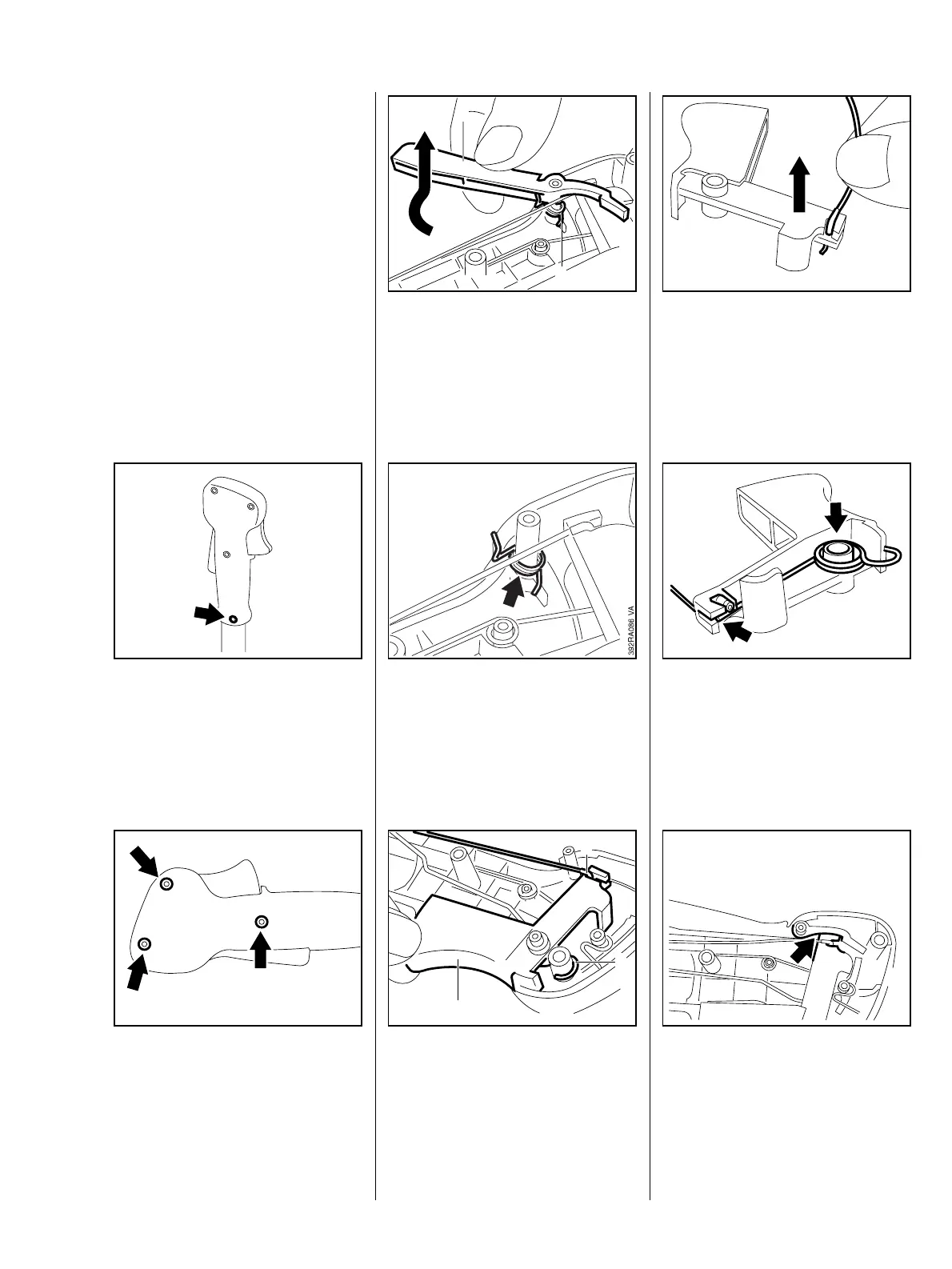

: Take out the screw (arrow).
: Pull the handle off the handlebar.
392RA083
VA
: Take out the screws (arrows).
– Separate the handle moldings.
936RA429
VA
: Lift the interlock lever (1) slightly
and turn it sideways until the
torsion spring (2) is relaxed.
: Pull the interlock lever off the
pivot.
VA
936RA425
1
2
: Remove the torsion spring
(arrow).
: Pull the throttle trigger (1) with
torsion spring (2) and attached
throttle cable (3) off the pivot.
VA
936RA426
3
1
2
: Disconnect throttle cable from
the throttle trigger.
Install in the reverse sequence.
VA
936RA427
: After attaching the throttle cable,
fit the torsion spring over the pivot
(arrow) and push its long leg into
the slot.
392RA089
VA
: The interlock lever must be
behind the throttle trigger.
– Tighten down the handle molding
mounting screws firmly, b 3.2
392RA090
VA
8.6 Control Handle on Bike Handle up to 2002
8.6.1 Throttle Trigger/Interlock Lever
