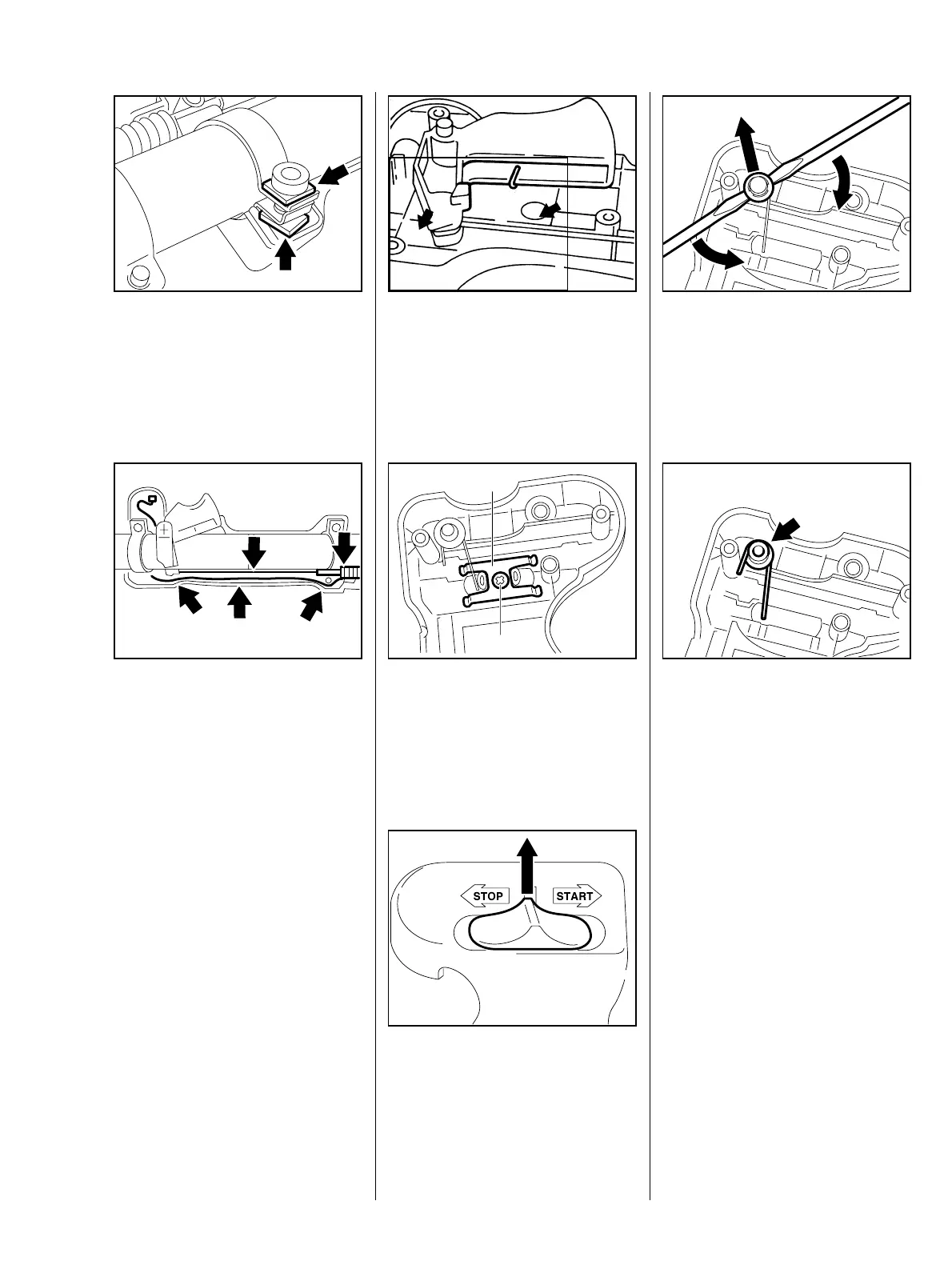

: Fit square washer on both sides
of the clamps (arrows).
Secure screws only fingertight at
this stage.
VA
936RA128
: Make sure the short circuit wires,
throttle cable and tube are
correctly positioned in the inner
handle molding (arrows).
– Tighten down the screws firmly,
b 3.2
VA
936RA129
Assemble all other parts in the
reverse sequence.
FC 75, FS 75, 80, 85, HL 75 only
– Remove the throttle trigger, b
8.1.1
: Pull the short circuit wires
(arrows) off the connector tags.
982RA073
: Take out the collar screw (1).
: remove the detent spring (2).
VA
936RA141
2
1
: Pull the slide control out of the
handle molding.
VA
936RA148
: Carefully pry the push nut off the
pivot.
VA
936RA143
: Remove the torsion spring from
the pivot.
Install in the reverse sequence.
VA
936RA144
8.1.2 Detent/Torsion Spring
