Stihl FS 80 Service Manual

28 FC 75, FC 85, FH 75, FS 75, FS 80, FS 85, HL 75, KM 85, KW 85
FC 75, FS 75, 80, 85, HL 75 only

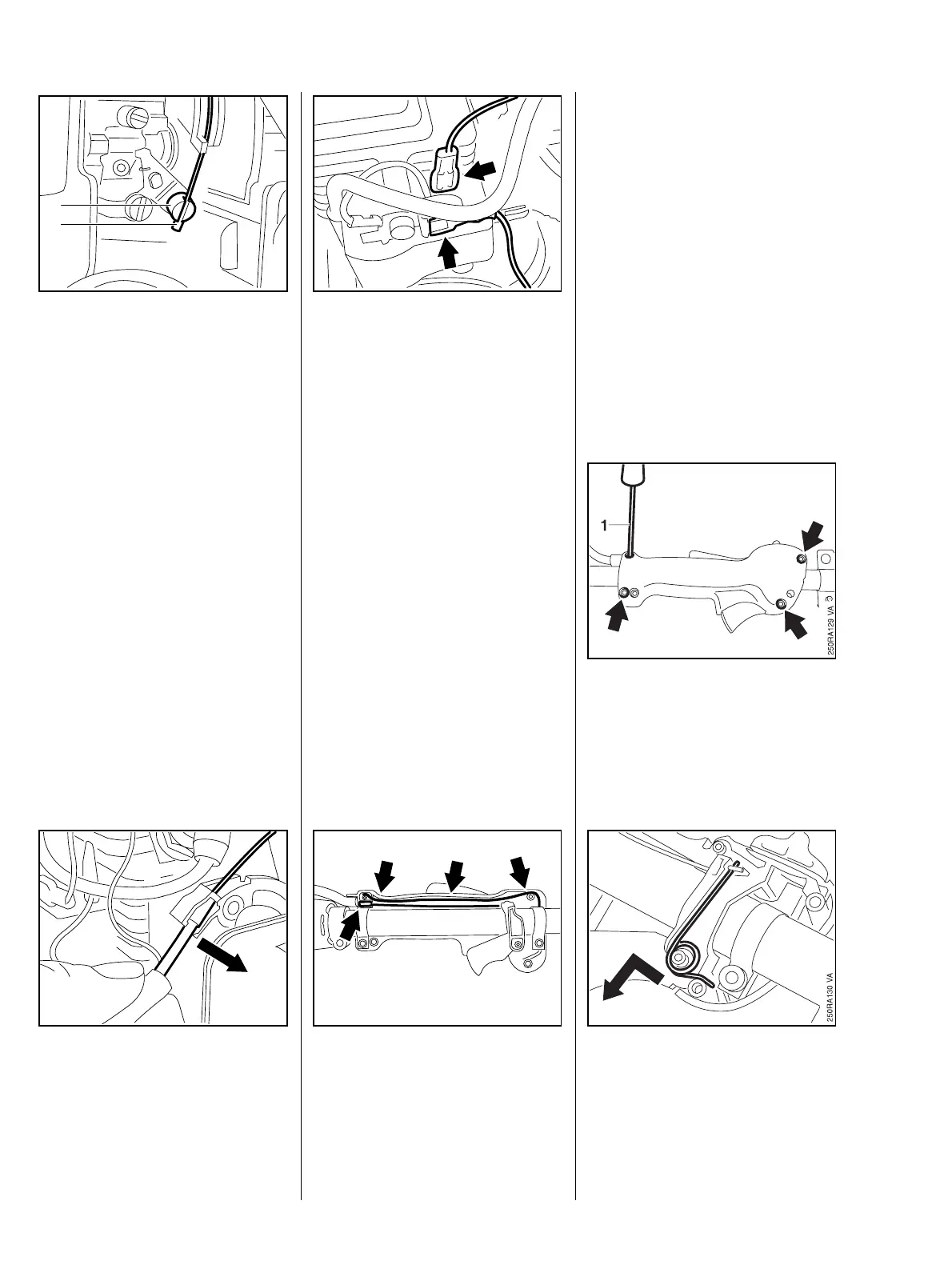

– Remove the shroud, b 5.1
: Disconnect throttle cable nipple
(1) from slotted pin (2) on throttle
lever.
VA
936RA150
2
1
: Pull the throttle cable out of the
tensioner.
VA
936RA151
: Pull the connectors (arrows) off
the tags on the ignition module.
– Remove the throttle trigger,
b 8.1.1
– Pull the short circuit wires off the
connector tags in the control
VA
936RA152
handle, b 8.1.2
Install in the reverse sequence.
: Position the short circuit wires,
throttle cable and tube in the
inner handle molding.
Assemble all other parts in the
reverse sequence.
VA
936RA154
To avoid the risk of electrocution, do
not start the engine while the control
handle is exposed.
All models except KM 85
: Take out the screws (arrows).
– Remove the handle molding.
: Remove the torsion spring.
8.1.3 Throttle Cable 8.2 Control Handle up to 2002
8.2.1 Throttle Trigger/Interlock
Lever
