Sungrow SG20RT User Manual

94

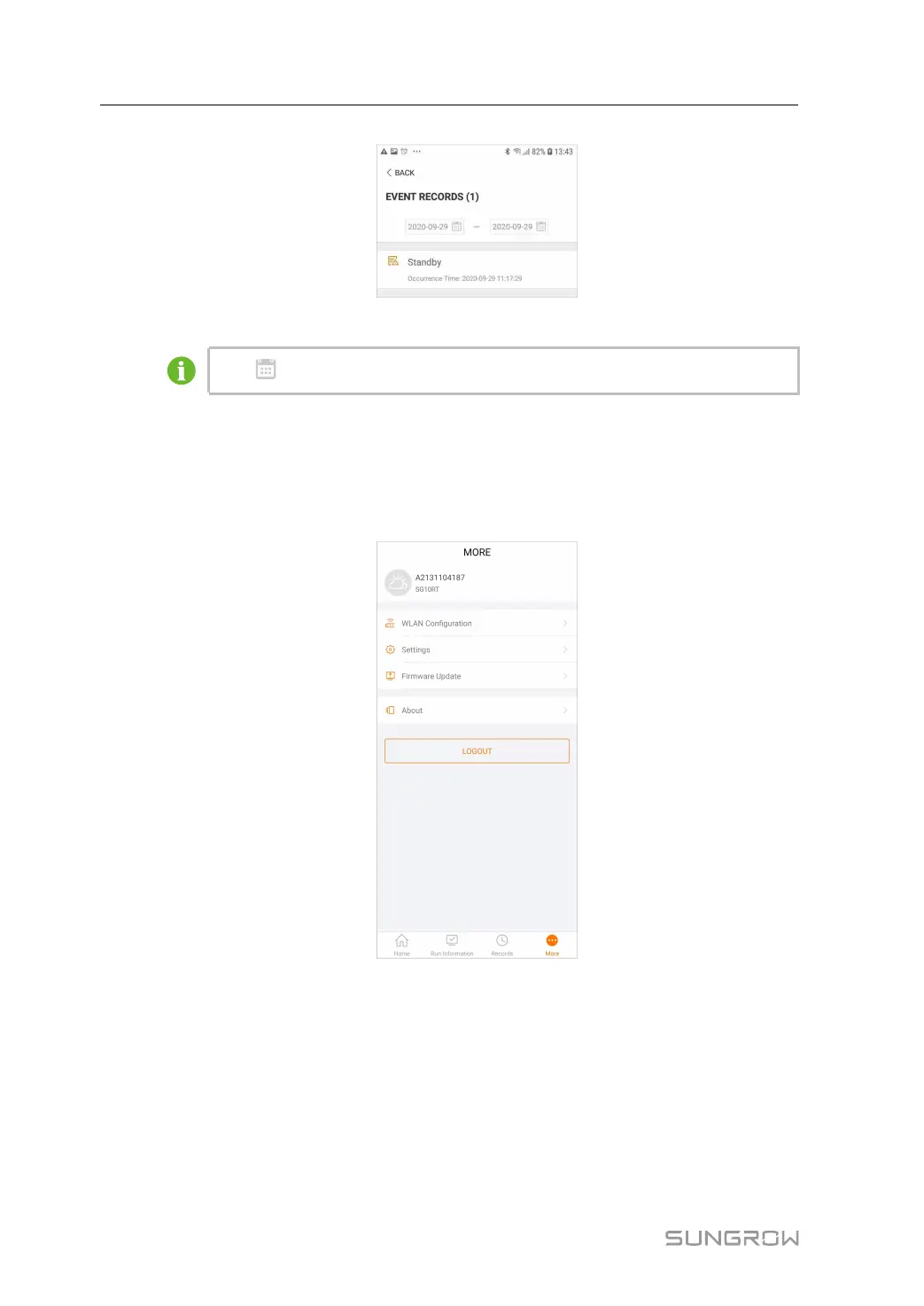

figure 7-10 Event Record
Click to select a time segment and view corresponding records.
7.10 More
Tap More on the navigation bar to enter the corresponding screen, as shown in the following
figure.
figure 7-11 More
In addition to viewing the WLAN configuration and App software version, the More screen
supports the following operations:
• Set parameters including inverter system parameters, operation parameters, power reg-
ulation parameters and communication parameters.
• Upgrade inverter firmware.
7 iSolarCloud App User Manual

Sungrow SG20RT Specifications

General

Model	SG20RT
Category	Inverter
Max. DC Voltage	1100 V
Rated AC Power Output	20 kW
Max. Efficiency	98.6%
Max. DC Input Power	30 kW
Max. Input Voltage	1100 V
Start Voltage	200 V
Number of MPPTs	2
Number of DC Inputs per MPPT	2
Max. AC Apparent Power	22 kVA
Rated Grid Frequency	50 Hz / 60 Hz
Max. Output Current	32 A
Power Factor at Rated Power	>0.99
THDi	<3%
DC Switch	Yes
Protection Class	IP65
Cooling Method	Natural Convection
Protection Degree	IP65
Protection Level	IP65
MPPT Voltage Range	200 V - 1000 V
Operating Temperature Range	-25°C to +60°C
Input Voltage Range	200 V - 1000 V
MPPT Range	200 V - 1000 V
AC Voltage Range	310 V - 480 V
