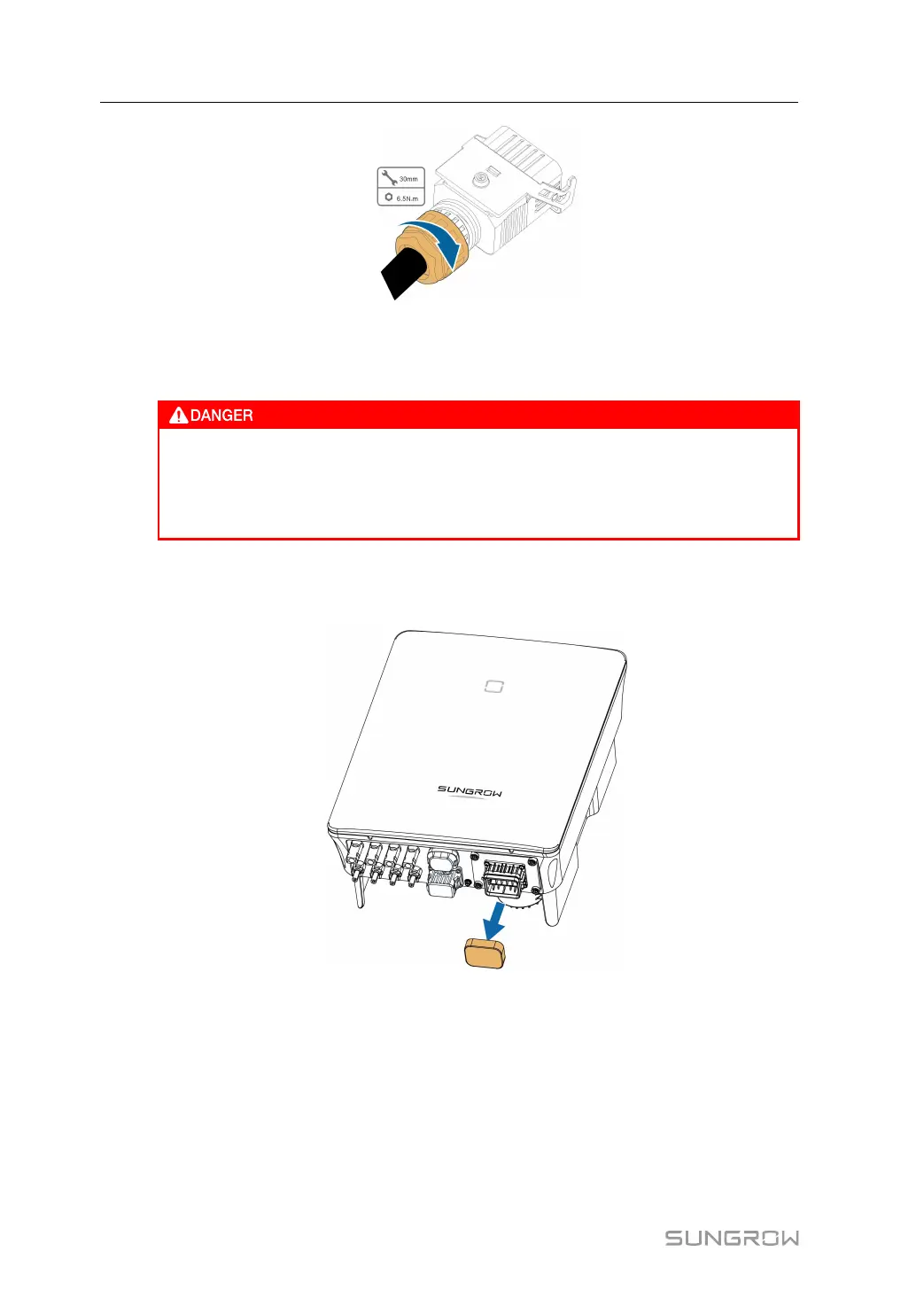

5.5.3 Installing the AC Connector (< 15 kW)
High voltage may be present in inverter!
Ensure all cables are voltage-free before electrical connection.
Do not connect the AC circuit breaker until all inverter electrical connections are
completed.
step 1 Disconnect the AC circuit breaker and secure it against reconnection.
step 2 Remove the waterproof lid from the AC terminal.
step 3 Lift the locking part upwards and insert the AC connector into the AC terminal on the bottom
side of the inverter. Then press the locking part and secure it with the screw.
5 Electrical Connection User Manual

Sungrow SG20RT Specifications

General

Model	SG20RT
Category	Inverter
Max. DC Voltage	1100 V
Rated AC Power Output	20 kW
Max. Efficiency	98.6%
Max. DC Input Power	30 kW
Max. Input Voltage	1100 V
Start Voltage	200 V
Number of MPPTs	2
Number of DC Inputs per MPPT	2
Max. AC Apparent Power	22 kVA
Rated Grid Frequency	50 Hz / 60 Hz
Max. Output Current	32 A
Power Factor at Rated Power	>0.99
THDi	<3%
DC Switch	Yes
Protection Class	IP65
Cooling Method	Natural Convection
Protection Degree	IP65
Protection Level	IP65
MPPT Voltage Range	200 V - 1000 V
Operating Temperature Range	-25°C to +60°C
Input Voltage Range	200 V - 1000 V
MPPT Range	200 V - 1000 V
AC Voltage Range	310 V - 480 V
