Sungrow SG20RT User Manual

13

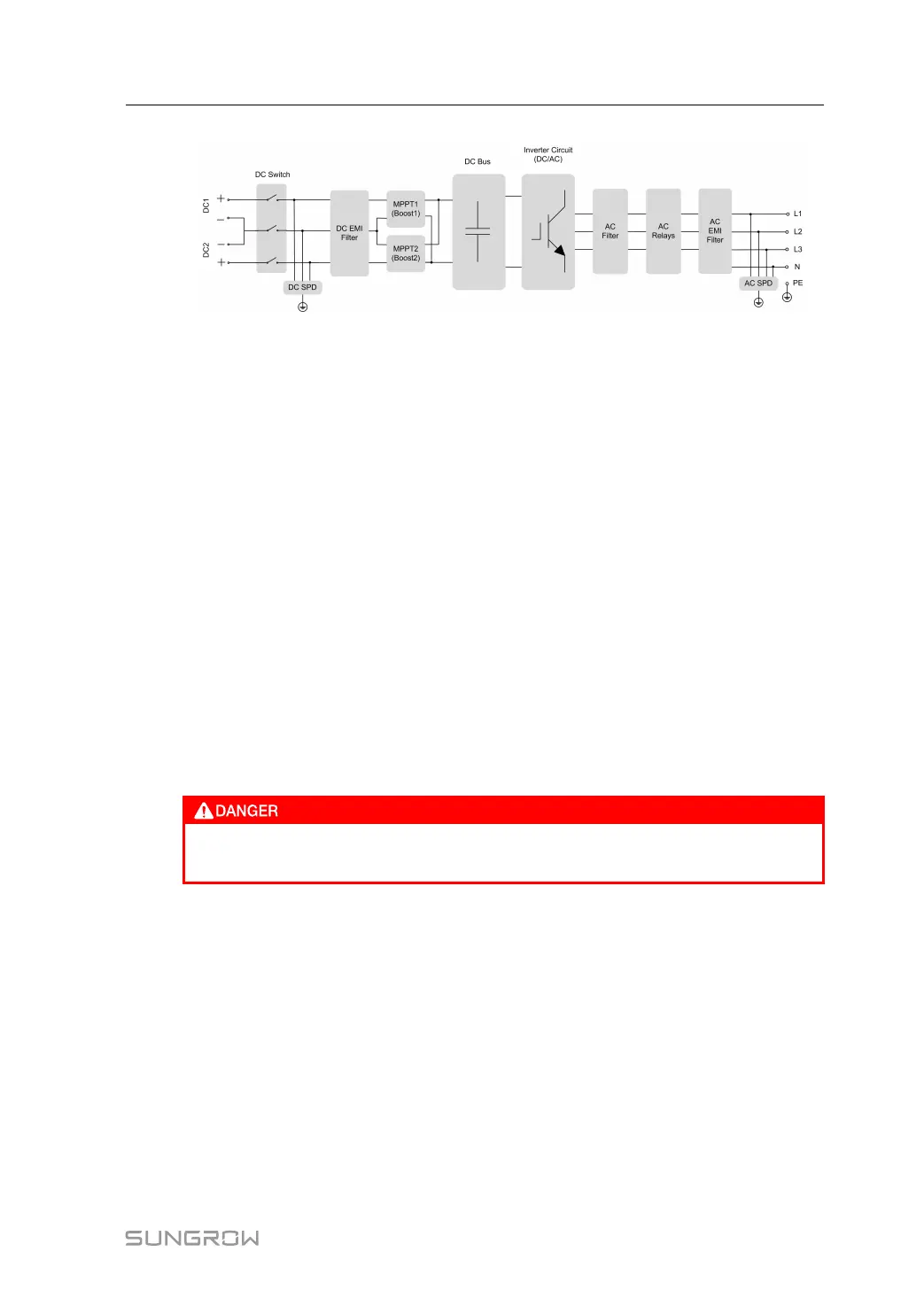

figure 2-4 Circuit Diagram (SG5.0RT for example)
• DC Switches can safely disconnect the PV input when necessary to ensure the safe op-
eration of the inverter and the safety of personnel.
• The DC SPD provides a discharge circuit for the DC side overvoltage to prevent it from
damaging the internal circuits of the inverter.
• EMI filters can filter out the electromagnetic interference inside the inverter to ensure that
the inverter meets the requirements of electromagnetic compatibility standards.
• The MPPT is used to ensure a maximum power from PV arrays at different PV input
conditions.
• The Inverter Circuit converts the DC power into grid-compliant AC power and feeds it into
the grid.
• The AC filter filters the output AC component of high frequency to ensure that the output
current meets the grid requirements.
• The AC relay isolates the AC output of the inverter from the grid, making the inverter safe
from the grid in case of inverter failure or grid failure.
• The AC SPD provides a discharge circuit for the AC side overvoltage to prevent it from
damaging the internal circuits of the inverter.
If the lightning level exceeds the protection level of the product, surge protection
and overvoltage protection may fail, resulting in electric shock and fatal injury!
2.6 Function Description
Basic Function
• Conversion function
The inverter converts the DC power from the PV array to the AC power, in conformity with
the grid requirements.
• Data storage
The inverter logs running information, error records, etc.
• Parameter configuration
User Manual 2 Product Description

Sungrow SG20RT Specifications

General

Model	SG20RT
Category	Inverter
Max. DC Voltage	1100 V
Rated AC Power Output	20 kW
Max. Efficiency	98.6%
Max. DC Input Power	30 kW
Max. Input Voltage	1100 V
Start Voltage	200 V
Number of MPPTs	2
Number of DC Inputs per MPPT	2
Max. AC Apparent Power	22 kVA
Rated Grid Frequency	50 Hz / 60 Hz
Max. Output Current	32 A
Power Factor at Rated Power	>0.99
THDi	<3%
DC Switch	Yes
Protection Class	IP65
Cooling Method	Natural Convection
Protection Degree	IP65
Protection Level	IP65
MPPT Voltage Range	200 V - 1000 V
Operating Temperature Range	-25°C to +60°C
Input Voltage Range	200 V - 1000 V
MPPT Range	200 V - 1000 V
AC Voltage Range	310 V - 480 V
