Move the inverter by two persons or proper moving devices.
Do not release the equipment unless it has been secured to the wall firmly.
5.3 Installing the Inverter
Inverter is installed to the wall by the backplate enclosed in the packing. If you do
not use the supplied backplate, you can drill holes as per specifications below:
32
2-M4X7
440
524
544
514
3-26X11

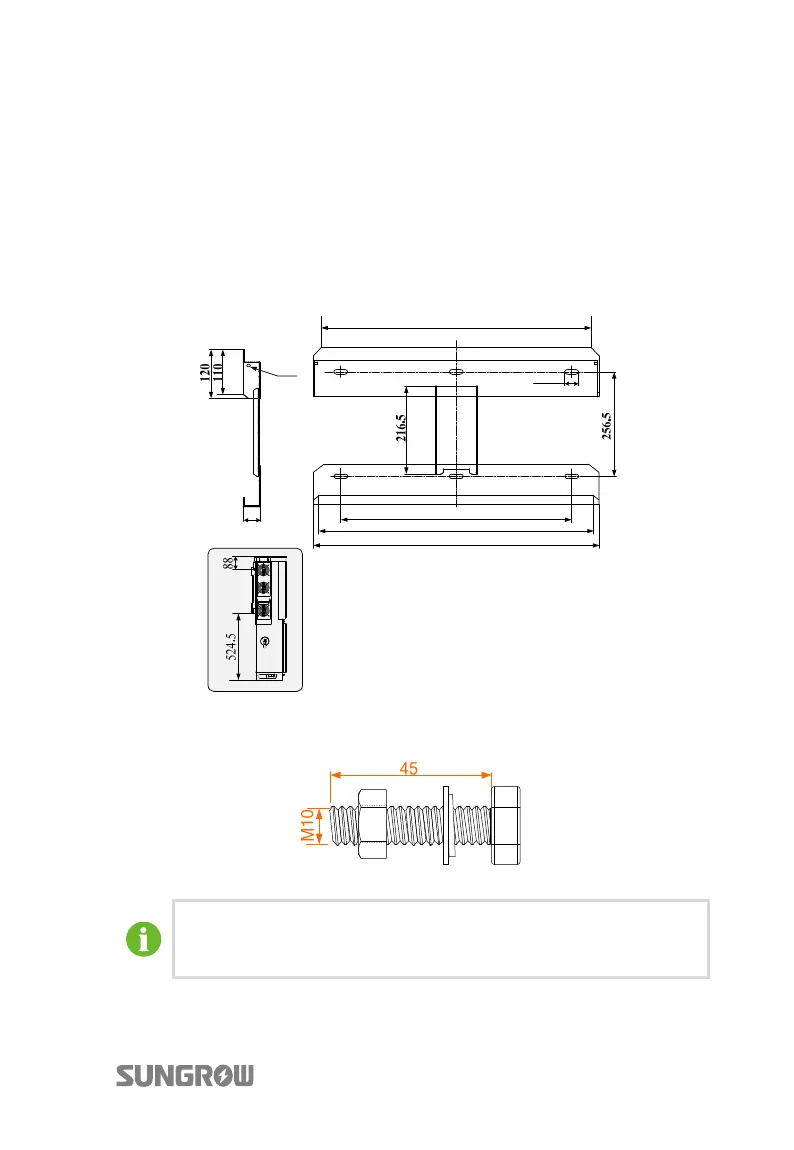

Fig. 5-1 Dimensions of the backplate (figures in mm)
The stainless fasteners are supplied for attaching the backplate to metal frame.
Fig. 5-2 Dimensions of fastener for metal frame (figures in mm)
To install the inverter to concrete walls, user needs to purchase
expansion bolts with proper size (recommended: M10*65) to fix the
backplate to the concrete walls.
