5 Mechanical Installation User Manual
24

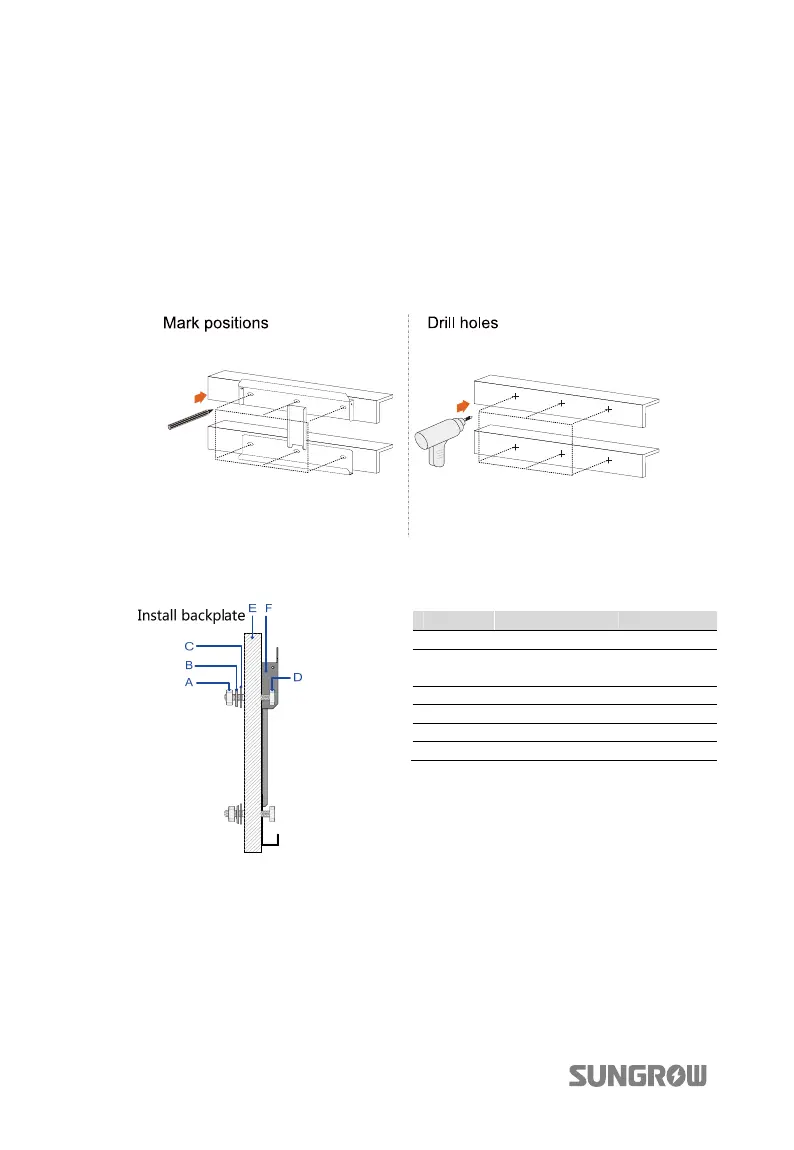

5.3.1 Installing to Metal Frame
Step 1
Remove the backplate and fasteners from the packaging.
Step 2
Place the backplate to the chosen metal frame and adjust it to proper position and
height.
Step 3
Mark the position for holes drilling according to the holes position of the backplate.
Step 4
Drill holes according to the marks make before. If the shape of the metal frame does
not match the backplate, re-drill holes on the backplate according to the metal frame
chooden.
Step 5
Secure the backplate to the metal frame firmly by the supplied fastener. Torque of the
fasten nut is 35 N
m.
Step 6
Install the inverter cap.
Step 7
Lift the inverter above the backplate and then slide down to make sure they match
perfectly.
Step 8
After putting the inverter on the backplate, secure the inverter to the backplate with
two M4
×
16 screws (fix screw hole has its own nut).
No. Name Description
A Hexagon nut M10
B
Spring
washer
-
C Flat washer -
D Screw bolt M10*45
E Metal frame -
F Backplate -
To Next Page
