User Manual 10 Operation of LCD Display
73

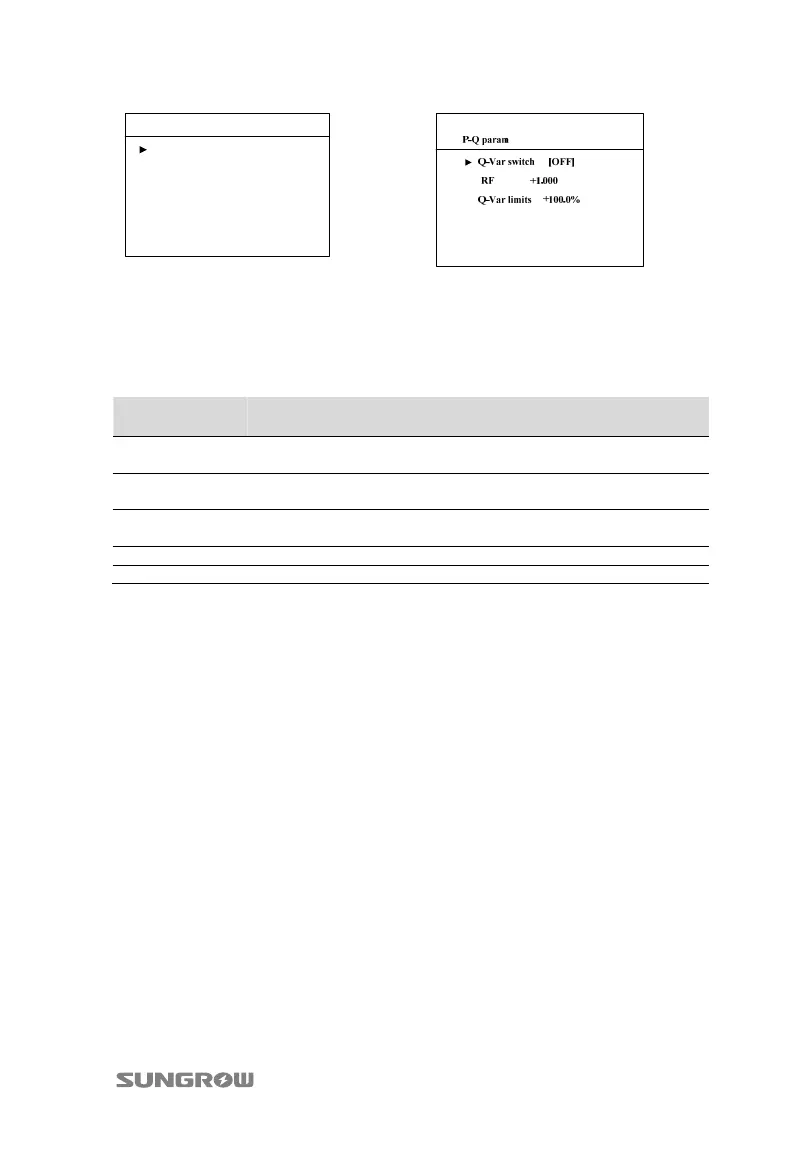

P-Q Param
Rate limit [ON/OFF]
P-W limits 110.0%
Power raise 100%/min
Power decline 6000%/min
Fault slowup [ON/OFF]
Slowup rate 10%/min
10.10.3 Reactive Power Regulation
Inverter provides reactive power regulation function. Use the “Q-Var switch”
parameter to activate this function and select proper regulation mode.
Tab. 10-5 Explanation of reactive power regulation switch
Regulation
Mode
Explanation
Pf
The reactive power can be regulated by the parameter PF (Power
Factor).
Qt
The reactive power can be regulated by the parameter Q-Var
limits (in %).
Off
The PF is limited to +1.000, and the “Q-Var limits” is limited to
0.0%.
Q(P) The PF changes with the output power of the inverter.
Q(U) The reactive power changes with the grid voltage.
“Pf” Mode
The reactive power can be regulated by the parameter PF on the Run-param screen.
“Qt” Mode
The reactive power can be regulated by the parameter Q-Var limits (in %) on the
Run-param screen.
“Off” Mode
Reactive power cannot be regulated. The PF is limited to +1.000, and the Q-Var limit
is limited to 0.0%.
