6 Electrical Connection
Once the inverter is secured to the installation site, it can be connected to the PV
system.
All electrical connection must comply with local regulations and related electrical
rules (AS 4777.1 etc.).
Improper cable connection may lead to fetal personal injury or device
permanent damages.
Cable connection can be done only by professional personnel.
Always keep in mind that the inverter is dual power supplied. Electrical
operators must wear proper personal protective equipment: helmet,
insulated footwear and glove, etc.
6.1 Terminal Description

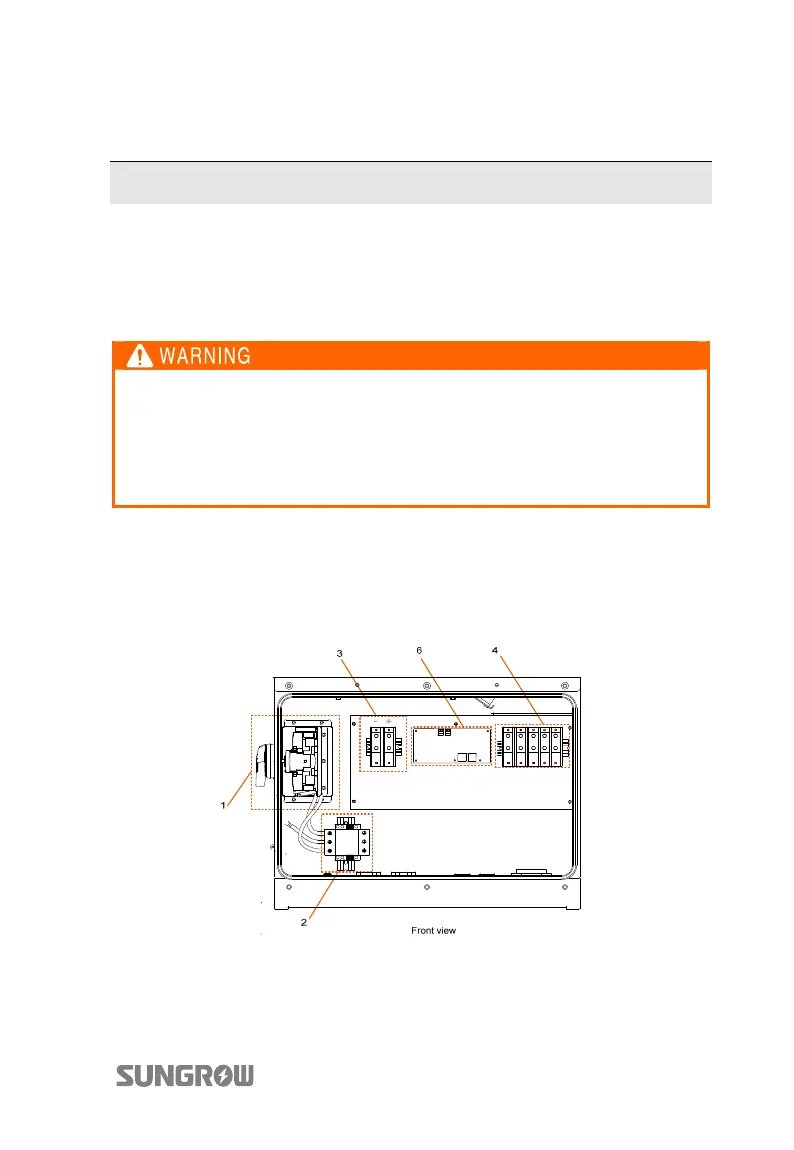

Inverter electrical connection terminals and cable entries are all at the inverter
junction box as shown in Fig. 6-1.
