ELECTRICAL 4-11

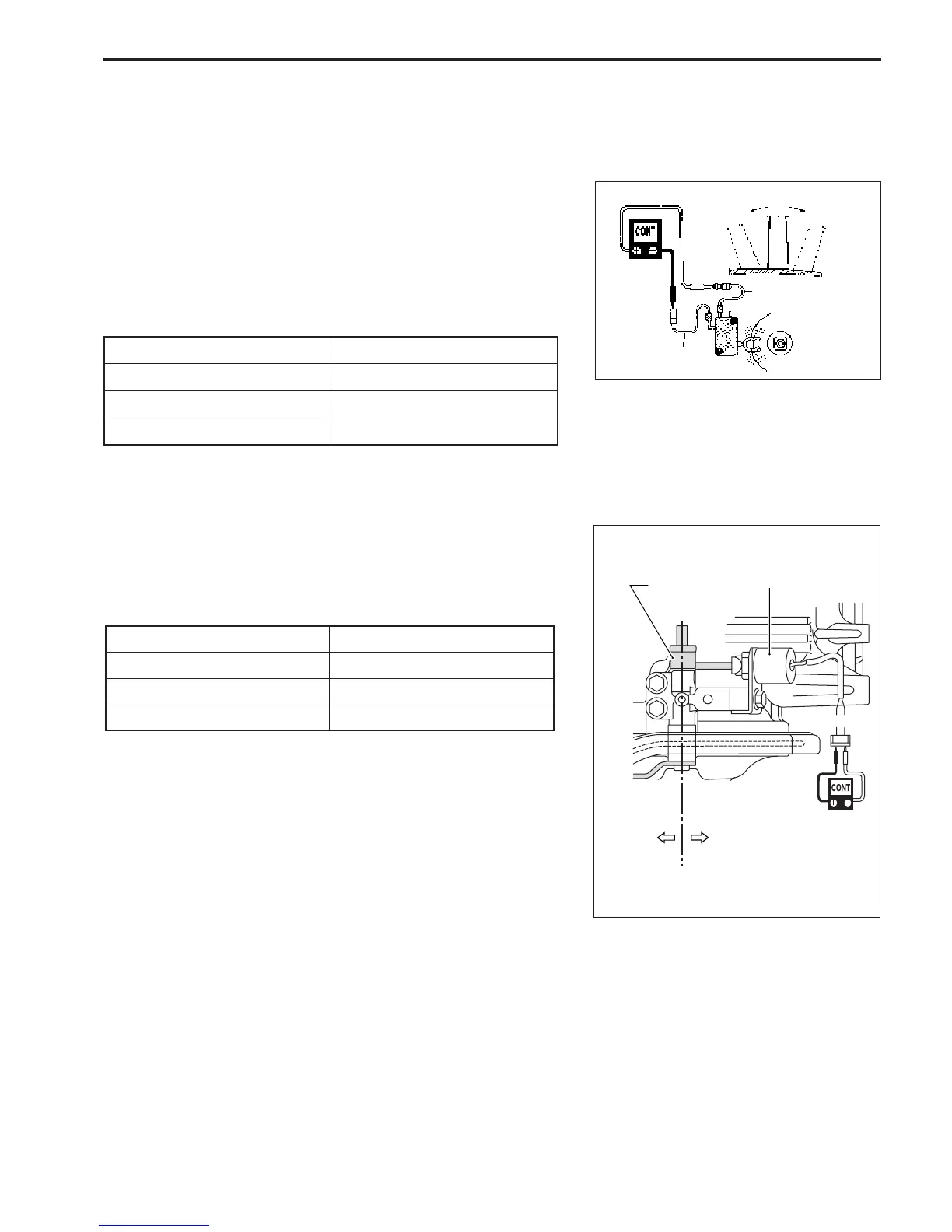

NEUTRAL SWITCH
Inspect continuity of neutral switch.
\ 09930-99320 : Digital tester
T Tester range :
@@
@@
@ (Continuity)
Neutral switch in remo-con box
1. Disconnect neutral switch lead wires in remo-con box.
2. Inspect continuity between switch Brown lead wires while
operating remo-con handle.
If out of specification, replace neutral switch.
Neutral switch on cylinder block
1. Disconnect neutral switch lead wire connector.
2. Inspect continuity between Yellow/Green and Brown lead
wires while operating remo-con handle.
REVERSE FORWARD
Br
Br
Shift position Continuity
Neutral Yes
Forward No
Reverse No
Shift position
Neutral
Forward
Reverse
If out of specification :
• 1st Check switch position adjustment, readjust if necessary.
• 2nd Replace neutral switch.
NOTE:
After installing neutral switch, check for proper correct function
by operating remo-con handle.
Neutral switch
Forward
Reverse
Neutral
Clutch
lever
Br
Y/G
Continuity
Yes
No
No

Suzuki DF 90 Specifications

General

Steering	Remote
Starting System	Electric
Number of Cylinders	4
Trim Method	Power Trim and Tilt
Full Throttle Operating Range	5, 500 - 6, 300 rpm
Fuel System	Multi-point sequential electronic fuel injection
Ignition System	Fully-transistorized
Exhaust	Through Prop Hub Exhaust
Shaft Length	508 mm (20 in), 635 mm (25 in)
Fuel Type	Unleaded gasoline (87 octane or higher)
