Suzuki DF 90 Service Manual

DF90/115/140 “K3” (‘03) MODEL 13-29
ECM
To starter magnetic switch "B" terminal
Red lead wire
Main harness
PTT motor relay plate
PTT motor relay cable GND
White lead wire (To 30A fuse)
Joint connector
To ignition coil and fuel injector
Main wiring harness
ECM connector
To remo-con connector
PTT motor relay “DOWN”
PTT motor relay “UP”
Sub fuse(30A)
Fuse terminal nut
Fuse terminal bolt
Main fuse terminal
Electric parts holder
Cushion
Electric parts holder
Communication connector / Cap
Starter relay
ECM main relay

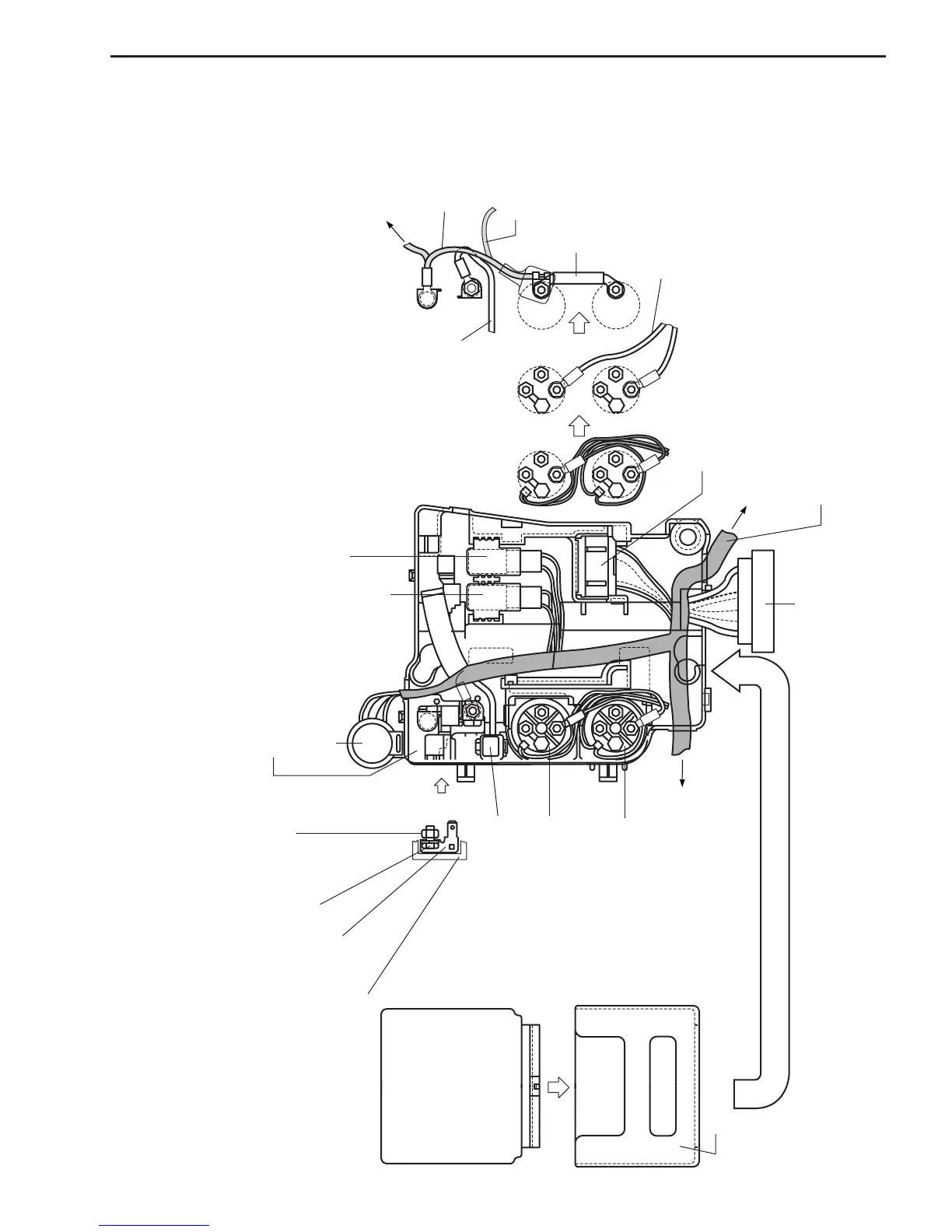

WIRE ROUTING

Suzuki DF 90 Specifications

General

Steering	Remote
Starting System	Electric
Number of Cylinders	4
Trim Method	Power Trim and Tilt
Full Throttle Operating Range	5, 500 - 6, 300 rpm
Fuel System	Multi-point sequential electronic fuel injection
Ignition System	Fully-transistorized
Exhaust	Through Prop Hub Exhaust
Shaft Length	508 mm (20 in), 635 mm (25 in)
Fuel Type	Unleaded gasoline (87 octane or higher)
