18-24 DF90/115/140 “K8” (’08) MODEL
MODIFICATION OF HARNESS CONNECTION
For operating the digital gauge, disconnect the gauge connector A from gauge connector B, and connect
the gauge connector A to the SDS communication connector as shown in the illustration.

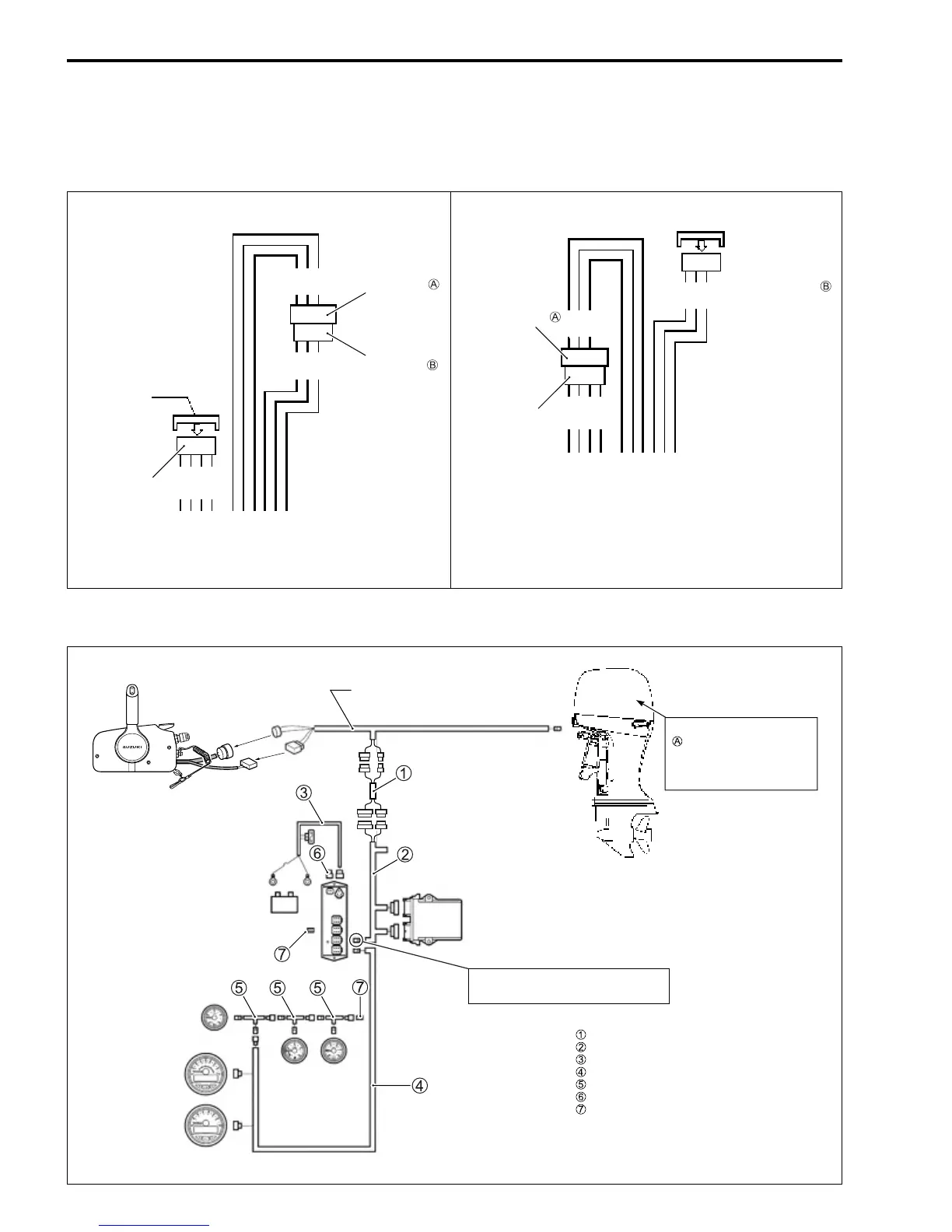

DIGITAL GAUGE AND RELATED PARTS CONNECTION
Standard gauge Digital gauge
SDS communication
connector
SDS communication
connector
Cap
Cap
B Gr O/Y Y
B Gr O/Y Y
Bl/B G/W P/W
Bl/B G/W P/W
Bl/B G/W P/W
Bl/B G/W P/W
Gauge connector
Gauge connector
Gauge connector
Gauge connector
Active hub
Battery
Fuel gauge
Volt meter
Trim gauge
Speedometer
Tachometer
Interface Module
Connect this connector to “ENGINE 1”
or “ENGINE 2” of the hub.
Remote control wire
Interface module harness adaptor
Interface harness
Active hub power harness
3” gauge harness
2” gauge harness
Jumper wire
6 pin connector cap
Connect the gauge connector
of engine harness to SDS
communication connector.
(See MODIFICATION OF
HARNESS CONNECTION)

Suzuki DF 90 Specifications

General

Steering	Remote
Starting System	Electric
Number of Cylinders	4
Trim Method	Power Trim and Tilt
Full Throttle Operating Range	5, 500 - 6, 300 rpm
Fuel System	Multi-point sequential electronic fuel injection
Ignition System	Fully-transistorized
Exhaust	Through Prop Hub Exhaust
Shaft Length	508 mm (20 in), 635 mm (25 in)
Fuel Type	Unleaded gasoline (87 octane or higher)
