6-6 POWER UNIT

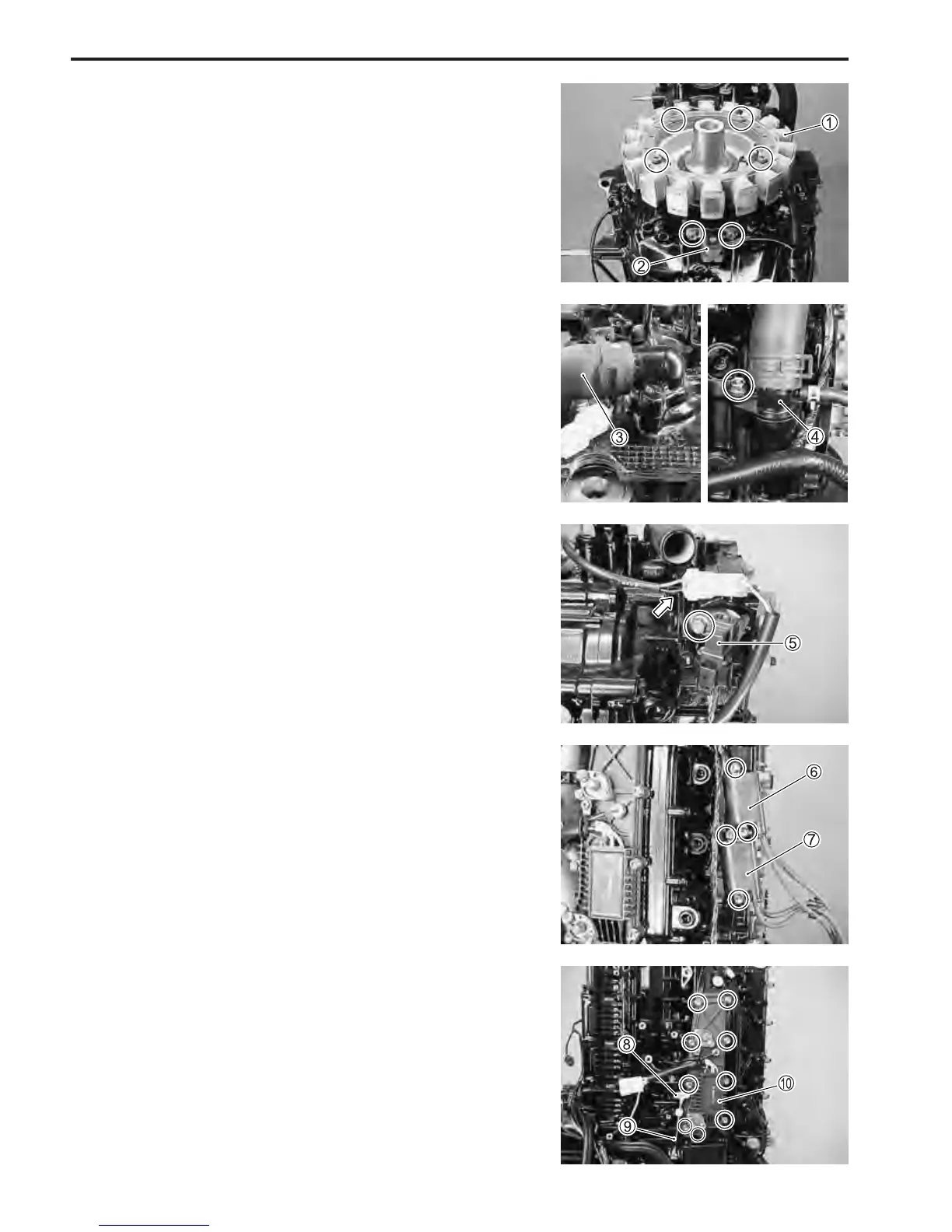

9. Disconnect water return hose 3 from thermostat cover.
10. Remove bolt and water return hose pipe
4.
7. Remove battery charge coil
1. (See page 4-5)
8. Remove CKP sensor
2.(See page 3-53)
13. Disconnect two ignition coil connectors, then remove four
bolts and ignition coil
6 and 7.
14. Remove oil level dipstick
8.
15. Remove bolt and oil level dipstick guide
9.
16. Remove nine (9) bolts and Rectifier & regulator
0.
11. Disconnect cylinder temp sensor lead wire connector.
12. Disconnect CMP sensor connector, then remove bolt and
CMP sensor
5 from cylinder head.

Suzuki DF 90 Specifications

General

Steering	Remote
Starting System	Electric
Number of Cylinders	4
Trim Method	Power Trim and Tilt
Full Throttle Operating Range	5, 500 - 6, 300 rpm
Fuel System	Multi-point sequential electronic fuel injection
Ignition System	Fully-transistorized
Exhaust	Through Prop Hub Exhaust
Shaft Length	508 mm (20 in), 635 mm (25 in)
Fuel Type	Unleaded gasoline (87 octane or higher)
