Suzuki DF 90 Service Manual

7-14 MID UNIT

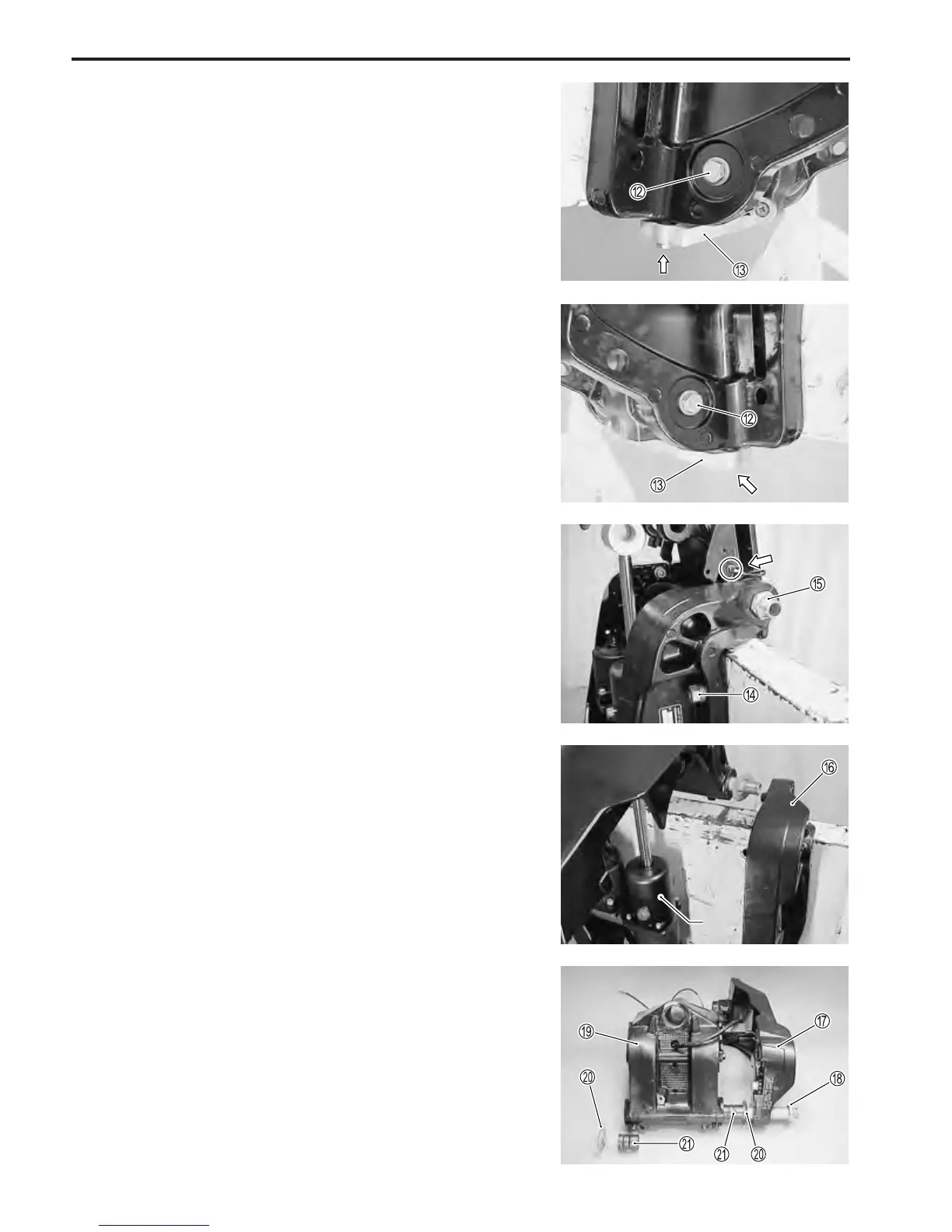

11. Remove STBD motor mounting bolts D.
12. Remove clamp bracket shaft nut E.
9. Remove tilt cylinder lower shaft bolts B.
10. Remove bolts and anode C.
PTT unit
PTT unit
PTT unit
13. Slide STBD clamp bracket F off clamp bracket shaft, then
remove screw and bonding wire from swivel bracket.
14. Remove PTT unit with lower rod.
15. Pull PORT clamp bracket G outward to remove clamp
bracket and bracket shaft H from swivel bracket I.
16. Remove washer J and bushing K from each side of swivel
bracket.

Suzuki DF 90 Specifications

General

Steering	Remote
Starting System	Electric
Number of Cylinders	4
Trim Method	Power Trim and Tilt
Full Throttle Operating Range	5, 500 - 6, 300 rpm
Fuel System	Multi-point sequential electronic fuel injection
Ignition System	Fully-transistorized
Exhaust	Through Prop Hub Exhaust
Shaft Length	508 mm (20 in), 635 mm (25 in)
Fuel Type	Unleaded gasoline (87 octane or higher)
