18-32

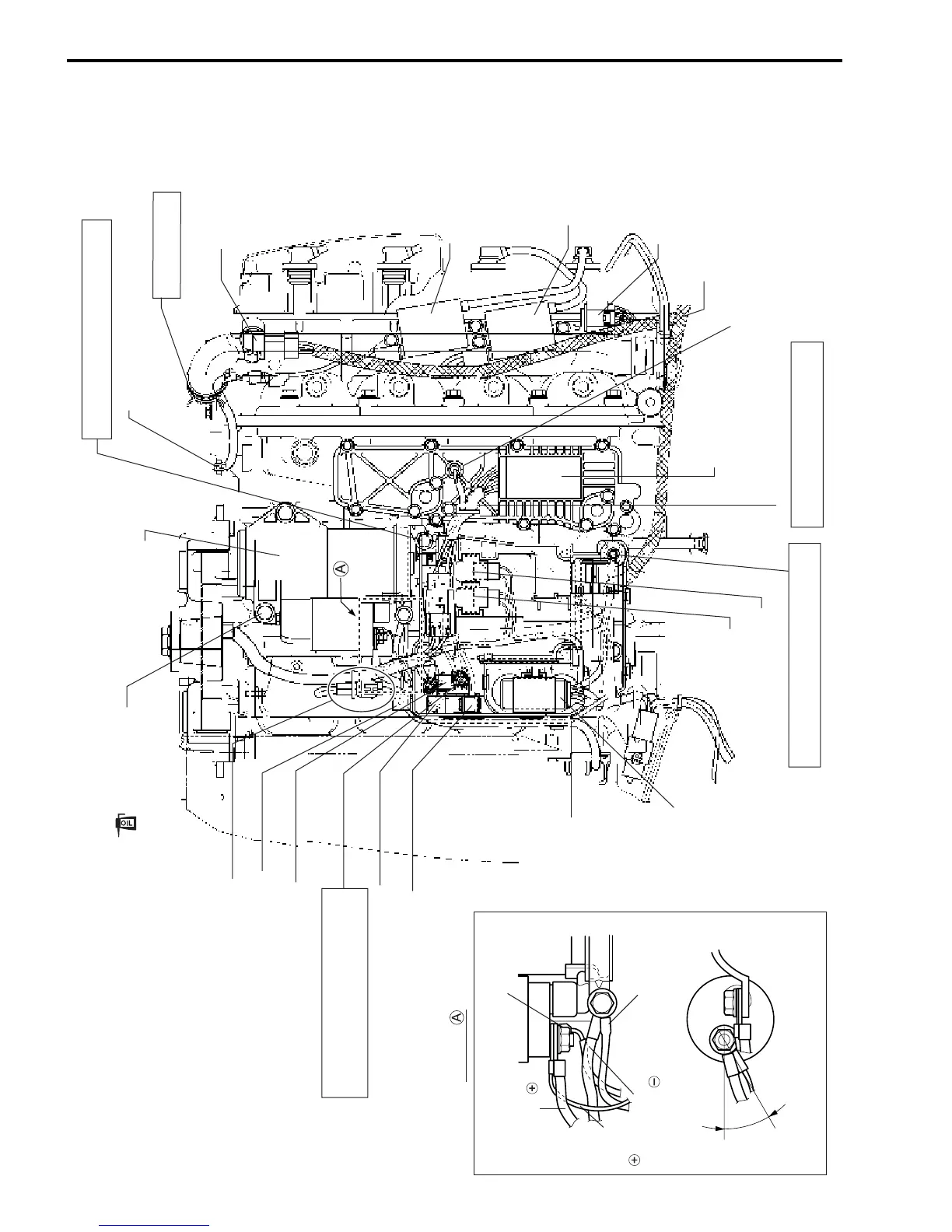

DF90/115/140 “K8” (’08) MODEL

Harness lead

wire GND

30˚

Starter magnetic

switch “S” terminal

ENGINE SIDE

Battery

cable

Harness

lead wire

Battery

cable

DETAIL

CMP sensor

Ignition coil No.1

Ignition coil No.2

Joint connector (10P)

Main harness

Exhaust manifold temp. sensor

Rectifier & regulator

Clamp

Fix rectifier & regulator lead wire

and temp. sensor lead wire.

Tighten bolt with PTT ground lead wire

and main harness ground lead wire.

ECM main relay

Starter relay

PTT relay

Battery cable

Sub fuse (30 A)

(with spare)

Tighten nut with rectifier & regulator

out put white lead and 30 A fuse

white lead wire.

Main fuse (60 A)

SDS communication connector/cap

Gauge connector

Starter motor bolt

Starter motor

Tighten bolt with starter motor band

and rect & regulator ground lead wire.

Cylinder temp. sensor

Clamp:

Fix cylinder temp.

sensor lead wire.

Spare main fuse

Questions and Answers:

Need help?

Do you have a question about the Suzuki DF 90 and is the answer not in the manual?

Suzuki DF 90 Specifications

General

Steering	Remote
Starting System	Electric
Number of Cylinders	4
Trim Method	Power Trim and Tilt
Full Throttle Operating Range	5, 500 - 6, 300 rpm
Fuel System	Multi-point sequential electronic fuel injection
Ignition System	Fully-transistorized
Exhaust	Through Prop Hub Exhaust
Shaft Length	508 mm (20 in), 635 mm (25 in)
Fuel Type	Unleaded gasoline (87 octane or higher)
