Suzuki Katana 1100 User Manual

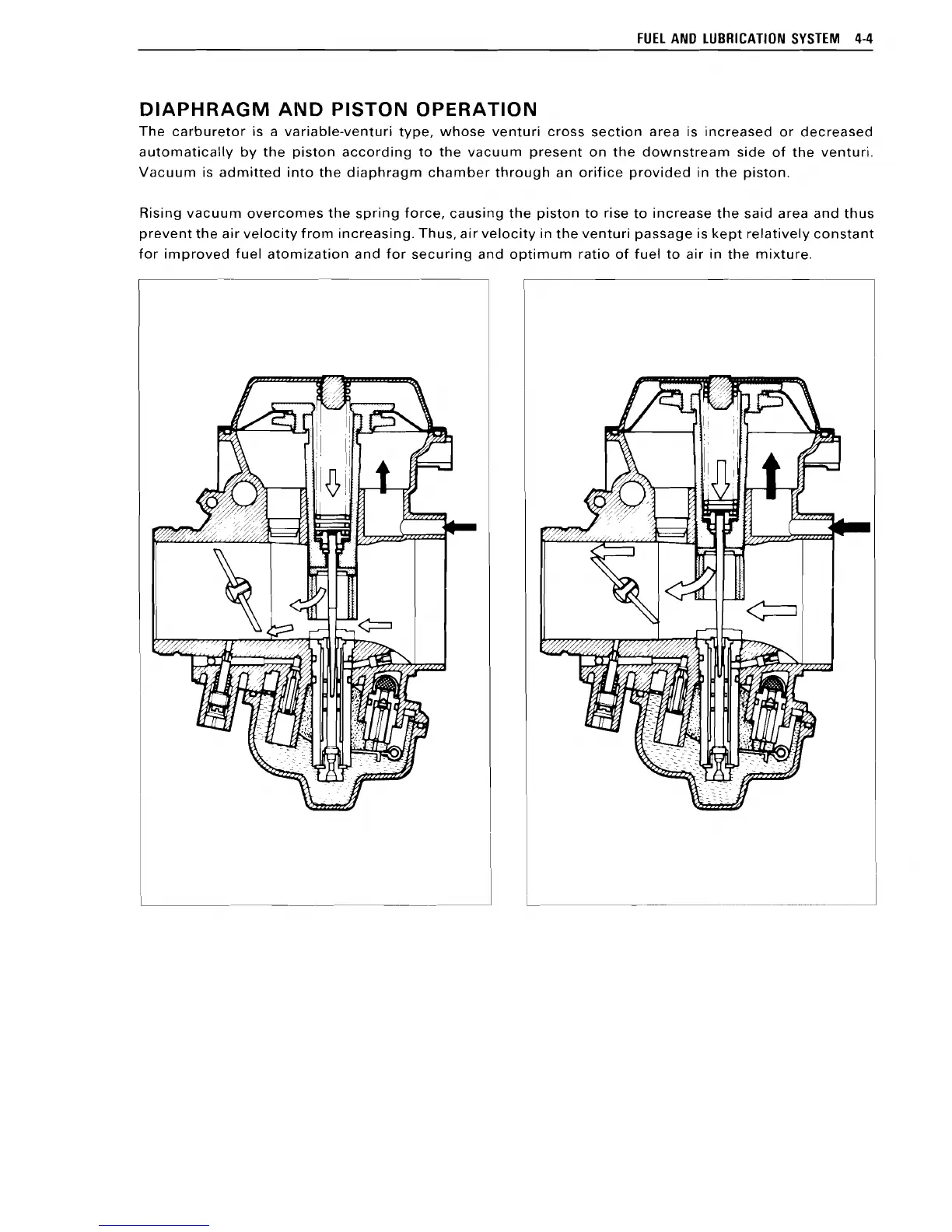

FUEL AND LUBRICATION SYSTEM 4-4
DIAPHRAGM AND PISTON OPERATION
The carburetor is a variable-venturi type, whose venturi cross section area is increased or decreased
automatically by the piston according to the vacuum present on the downstream side of the venturi.
Vacuum is admitted into the diaphragm chamber through an orifice provided in the piston.
Rising vacuum overcomes the spring force, causing the piston to rise to increase the said area and thus
prevent the air velocity from increasing. Thus, air velocity in the venturi passage is kept relatively constant
for improved fuel atomization and for securing and optimum ratio of fuel to air in the mixture.
~
-
J
L _
-
I

Suzuki Katana 1100 Specifications

General

Displacement	1074 cc
Bore x Stroke	72.0 mm x 66.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Wheelbase	1520 mm
Starting	Electric
Final Drive	Chain
Height	1170 mm
Transmission	5-speed
Rear Suspension	coil spring, oil damped
Front Brakes	Dual hydraulic disc
Fuel Capacity	19 liters
Max Power	111 hp @ 8, 500 rpm
Width	750 mm
