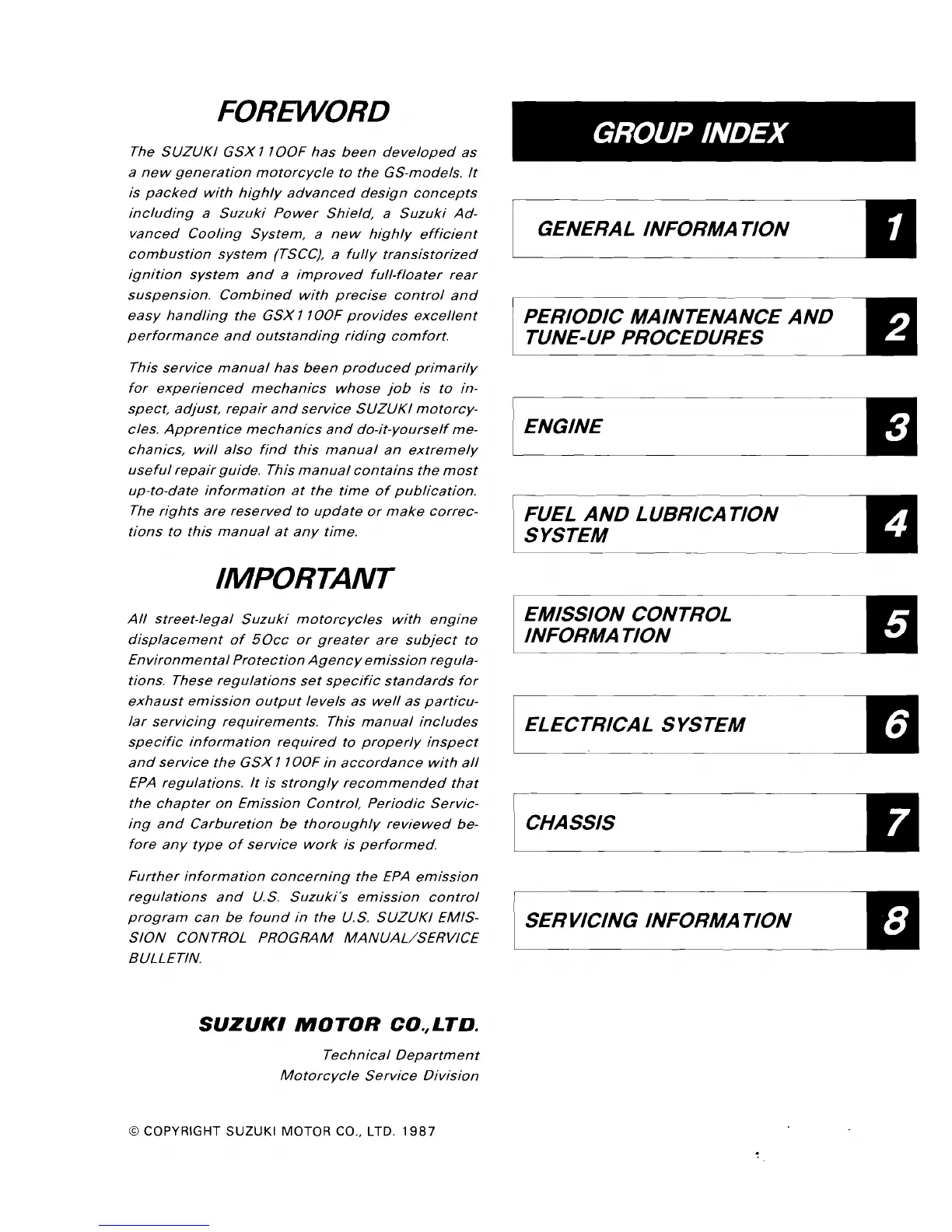

FOREWORD
The SUZUKI GSX 11 OOF has been developed as
a new generation motorcycle to the GS-models. It
is packed with highly advanced design concepts
including a Suzuki Power Shield, a Suzuki Ad-
vanced Cooling System, a new highly efficient
combustion system (TSCCl a fully transistorized
ignition system and a improved full-floater rear
suspension. Combined with precise control and
easy handling the GSX 1 100F provides excellent
performance and outstanding riding comfort.
This service manual has been produced primarily
for experienced mechanics whose job is to in-
spect, adjust, repair and service SUZUKI motorcy-
cles. Apprentice mechanics and do-it-yourself me-
chanics, will also find this manual an extremely
useful repair guide. This manual contains the most
up-to-date information at the time of publication.
The rights are reserved to update or make correc-
tions to this manual at any time.
IMPORTANT
All street-legal Suzuki motorcycles with engine
displacement of 50cc or greater are subject to
Environmental Protection Agency emission regula-
tions. These regulations set specific standards for
exhaust emission output levels as well as particu-
lar servicing requirements. This manual includes
specific information required to properly inspect
and service the GSX 1 1OOF in accordance with all
EPA regulations. It is strongly recommended that
the chapter on Emission Control, Periodic Servic-
ing and Carburetion be thoroughly reviewed be-
fore any type of service work is performed.
Further information concerning the EPA emission
regulations and Us. Suzuki's emission control
program can be found in the Us. SUZUKI EMIS-
SION CONTROL PROGRAM MANUAL/SERVICE
BULLETIN.
SUZUKI MOTOR CO., LTD.
Technical Department
Motorcycle Service Division
© COPYRIGHT SUZUKI MOTOR CO., LTD. 1987
GROUP INDEX
===- GENERAL INFORMA TION
fERIODIC MAINTENANCE AND --..
TUNE-UP PROCEDURES ~
ENGINE
IJ
I FUEL AND LUBRICATION
SYSTEM
II
17MISSION CONTROL
INFORMA TION
~
I ELECTRICAL SYSTEM
a
[CHASSIS
1&
SERVICING INFORMATION
I
L
_lfJ

Suzuki Katana 1100 Specifications

General

Displacement	1074 cc
Bore x Stroke	72.0 mm x 66.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Wheelbase	1520 mm
Starting	Electric
Final Drive	Chain
Height	1170 mm
Transmission	5-speed
Rear Suspension	coil spring, oil damped
Front Brakes	Dual hydraulic disc
Fuel Capacity	19 liters
Max Power	111 hp @ 8, 500 rpm
Width	750 mm
