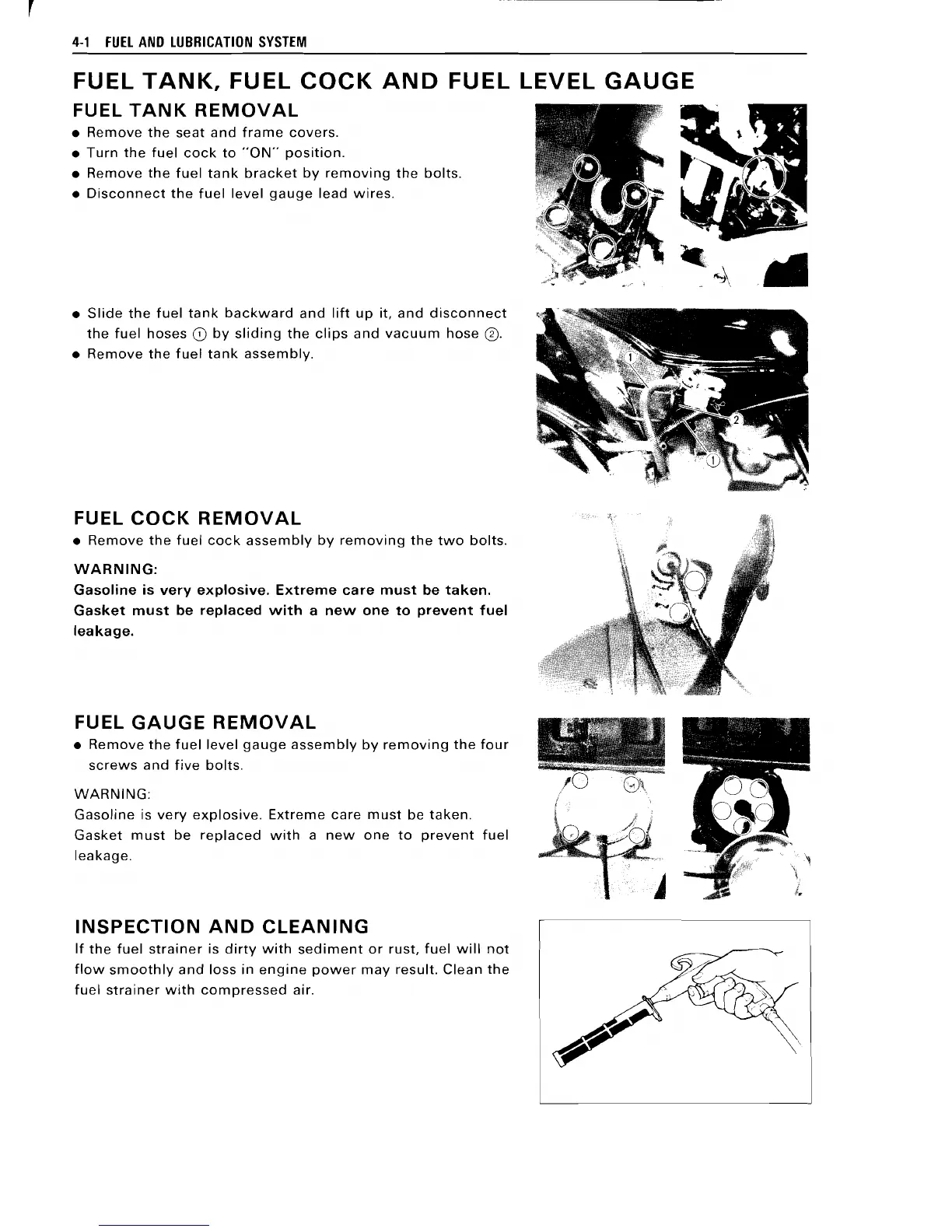

4-1 FUEL AND LUBRICATION SYSTEM
FUEL TANK, FUEL COCK AND FUEL LEVEL GAUGE
FUEL TANK REMOVAL
• Remove the seat and frame covers.
• Turn the fuel cock to "ON" position.
• Remove the fuel tank bracket by removing the bolts.
• Disconnect the fuel level gauge lead wires.
• Slide the fuel tank backward and lift up it, and disconnect
the fuel hoses CD by sliding the clips and vacuum hose 0.
• Remove the fuel tank assembly.
FUEL COCK REMOVAL
• Remove the fuel cock assembly by removing the two bolts.
WARNING:
Gasoline is very explosive. Extreme care must be taken.
Gasket must be replaced with a new one to prevent fuel
leakage.
FUEL GAUGE REMOVAL
• Remove the fuel level gauge assembly by removing the four
screws and five bolts.
WARNING:
Gasoline is very explosive. Extreme care must be taken.
Gasket must be replaced with a new one to prevent fuel
leakage.
INSPECTION AND CLEANING
If the fuel strainer is dirty with sediment or rust, fuel will not
flow smoothly and loss in engine power may result. Clean the
fuel strainer with compressed air.

Suzuki Katana 1100 Specifications

General

Displacement	1074 cc
Bore x Stroke	72.0 mm x 66.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Wheelbase	1520 mm
Starting	Electric
Final Drive	Chain
Height	1170 mm
Transmission	5-speed
Rear Suspension	coil spring, oil damped
Front Brakes	Dual hydraulic disc
Fuel Capacity	19 liters
Max Power	111 hp @ 8, 500 rpm
Width	750 mm
