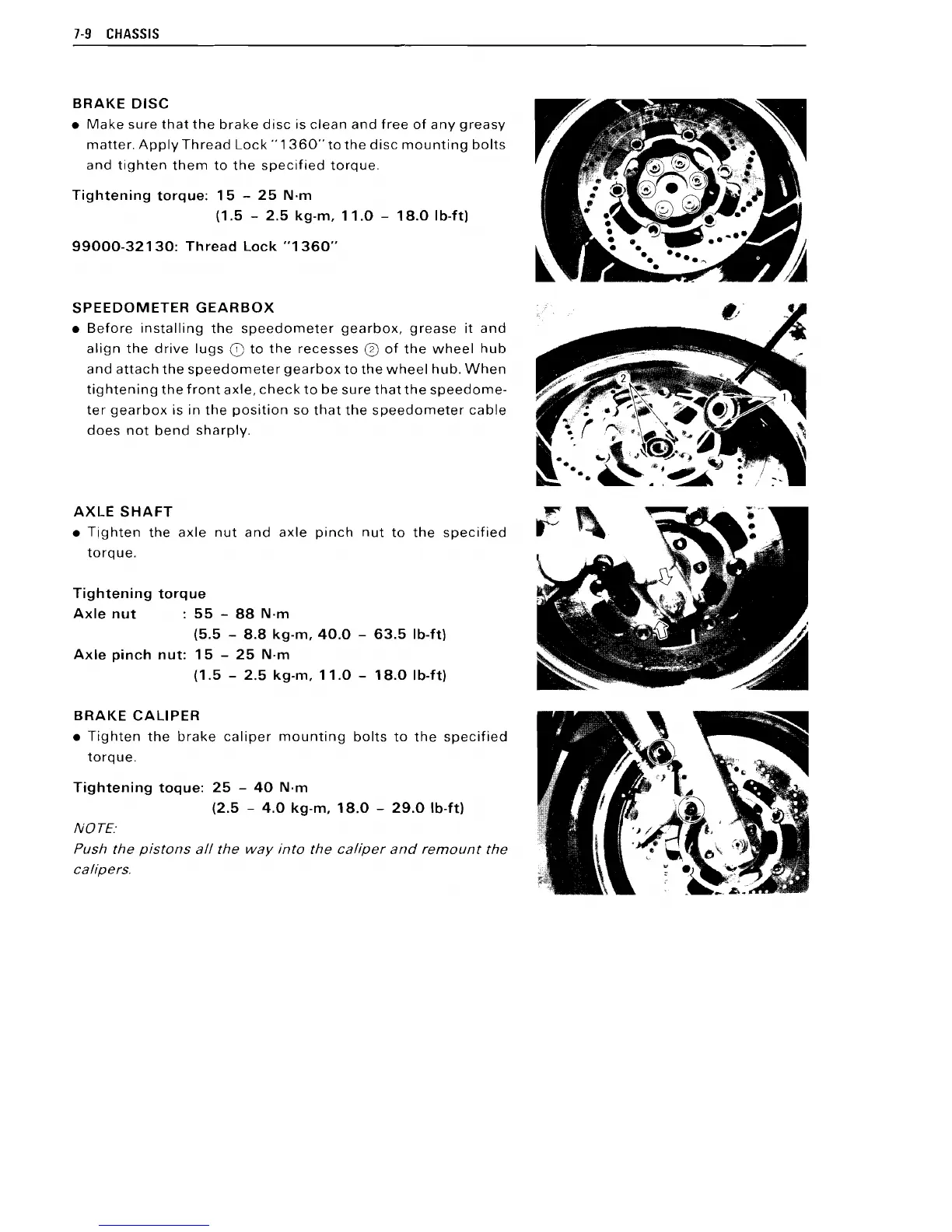

7-9 CHASSIS
BRAKE DISC
• Make sure that the brake disc is clean and free of any greasy
matter. Apply Thread Lock "'360" to the disc mounting bolts
and tighten them to the specified torque.
Tightening torque: 15 - 25 N·m
(1.5 - 2.5 kg-m, 11.0 - 18.0 Ib-ft)
99000-32130: Thread Lock "1360"
SPEEDOMETER GEARBOX
• Before installing the speedometer gearbox, grease it and
align the drive lugs (i) to the recesses ® of the wheel hub
and attach the speedometer gearbox to the wheel hub. When
tightening the front axle, check to be sure that the speedome-
ter gearbox is in the position so that the speedometer cable
does not bend sharply.
AXLE SHAFT
• Tighten the axle nut and axle pinch nut to the specified
torque.
Tightening torque
Axle nut 55 - 88 N·m
(5.5 - 8.8 kg-m, 40.0 - 63.5 Ib-ft)
Axle pinch nut: 15 - 25 N·m
(1.5 - 2.5 kg-m, 11.0 - 18.0 Ib-ftl
BRAKE CALIPER
• Tighten the brake caliper mounting bolts to the specified
torque.
Tightening toque: 25 - 40 N·m
(2.5 - 4.0 kg-m, 18.0 - 29.0 Ib-ftl
NOTE:
Push the pistons all the way into the caliper and remount the
calipers.
