FUEL
AND
LUBRICATION
SYSTEM
4-8
FUEL
SYSTEM
When
turning
starter
motor,
negative
pressure
is
generated
in
the
combustion
chamber.
This
negative
pressure
works
on
the
diaphram
of
fuel
cock
through
passageway
provided
in
the
carburetor
main
bore
and
vacuum
pipe,
and
diaphragm
builds
up
a
negative
pressure
which
is
higher
than
the
spring
pressure.
Fuel
valve
is
forced
to
open
due
to
diaphragm
operation,
and
thus
allows
fuel
to
flow
into
carburetor
float
chamber.

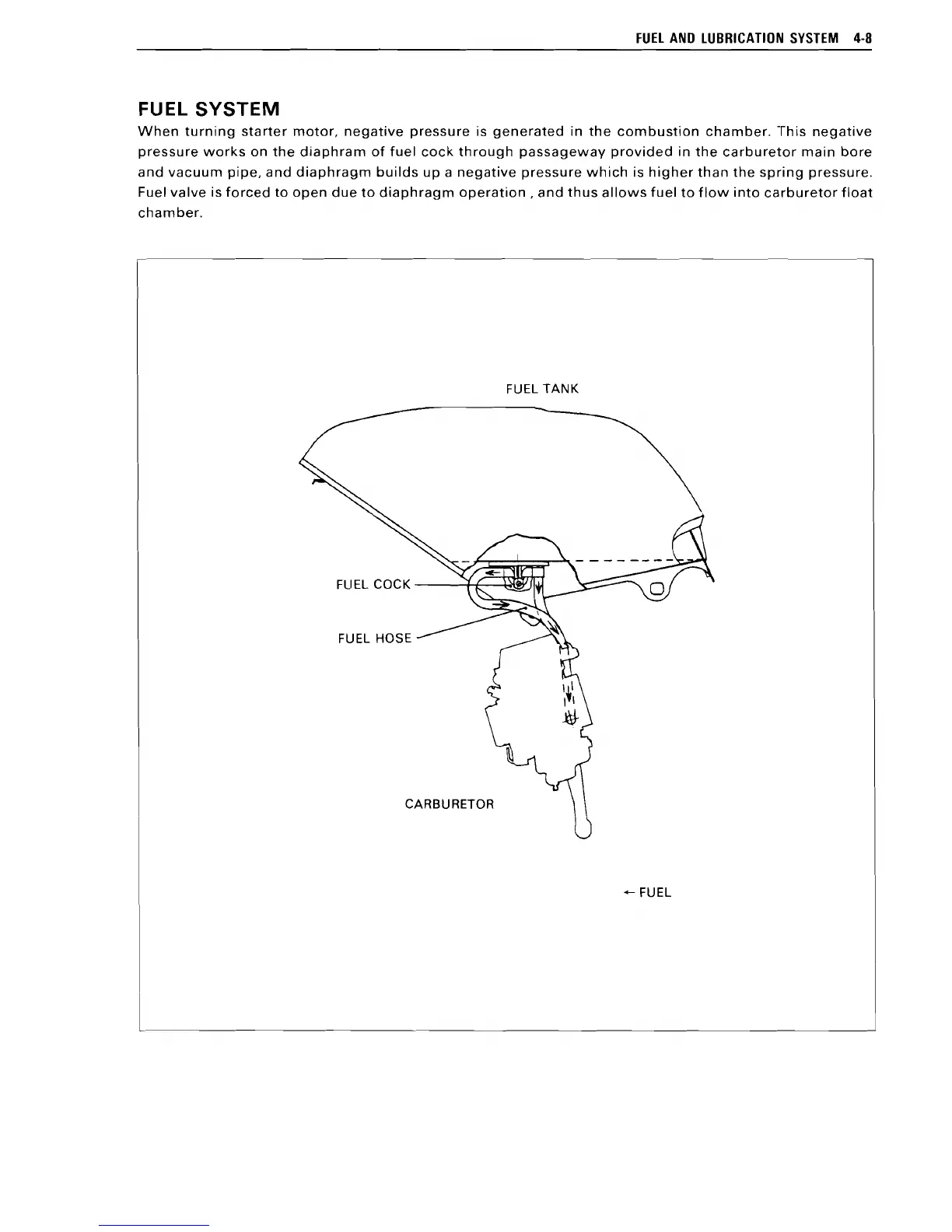

FUEL
TANK
FUEL HOSE
CARBURETOR
+-
FUEL
